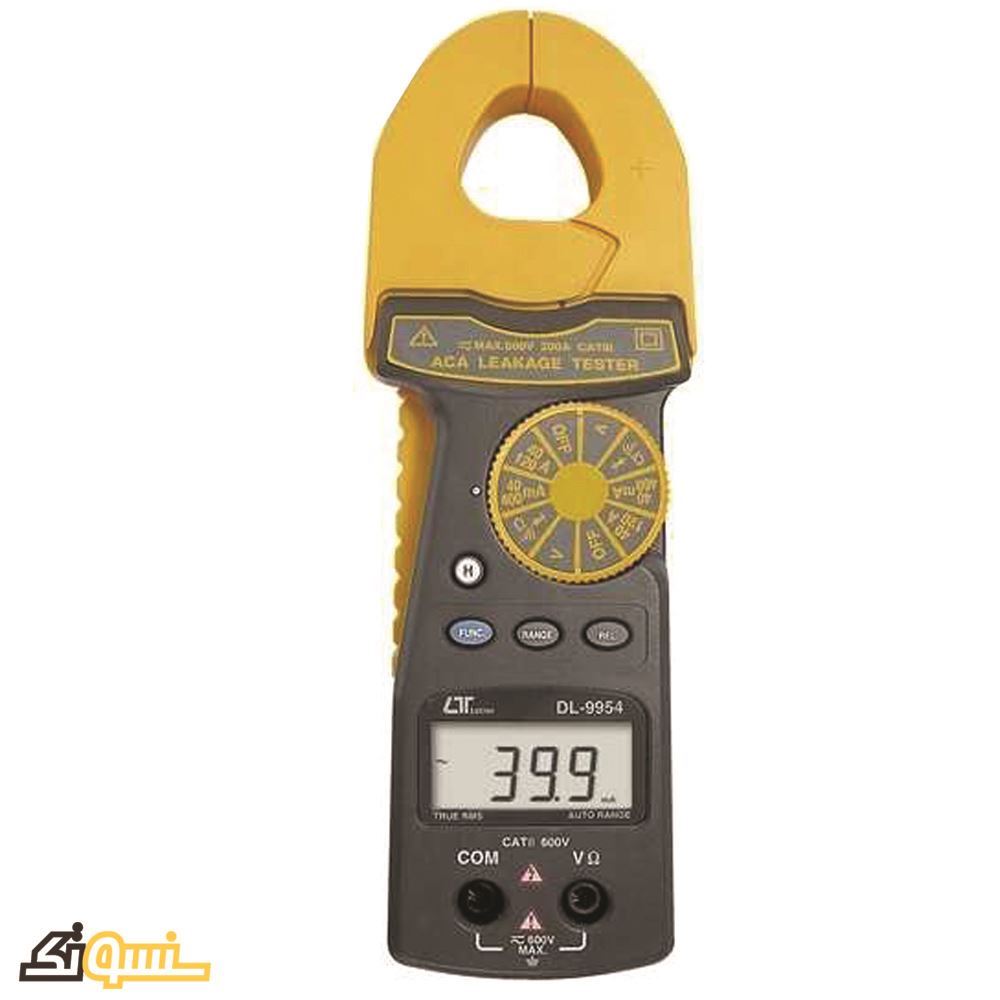

DL-9954 ACA LEAKAGE TESTER

High precision mA leakage measurement.
ACA 40 mA x 0.01 mA
ACA 400 mA x 0.1 mA
ACA 40 A, 120 A.
Manufacturer: Lutron
ریال

ACA LEAKAGE TESTER DL-9954

FEATURES

High precision mA leakage
measurement.
ACA 40 mA x 0.01 mA
ACA 400 mA x 0.1 mA
ACA 40 A, 120 A.
True RMS
AC voltage, DC voltage,Ohms, Diode, Continuitybeeper, hold.
LCD display.
DC 1.5V battery ( UM-3, AA )
x 2 PCs.

GENERAL SPECIFICATIONS
Display 10.8 mm ( 0.39" ) LCD, 3 1/2 digits,Max. indication 4000. 40 A 0.01 A
Measurement ACA, ACV, DCV, Ohms, Diode, Range Continuity beeper, Relative.

ACA, ACV frequency response is from 40 to 1 KHz.
Sampling Time Approx. 0.35 second.

ACA, ACV specification be tested on sine wave 50/60 Hz.
Battery 2 x 1.5 V AA ( UN-3 ) batteries.
Operating 0 to 50 ℃ ( 32 to 122 ℉ ).
Temperature lution Protection
Operating Humidity Less than 80% RH.
Weight 251 g/0.55 LB ( including battery ).
Dimension HWD : 191 x 64.5 x 36.1 mm
Max. Jaw oPEN Size: 22.3 mm ( 0.88 inch ) Dia.

ACA LEAKAGE TESTER DL-9954

FEATURES

High precision mA leakage
measurement.
ACA 40 mA x 0.01 mA
ACA 400 mA x 0.1 mA
ACA 40 A, 120 A.
True RMS
AC voltage, DC voltage,Ohms, Diode, Continuitybeeper, hold.
LCD display.
DC 1.5V battery ( UM-3, AA )
x 2 PCs.

GENERAL SPECIFICATIONS
Display 10.8 mm ( 0.39" ) LCD, 3 1/2 digits,Max. indication 4000. 40 A 0.01 A
Measurement ACA, ACV, DCV, Ohms, Diode, Range Continuity beeper, Relative.

ACA, ACV frequency response is from 40 to 1 KHz.
Sampling Time Approx. 0.35 second.

ACA, ACV specification be tested on sine wave 50/60 Hz.
Battery 2 x 1.5 V AA ( UN-3 ) batteries.
Operating 0 to 50 ℃ ( 32 to 122 ℉ ).
Temperature lution Protection
Operating Humidity Less than 80% RH.
Weight 251 g/0.55 LB ( including battery ).
Dimension HWD : 191 x 64.5 x 36.1 mm
Max. Jaw oPEN Size: 22.3 mm ( 0.88 inch ) Dia.

Products specifications
Producer LUTRON
Made in Taiwan
device type Portable
Display screen 10.8 mm ( 0.39" ) LCD, 3 1/2 digits
Sampling rate Approx. 0.35 second.
Powered by 2 x 1.5 V AA ( UN-3 ) batteries.
Working temperature 0 to 50 ℃
Working humidity Less than 80% RH.
قطر خارجی 22.3 mm ( 0.88 inch ) Dia.
Leakage current 0.1 to 400 mA
AC Current 0.01 to 120 A
DC voltage 400 mV
AC voltage 600 V
Range of resistance measurements 40 M ohm
Dimensions 191 x 64.5 x 36.1 mm
Weight 251g
