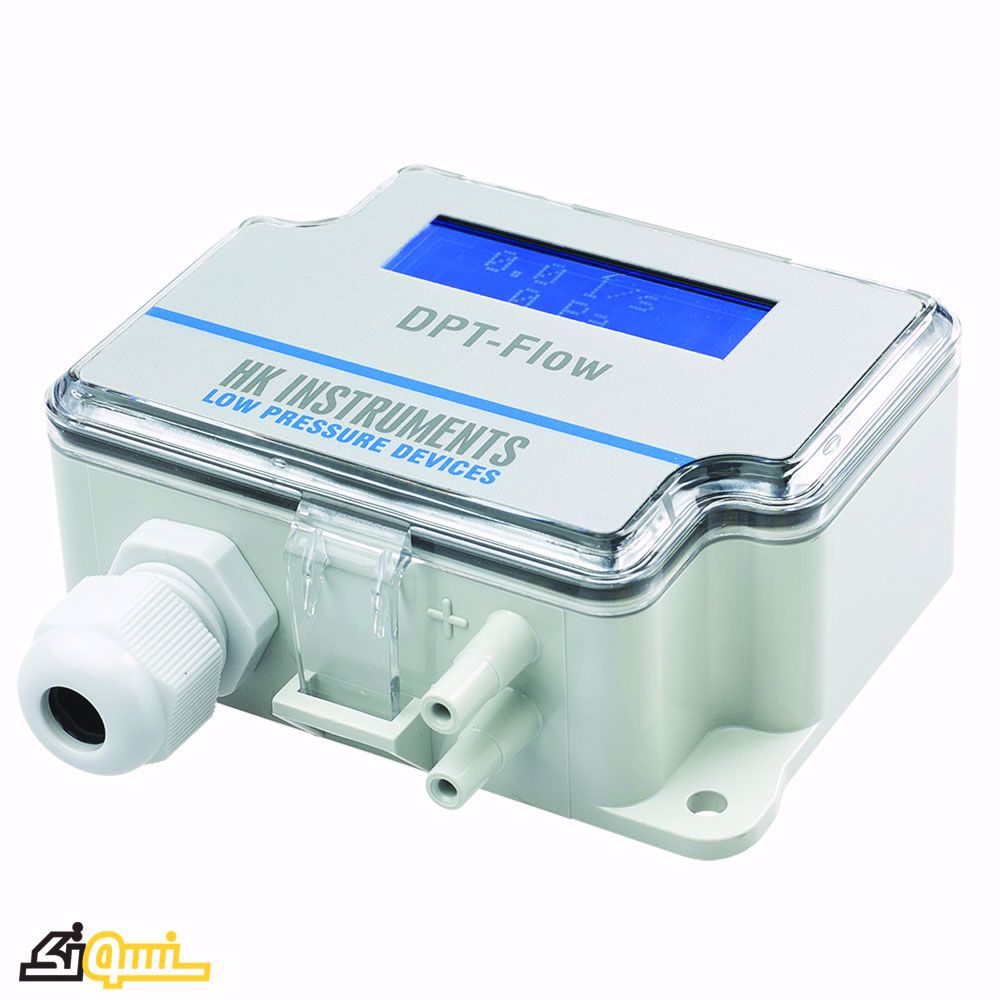

DPT-Flow flow transmitter

Output signals for pressure and air flow
0-10VDC
4-20mA
Availability: Out of stock
Manufacturer: HK INSTRUMENTS
ریال

DPT-Flow flow transmitter is suitable for a range of different fan types. DPT Flow transmitter also provides an easy way to measure flow rate in a duct system. The device is supplied with an optional FloXactTM averaging measurement probe.The DPT-Flow is designed for air handling units to measure the air flow on centrifugal fans. The DPT-Flow can be used as an on-site display for flow or as a transmitter to regulate the air flow on a selected fan or blower.

Specifications:

Accuracy (models 1000 and 2000):

Pressure < 125 Pa = 1 % + ±2 Pa
Pressure > 125 Pa = 1 % + ±1 Pa

Accuracy (models 5000 and 7000):

Pressure < 125 Pa = 1.5 % + ±2 Pa
Pressure > 125 Pa = 1.5 % + ±1 Pa

Measuring units:

Pressure: Pa, kPa, mbar, inchWC, mmWC, psi
Flow: m3/s, m3/hr, cfm, l/s, m/s, ft/min

Control signal:

0…10 V or 4…20 mA (selectable by jumper)



DPT-Flow flow transmitter is suitable for a range of different fan types. DPT Flow transmitter also provides an easy way to measure flow rate in a duct system. The device is supplied with an optional FloXactTM averaging measurement probe.The DPT-Flow is designed for air handling units to measure the air flow on centrifugal fans. The DPT-Flow can be used as an on-site display for flow or as a transmitter to regulate the air flow on a selected fan or blower.

Specifications:

Accuracy (models 1000 and 2000):

Pressure < 125 Pa = 1 % + ±2 Pa
Pressure > 125 Pa = 1 % + ±1 Pa

Accuracy (models 5000 and 7000):

Pressure < 125 Pa = 1.5 % + ±2 Pa
Pressure > 125 Pa = 1.5 % + ±1 Pa

Measuring units:

Pressure: Pa, kPa, mbar, inchWC, mmWC, psi
Flow: m3/s, m3/hr, cfm, l/s, m/s, ft/min

Control signal:

0…10 V or 4…20 mA (selectable by jumper)



Products specifications
Attribute name Attribute value
Producer HK INSTRUMENTS
Made in Finland
device type Transmitter
Powered by 24VDC/VAC
Power <1W
Voltage Output 0-10V
Current Output 4-20mA
Working temperature min:-10,max:+50 °C
درجه حفاظت(Ip) IP54
