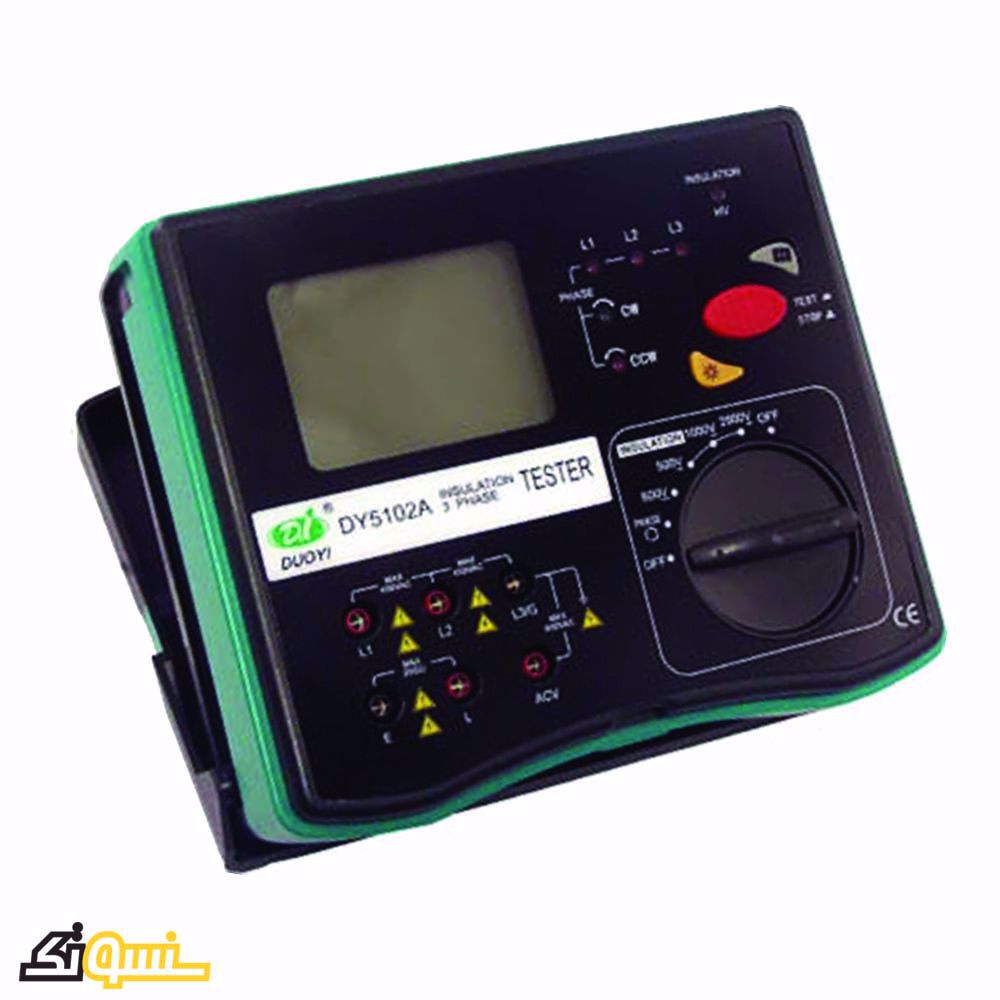

DY5102A Insulation 3 Phase Tester

Testing Voltage:500/1000V/2500V
Insulation Resistance:0.1~20GΩ
Manufacturer: DUOYI
ریال

DY5102A Insulation 3 Phase Tester measure insulation resistance to 20GΩ.DY-5102A Insulation Tester Measure insulation resistance to 200GΩ with 0.01mΩ resolution.

Features:

Three test voltages, measure insulation resistance to 20GΩ

Measure insulation resistance to 200GΩ with 0.01mΩ resolution

AC voltage measurement to 600V

Check phase sequence and phase status

Data hold, auto range, auto power off, LCD background light

Complete with test leads, phase wire, heavy duty carry case and six 1.5V AA batteries

DY5102A Insulation 3 Phase Tester measure insulation resistance to 20GΩ.DY-5102A Insulation Tester Measure insulation resistance to 200GΩ with 0.01mΩ resolution.

Features:

Three test voltages, measure insulation resistance to 20GΩ

Measure insulation resistance to 200GΩ with 0.01mΩ resolution

AC voltage measurement to 600V

Check phase sequence and phase status

Data hold, auto range, auto power off, LCD background light

Complete with test leads, phase wire, heavy duty carry case and six 1.5V AA batteries

Products specifications
Producer DUOYI
Made in China
device type Portable
Insulation voltage 500/1000/2500V
Insulation resistance range 0.1Ω~20GΩ
AC voltage 700V
Powered by AA1.5Vx8
Dimensions 190x155x75mm
Weight 900g
