Insulation Tester GM3123

Voltage: 250V/500V/1000V/2500V
Testing Range:2500V:0.0~99.9GΩ
DC/AC Testing: 30~600V
Availability: Out of stock
Manufacturer: Benetech
ریال

Benetech GM3123 Professional Digital Resistance Tester 2500V High Tension Megger AC Voltage Insulation

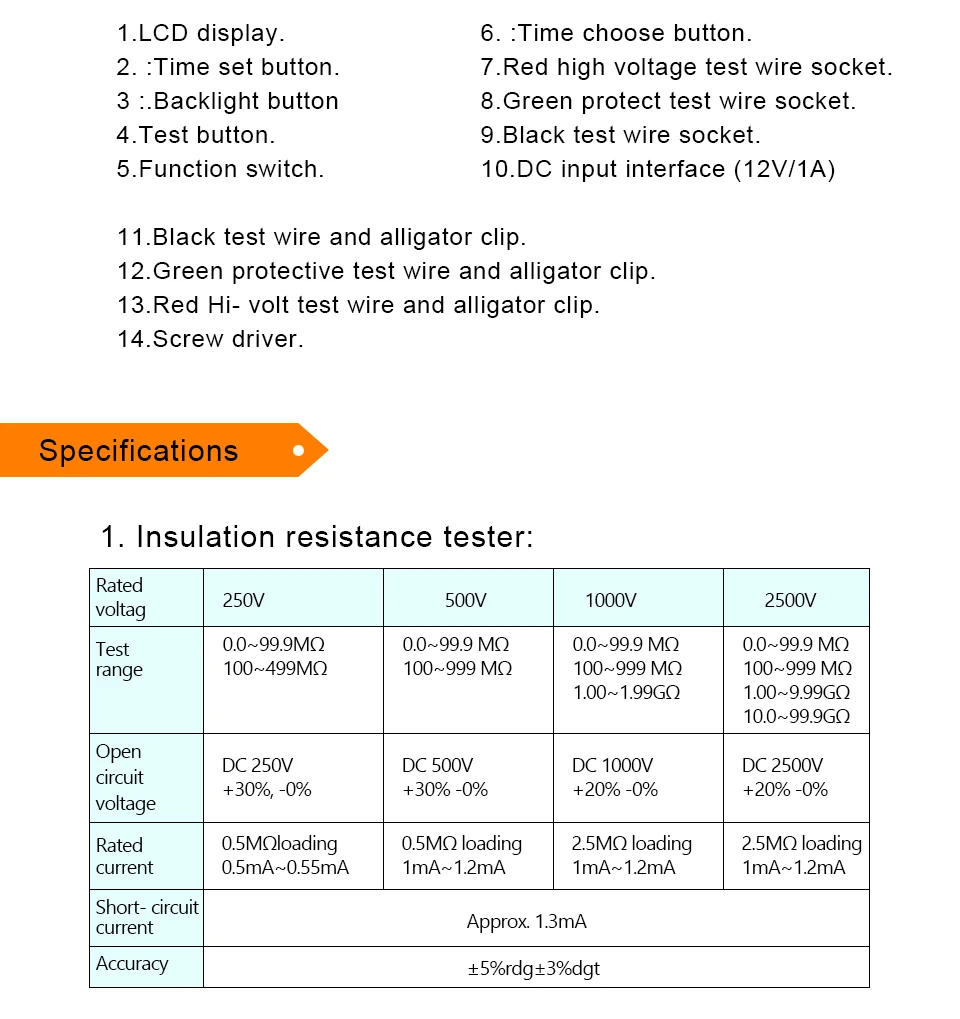

Specification:

Model- GM3123

Rated Voltage: 250V/500V/1000V/2500V

Testing Range: 250V:0.0~499MΩ;500V:0.0~999MΩ;1000V:0.0~19.9GΩ;2500V:0.0~99.9GΩ

Accuracy: ±5%rdg

DC/AC Testing: 30~600V

Resolution: 1.0V

Overload Protection: AC 1200V/10

Withstand Voltage: AC8320V/5

Insulation Resistance: 1000MΩ/DC1000V

Short Circuit Current: 1.3mA

Operation Voltage: 12V

Power supply:8 * 1.5V LR14 Battery(not included)

Auto discharge function to make the operation safe

Live circuit warning symbols with audio sounds

Auto power off function (in 10 minutes without operation)

Timer measurement function

Low battery indication

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

Benetech GM3123 Professional Digital Resistance Tester 2500V High Tension Megger AC Voltage Insulation

Specification:

Model- GM3123

Rated Voltage: 250V/500V/1000V/2500V

Testing Range: 250V:0.0~499MΩ;500V:0.0~999MΩ;1000V:0.0~19.9GΩ;2500V:0.0~99.9GΩ

Accuracy: ±5%rdg

DC/AC Testing: 30~600V

Resolution: 1.0V

Overload Protection: AC 1200V/10

Withstand Voltage: AC8320V/5

Insulation Resistance: 1000MΩ/DC1000V

Short Circuit Current: 1.3mA

Operation Voltage: 12V

Power supply:8 * 1.5V LR14 Battery(not included)

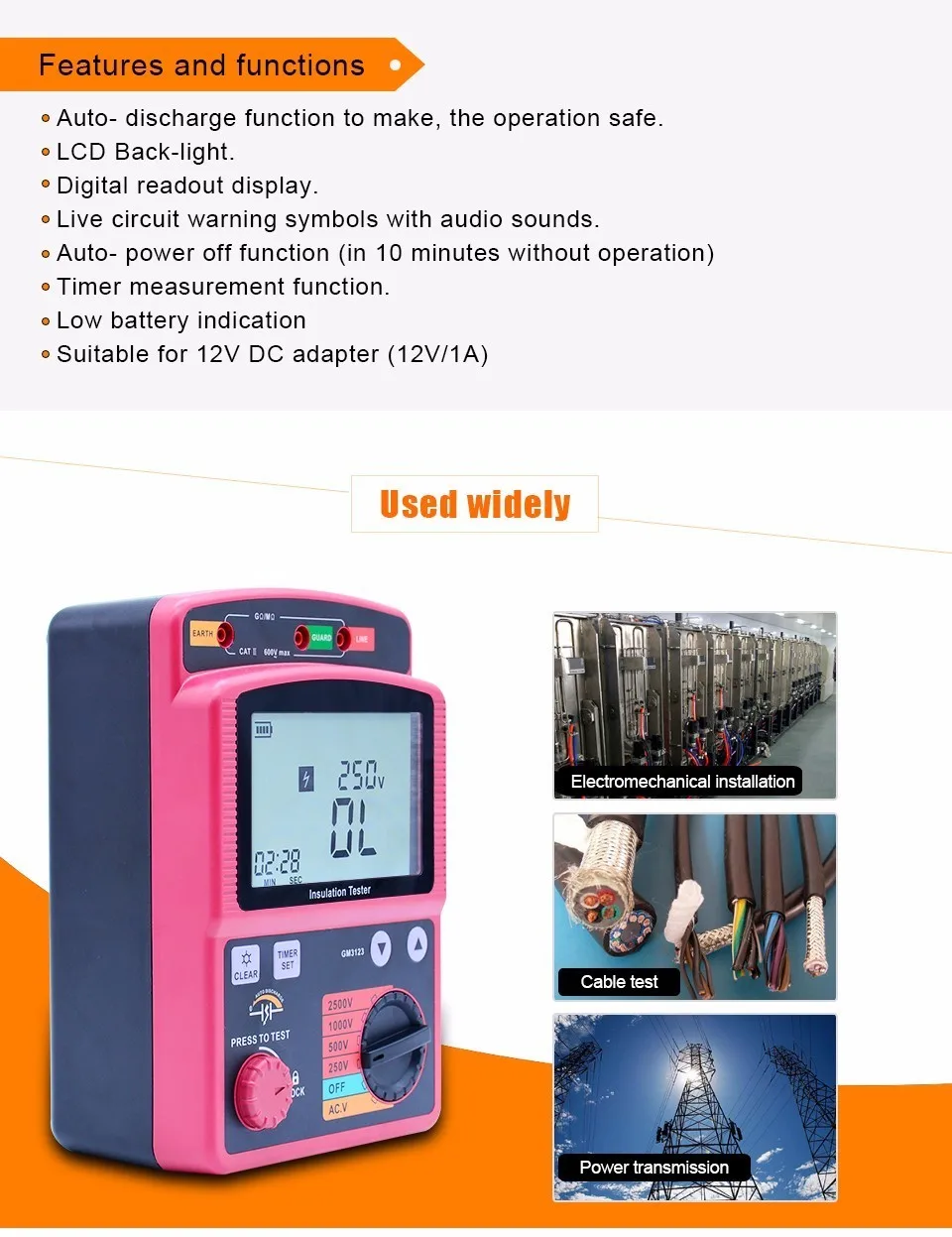

Auto discharge function to make the operation safe

Live circuit warning symbols with audio sounds

Auto power off function (in 10 minutes without operation)

Timer measurement function

Low battery indication

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

Products specifications
Attribute name Attribute value
Producer Benetech
Made in China
device type Portable
Insulation voltage 250V/500V/1000V/2500V
Insulation resistance range 2500V:0.0~99.9GΩ
short circuit current 1.3mA
Powered by 8 * 1.5V LR14 Battery
Dimensions 220*153*96mm
Weight 1105g
