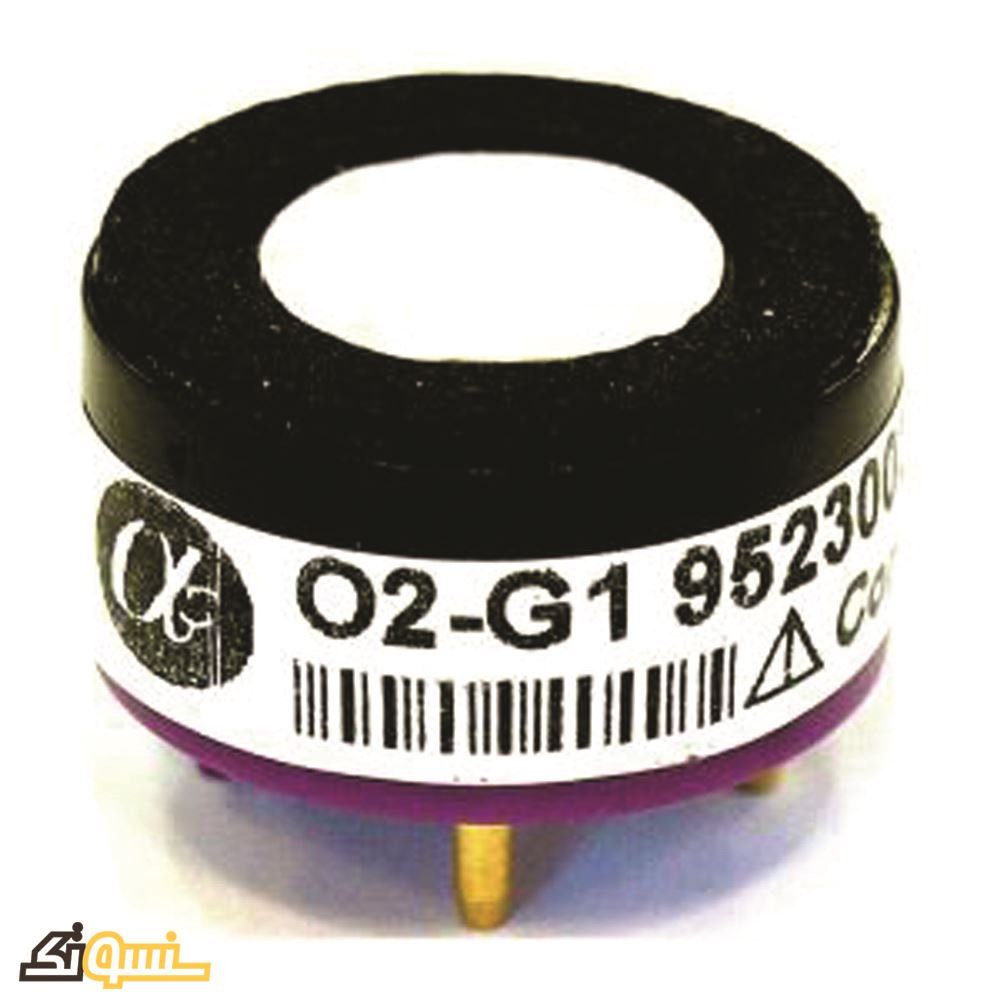

O2-G1 Oxygen Sensor

Output: 65 to 85 μA @ 22℃, 20.9% O2
Response time t90: < 18 (s) from 20.9% to 0% O2
Manufacturer: alphasense
ریال

Alphasense O2-G1 Oxygen Sensor use capillary flow control.Unlike partial pressure oxygen sensors, they have good pressure and temperature dependence, making them the best choice in safety applications.O2-G1 Oxygen Sensor price is available in sensotec website.

O2-G1 Oxygen Sensor Key Features & Benefits:
Small Footprint
Reduced Height
Low Weight
Good Connectivity: Uses industry standard, low cost, Molex sockets for direct board insertion.
Reduced Costs: High quality design with a significant reduction in the cost per measured gas, allied to reduced manufacturing costs are passed on to OEMs

Specifications:

O2-G1 Oxygen Sensor (O2 Sensor) PERFORMANCE

Output μA @ 22℃, 20.9% O2 65 to 85
Response time t90 (s) from 20.9% to 0% O2 (47W load resistor) < 18
Zero current μA @ 99.999% N 2 , 22℃ < 2.5

O2-G1 Oxygen Sensor (O2 Sensor) LIFETIME
Output drift % change in output @ 3 months < 2
Operating life months until 85% original output in 20.9% O2 > 12

O2-G1 Oxygen Sensor (O2 Sensor) ENVIRONMENTAL
Humidity sensitivity % O2  change: 0% to 95% rh @ 40℃ < 0.7
CO2  sensitivity % change in output / % CO2  @ 5% CO2 + 0.1
Pressure sensitivity (% change of output)/(% change of pressure) @ 20kPa < 0.1
Output at -20℃ % output/output at 20℃ in 20.9% O2 87 to 93
Output at +50℃ % output/output at 20℃ in 20.9% O2 103 to 107

O2-G1 Oxygen Sensor (O2 Sensor) KEY SPECIFICATIONS
Temperature range -30 to 55
Pressure range kPa 80 to 120
Humidity range % rh continuous (0 to 99% rh short term) 5 to 95
Storage period months @ 3 to 20℃ (store in sealed container)  6
Load resistor Ω  (recommended) 47 to 100
Weight g <7





Alphasense O2-G1 Oxygen Sensor use capillary flow control.Unlike partial pressure oxygen sensors, they have good pressure and temperature dependence, making them the best choice in safety applications.O2-G1 Oxygen Sensor price is available in sensotec website.

O2-G1 Oxygen Sensor Key Features & Benefits:
Small Footprint
Reduced Height
Low Weight
Good Connectivity: Uses industry standard, low cost, Molex sockets for direct board insertion.
Reduced Costs: High quality design with a significant reduction in the cost per measured gas, allied to reduced manufacturing costs are passed on to OEMs

Specifications:

O2-G1 Oxygen Sensor (O2 Sensor) PERFORMANCE

Output μA @ 22℃, 20.9% O2 65 to 85
Response time t90 (s) from 20.9% to 0% O2 (47W load resistor) < 18
Zero current μA @ 99.999% N 2 , 22℃ < 2.5

O2-G1 Oxygen Sensor (O2 Sensor) LIFETIME
Output drift % change in output @ 3 months < 2
Operating life months until 85% original output in 20.9% O2 > 12

O2-G1 Oxygen Sensor (O2 Sensor) ENVIRONMENTAL
Humidity sensitivity % O2  change: 0% to 95% rh @ 40℃ < 0.7
CO2  sensitivity % change in output / % CO2  @ 5% CO2 + 0.1
Pressure sensitivity (% change of output)/(% change of pressure) @ 20kPa < 0.1
Output at -20℃ % output/output at 20℃ in 20.9% O2 87 to 93
Output at +50℃ % output/output at 20℃ in 20.9% O2 103 to 107

O2-G1 Oxygen Sensor (O2 Sensor) KEY SPECIFICATIONS
Temperature range -30 to 55
Pressure range kPa 80 to 120
Humidity range % rh continuous (0 to 99% rh short term) 5 to 95
Storage period months @ 3 to 20℃ (store in sealed container)  6
Load resistor Ω  (recommended) 47 to 100
Weight g <7





Products specifications
Producer alphasense
Made in England
device type Sensor
Sensor Type O2
Current Output 65 to 85 μA @ 22℃, 20.9% O2
Working temperature -30 to 55 ℃
Working humidity 5 to 95 % rh
Response time t90: < 18 (s) from 20.9% to 0% O2
Weight <7g
