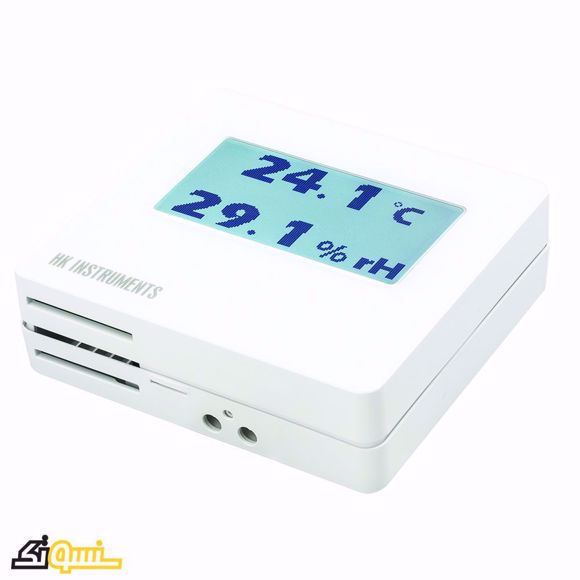

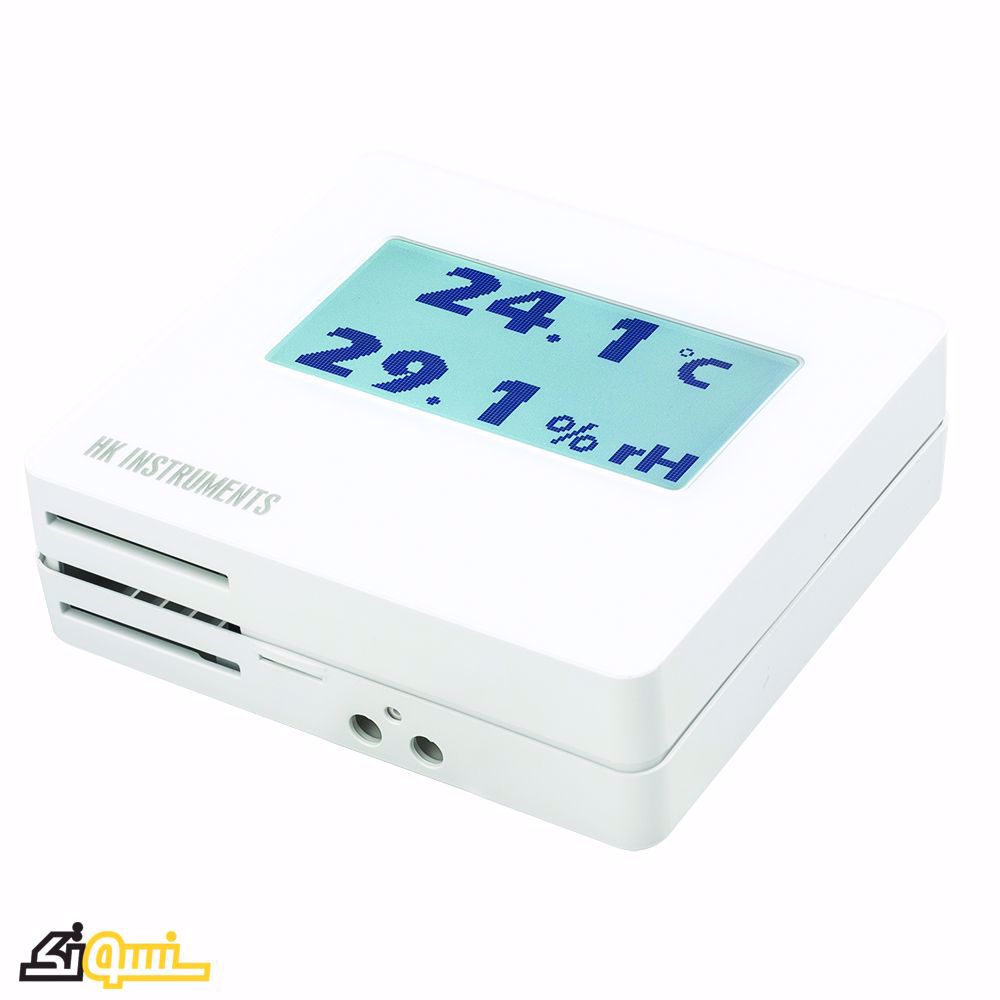

RHT Humidity transmitter

output voltage:0–10 V
output current :4–20 mA
Temperature accurary: <0.5 °C
Relative humidity accurary: ±2-3 % rH at 0-50 °C
ریال

RHT relative humidity transmitters are engineered for building automation systems in the HVAC/R industry. The RHT measures relative humidity (rH), and temperature (T). RHT transmitter Price is available in sensotec website.

Specifications:

Separate field configurable output for each measurement parameter (rH and T)

Proportional output options including: voltage (0–10 V, 2–10 V) and current (4–20 mA)

Optional relay output and Modbus communication

Measurement elements:

Pt1000 temperature sensor

thermoset polymer capacitive sensing element for humidity

Operating temperature:0-50C

Protection standard:IP20









RHT relative humidity transmitters are engineered for building automation systems in the HVAC/R industry. The RHT measures relative humidity (rH), and temperature (T). RHT transmitter Price is available in sensotec website.

Specifications:

Separate field configurable output for each measurement parameter (rH and T)

Proportional output options including: voltage (0–10 V, 2–10 V) and current (4–20 mA)

Optional relay output and Modbus communication

Measurement elements:

Pt1000 temperature sensor

thermoset polymer capacitive sensing element for humidity

Operating temperature:0-50C

Protection standard:IP20









Products specifications
Producer HK INSTRUMENTS
Made in Finland
device type Transmitter
Sensor Type Temperature & Humidity
Current Output 4-20mA
Voltage Output 0-10V
Powered by 24 VDC/VAC
Working temperature 0-50°C
درجه حفاظت(Ip) IP20
