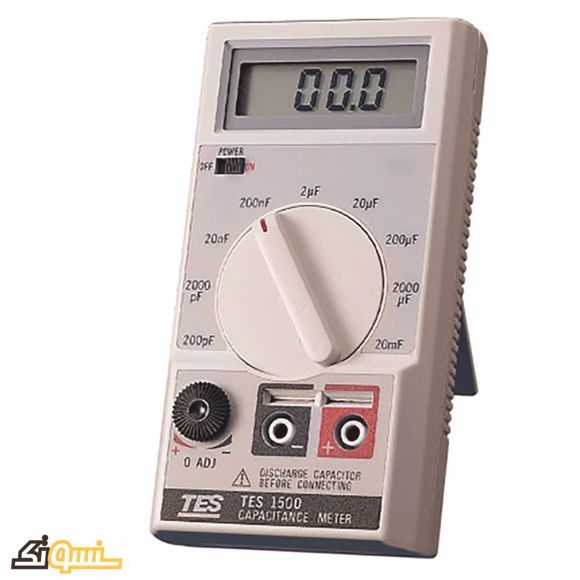

TES-1500 Capacitance Meter

Capacitance Range
200pF/2n/200n/2µF/20µF/200µF/2mF/20mF
0.5% Accuracy.
Overload Protection:0.25A/250 Fuse Protection
Manufacturer: TES
ریال

TES-1500 Capacitance Meter measures capacitance from 200pF up to 20mF.Capacitance Meter model TES-1500 price is available in sensotec website.

Features:

0.5% Accuracy.
Overload Fuse protection.
Test Clips/Direct insert jack for easy measurement.

Range

Resolution

Accuracy

Max. In-range Display

Test Frequency

Overload Protection

200pF 0.1pF +/- (0.5%+1+0.5pF) 199.9pF 800Hz 0.25A/250 Fuse Protection
2nF 1pF +/- (0.5%+1) 1.999nF 800Hz 0.25A/250 Fuse Protection
20nF 10pF +/- (0.5%+1) 19.99nF 800Hz 0.25A/250 Fuse Protection
200nF 100pF +/- (0.5%+1) 199.9nF 800Hz 0.25A/250 Fuse Protection
2 m F 1nF +/- (0.5%+1) 1.999 m F 800Hz 0.25A/250 Fuse Protection
20 m F 10nF +/- (0.5%+1) 19.99 m F 80Hz 0.25A/250 Fuse Protection
200 m F 100nF +/- (0.5%+1) 199.9 m F 8Hz 0.25A/250 Fuse Protection
2000 m F 1 m F +/- (1%+1) 1999 m F 8Hz 0.25A/250 Fuse Protection
20mF
(20000 m F)
10 m F +/- (2%+1) 19.99mF 8Hz 0.25A/250 Fuse Protection



TES-1500 Capacitance Meter measures capacitance from 200pF up to 20mF.Capacitance Meter model TES-1500 price is available in sensotec website.

Features:

0.5% Accuracy.
Overload Fuse protection.
Test Clips/Direct insert jack for easy measurement.

Range

Resolution

Accuracy

Max. In-range Display

Test Frequency

Overload Protection

200pF 0.1pF +/- (0.5%+1+0.5pF) 199.9pF 800Hz 0.25A/250 Fuse Protection
2nF 1pF +/- (0.5%+1) 1.999nF 800Hz 0.25A/250 Fuse Protection
20nF 10pF +/- (0.5%+1) 19.99nF 800Hz 0.25A/250 Fuse Protection
200nF 100pF +/- (0.5%+1) 199.9nF 800Hz 0.25A/250 Fuse Protection
2 m F 1nF +/- (0.5%+1) 1.999 m F 800Hz 0.25A/250 Fuse Protection
20 m F 10nF +/- (0.5%+1) 19.99 m F 80Hz 0.25A/250 Fuse Protection
200 m F 100nF +/- (0.5%+1) 199.9 m F 8Hz 0.25A/250 Fuse Protection
2000 m F 1 m F +/- (1%+1) 1999 m F 8Hz 0.25A/250 Fuse Protection
20mF
(20000 m F)
10 m F +/- (2%+1) 19.99mF 8Hz 0.25A/250 Fuse Protection



Products specifications
Producer TES
Made in Taiwan
device type Portable
Capacitor Measuring Range 200pF/2nF/20nF/200nF/2mF/20mF/200mF/2000mF
Working temperature 0°C to 40°C
Working humidity < 80% R.H.
Storage temperature -10°C to 60°C
Storage humidity < 70% R.H.
Powered by 006P DC 9V 1pc
Dimensions 135mm(L) x 72mm(W) x 33mm(H)
Weight 207g
