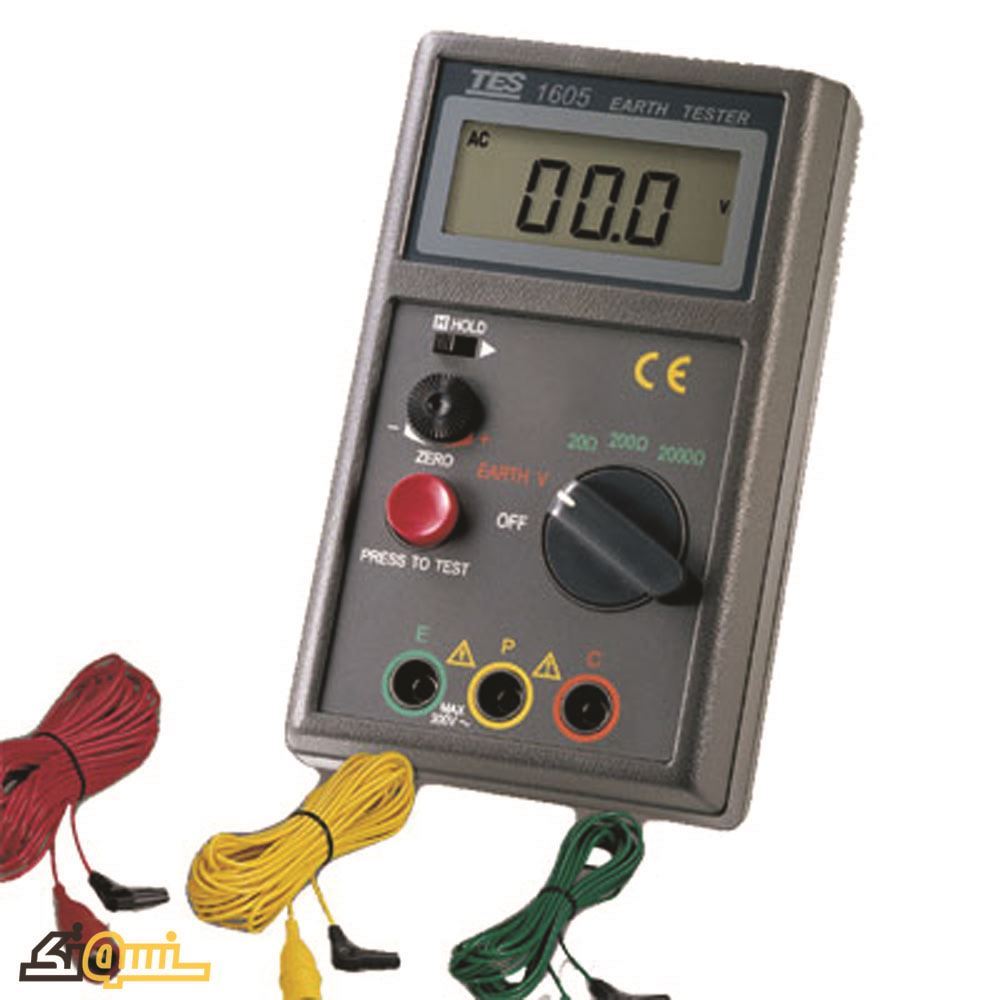

TES-1605 Digital Earth Tester

Earth Voltage:0 ~ 199.9V (50Hz, 60Hz)
Earth Resistance:
0 ~ 19.99 Ω
0 ~ 199.9 Ω
0 ~ 1999 Ω
Availability: Out of stock
Manufacturer: TES
40,500,000 ریال
ریال

TES-1605 Digital Earth Tester

Features:

Capable of measuring earth voltage.

Data hold function.

Auto power off function:
The timer operates automatically about 3 minutes when the " Test Button Switch " are pressed to keep the tester power on.

2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.

In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories.

Automatic warning when resistance of auxiliary earth spike is in excess of tolerance.

Designed to meet IEC1010-1 safety standard.

Zero ohm adjustment.

Measuring Range and Accuracy ( at 23 ℃ and 45-75%RH )
Function
Measuring range
Accuracy
Overload Protection
Earth Voltage
0 ~ 199.9V (50Hz, 60Hz)
+/- (1%rdg+4dgts)

300Vrms / 1 minute

Earth Resistance
0 ~ 19.99 Ω
+/- (2%rdg+0.2 Ω )

200Vrms / 10 seconds

0 ~ 199.9 Ω
+/- (2%rdg+3dgts)
0 ~ 1999 Ω
Current Consumption ( typical Value with battery voltage of 9V )
Range
ON

20 Ω / 200 Ω /2000 Ω

35mA

Earth V

18mA

General Specification

TES-1605 Digital Earth Tester

Features:

Capable of measuring earth voltage.

Data hold function.

Auto power off function:
The timer operates automatically about 3 minutes when the " Test Button Switch " are pressed to keep the tester power on.

2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.

In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories.

Automatic warning when resistance of auxiliary earth spike is in excess of tolerance.

Designed to meet IEC1010-1 safety standard.

Zero ohm adjustment.

Measuring Range and Accuracy ( at 23 ℃ and 45-75%RH )
Function
Measuring range
Accuracy
Overload Protection
Earth Voltage
0 ~ 199.9V (50Hz, 60Hz)
+/- (1%rdg+4dgts)

300Vrms / 1 minute

Earth Resistance
0 ~ 19.99 Ω
+/- (2%rdg+0.2 Ω )

200Vrms / 10 seconds

0 ~ 199.9 Ω
+/- (2%rdg+3dgts)
0 ~ 1999 Ω
Current Consumption ( typical Value with battery voltage of 9V )
Range
ON

20 Ω / 200 Ω /2000 Ω

35mA

Earth V

18mA

General Specification
Products specifications
Attribute name Attribute value
Producer TES
Made in Taiwan
device type Portable
Display screen 3 1/2 digit liquid crystal display with a maximum reading of 1999.
Working temperature 0 ℃ to 40 ℃ (32 ℉ to 104 ℉ F)
Working humidity below 80% RH.
Storage temperature -10 ℃ to 60 ℃
Battery AA, R – 6P or equivalent–> 6 Pcs
Powered by DC 9V (6′ 1.5V size “AA” battery or equivalent).
Ground voltage 0 ~ 199.9V (50Hz, 60Hz)
Earth resistance 20 Ω / 200 Ω /2000 Ω
Accuracy 2%rdg+0.2 Ω )+/-:20 Ω, (2%rdg+3dgts) +/-:200 Ω /2000 Ω
Dimensions 165 x 100 x 57mm
Weight Approx. 500g (with battery).
