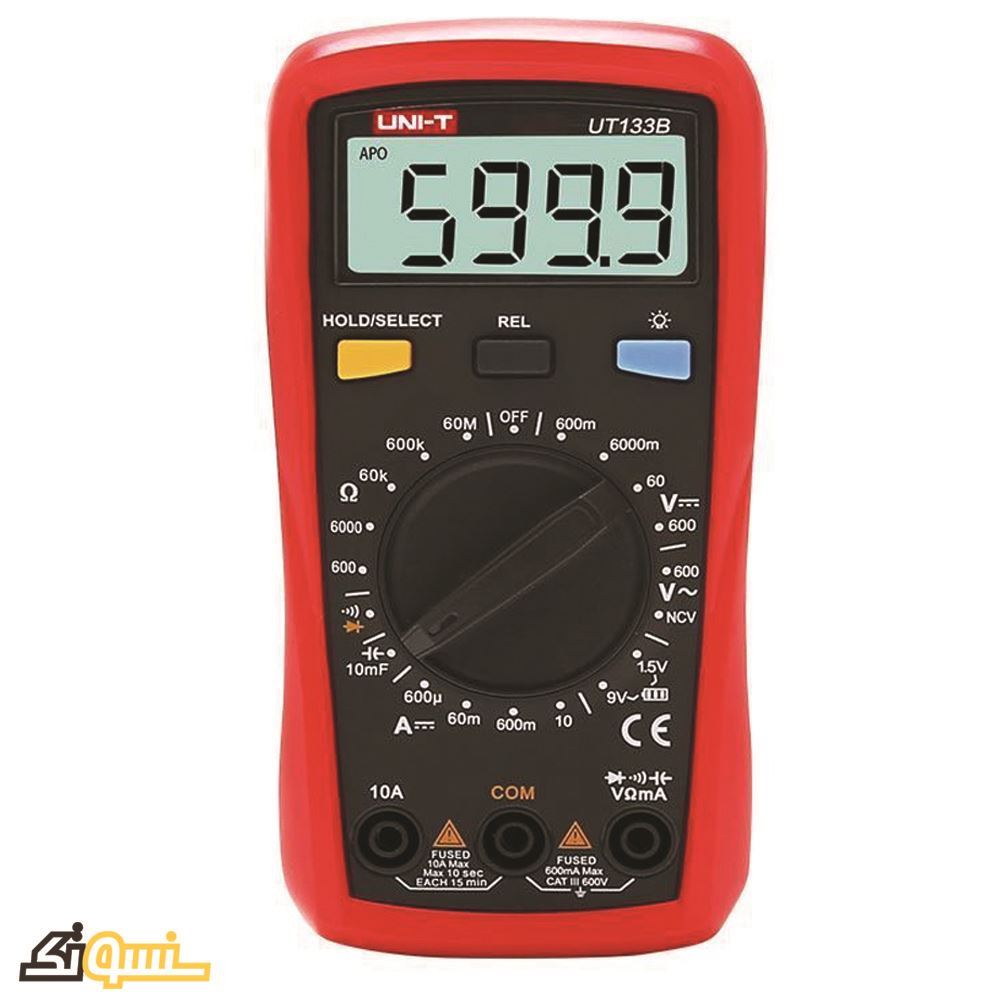

UT133B Multimeter

DC voltage (V):600mV/6V/60V/600V
AC voltage (V):600V
DC current (A):10A
Resistance (Ω):600Ω/60MΩ
Capacitance (F) 9.999nF/ 9.999mF
Manufacturer: Uni-Trend
ریال

UT133B Palm Size Multimeter

UT133B is a palm size multimeter adopting intellectual ADC chip. It provides overload alarm as well as electricity protection. It is a professional device designed for electric industry.

features

1. Smart appearance with comfortable handle

2. Pass 2-meter drop test

3. Large LCD screen with 6000 counts display, true RMS measurement, fast ADC digital converter (4 times/s)

4. Overload protection with alert

5. Extensive range for capacitance measurement, short response time

6. Support NCV and battery measurements

7. Support up to 600V/10A AC/DC current and voltage measurements

8. Backlight installed for dim occasions

9. Energy saving



Specifications UT133B
DC voltage (V) 600mV/6V/60V/600V
AC voltage (V) 600V
DC current (A) 600uA/60mA/600mA/10A
Resistance (Ω) 600Ω/6kΩ/60kΩ/600kΩ/60MΩ
Capacitance (F) 9.999nF, 99.99nF~999.9μF, 9.999mF
Features
Battery test 1.5V, 9V
Max display 5999
NCV
Manual range
LCD backlight
Test probe holder
Data hold
Low battery indication
General characteristics
Power AAA 1.5V×2
LCD Size 56.8mm x 36.1mm
DMM Size 175mm x 83mm x 50mm
DMM weight 255g (with batteries)
Safety level CATⅢ 600V
Certifications CE, ETL



UT133B Palm Size Multimeter

UT133B is a palm size multimeter adopting intellectual ADC chip. It provides overload alarm as well as electricity protection. It is a professional device designed for electric industry.

features

1. Smart appearance with comfortable handle

2. Pass 2-meter drop test

3. Large LCD screen with 6000 counts display, true RMS measurement, fast ADC digital converter (4 times/s)

4. Overload protection with alert

5. Extensive range for capacitance measurement, short response time

6. Support NCV and battery measurements

7. Support up to 600V/10A AC/DC current and voltage measurements

8. Backlight installed for dim occasions

9. Energy saving



Specifications UT133B
DC voltage (V) 600mV/6V/60V/600V
AC voltage (V) 600V
DC current (A) 600uA/60mA/600mA/10A
Resistance (Ω) 600Ω/6kΩ/60kΩ/600kΩ/60MΩ
Capacitance (F) 9.999nF, 99.99nF~999.9μF, 9.999mF
Features
Battery test 1.5V, 9V
Max display 5999
NCV
Manual range
LCD backlight
Test probe holder
Data hold
Low battery indication
General characteristics
Power AAA 1.5V×2
LCD Size 56.8mm x 36.1mm
DMM Size 175mm x 83mm x 50mm
DMM weight 255g (with batteries)
Safety level CATⅢ 600V
Certifications CE, ETL



Products specifications
Producer UNI-T
Made in Taiwan
device type Portable
Display screen LCD Display with max 6000
DC voltage 600mV/6000mV/60V/600V
AC voltage 600V
DC Current 600uA/60mA/600mA/10A
Range of resistance measurements 600Ω/6000Ω/60kΩ/600kΩ/60MΩ
Capacitor Measuring Range 9.999nF/9.999mF
Powered by AAA 1.5V x 2
Dimensions 155mm x 76.5mm x 49mm
Weight 255g (with batteries)
