الکترود PH,ORP,COND مدل ID4520T

دسترسی: موجود نیست
تولید کننده: EZDO
ریال

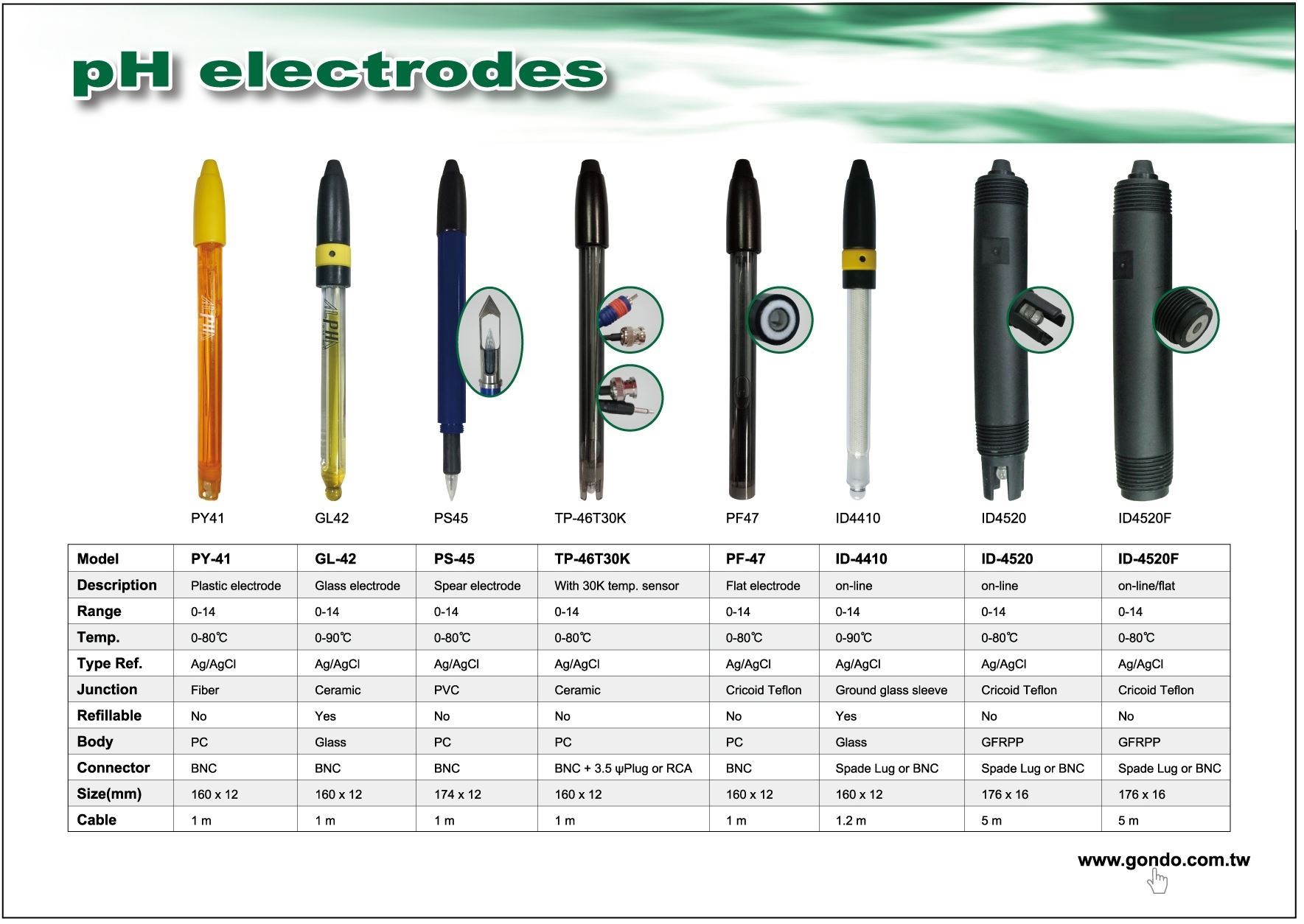

Sepcifications

pH  Model Range Temp. Type Ref.  Junction Refillable Body Connector Size(mm) Cable
PB 40 0-14 0-80℃ Ag/AgCl Ceramic No PC BNC 165x12 1 m
PY 41 0-14 0-80℃ Ag/AgCl Ceramic No PC BNC 160x12 1 m
GL 42 0-14 0-90℃ Ag/AgCl Ceramic Yes Glass BNC 155x12 1 m
GL 43 0-14 0-90℃ Ag/AgCl Ceramic Yes Glass BNC 155x12 1 m
TP 46P(w/Pt100) 0-14 0-80℃ Ag/AgCl Ceramic No PC BNC+3.5φPlug 160x12 1 m
TP 46T(w/Thermistor) 0-14 0-80℃ Ag/AgCl Ceramic No PC BNC+3.5φPlug 160x12 1 m
PF 47 0-14 5-80℃ Ag/AgCl Cricoid Teflon No PVC BNC 106x15 1 m
ID 4410 0-14 5-90℃ Ag/AgCl Ground glass sleeve No Glass Spade Lug 160x12 1.2 m
ID 4420R 0-14 5-90℃ Ag/AgCl Ground glass sleeve Yes Glass Spade Lug 160x12 5 m
ID 4510 0-14 5-90℃ Ag/AgCl Ground glass sleeve No Glass Spade Lug 155x12 1 m
ID 4520 0-14 0-80℃ Ag/AgCl Cricoid Teflon No PPS Spade Lug 176x16 5 m
ID 4520F 0-14 0-80℃ Ag/AgCl Cricoid Teflon No PPS Spade Lug 176x16 5 m
Holder Material: PVC Size: 230 x 38 mm(for 4510 & 4511)



  ORP   Model Range  Temp.   Type Ref.  Junction  Refillable  Body  Connector   Size(mm)  Cable
PO 50  ±1500mV  0-80℃ Ag/AgCl Ceramic No PC BNC 160x12 1 m
GO 51 ±1500mV 0-80℃ Ag/AgCl Ceramic Yes Glass BNC 160x12 1 m
ID 4511 ±1500mV 5-90℃ Ag/AgCl Ground glass sleeve No Glass Spade Lug 155x12 1 m
ID 4521 ±1500mV 0-80℃ Ag/AgCl Cricoid Teflon No PPS Spade Lug 176x16 5 m



  Cell   Model  Range   Temp.   Type Ref.   Junction   Refillable   Body   Connector  Size(mm) Cable
CD 60 K=1.0 0-90℃ N/A Pt plate N/A Glass BNC 155x12 1 m
CD 60P(w/Pt100) K=1.0 0-90℃ N/A Pt plate N/A Glass DIN 7 pin 155x12 1 m
CD 60T(w/Thermistor) K=1.0 0-90℃ N/A Pt plate N/A Glass DIN 7 pin 155x12 1 m

Sepcifications

pH  Model Range Temp. Type Ref.  Junction Refillable Body Connector Size(mm) Cable
PB 40 0-14 0-80℃ Ag/AgCl Ceramic No PC BNC 165x12 1 m
PY 41 0-14 0-80℃ Ag/AgCl Ceramic No PC BNC 160x12 1 m
GL 42 0-14 0-90℃ Ag/AgCl Ceramic Yes Glass BNC 155x12 1 m
GL 43 0-14 0-90℃ Ag/AgCl Ceramic Yes Glass BNC 155x12 1 m
TP 46P(w/Pt100) 0-14 0-80℃ Ag/AgCl Ceramic No PC BNC+3.5φPlug 160x12 1 m
TP 46T(w/Thermistor) 0-14 0-80℃ Ag/AgCl Ceramic No PC BNC+3.5φPlug 160x12 1 m
PF 47 0-14 5-80℃ Ag/AgCl Cricoid Teflon No PVC BNC 106x15 1 m
ID 4410 0-14 5-90℃ Ag/AgCl Ground glass sleeve No Glass Spade Lug 160x12 1.2 m
ID 4420R 0-14 5-90℃ Ag/AgCl Ground glass sleeve Yes Glass Spade Lug 160x12 5 m
ID 4510 0-14 5-90℃ Ag/AgCl Ground glass sleeve No Glass Spade Lug 155x12 1 m
ID 4520 0-14 0-80℃ Ag/AgCl Cricoid Teflon No PPS Spade Lug 176x16 5 m
ID 4520F 0-14 0-80℃ Ag/AgCl Cricoid Teflon No PPS Spade Lug 176x16 5 m
Holder Material: PVC Size: 230 x 38 mm(for 4510 & 4511)



  ORP   Model Range  Temp.   Type Ref.  Junction  Refillable  Body  Connector   Size(mm)  Cable
PO 50  ±1500mV  0-80℃ Ag/AgCl Ceramic No PC BNC 160x12 1 m
GO 51 ±1500mV 0-80℃ Ag/AgCl Ceramic Yes Glass BNC 160x12 1 m
ID 4511 ±1500mV 5-90℃ Ag/AgCl Ground glass sleeve No Glass Spade Lug 155x12 1 m
ID 4521 ±1500mV 0-80℃ Ag/AgCl Cricoid Teflon No PPS Spade Lug 176x16 5 m



  Cell   Model  Range   Temp.   Type Ref.   Junction   Refillable   Body   Connector  Size(mm) Cable
CD 60 K=1.0 0-90℃ N/A Pt plate N/A Glass BNC 155x12 1 m
CD 60P(w/Pt100) K=1.0 0-90℃ N/A Pt plate N/A Glass DIN 7 pin 155x12 1 m
CD 60T(w/Thermistor) K=1.0 0-90℃ N/A Pt plate N/A Glass DIN 7 pin 155x12 1 m
