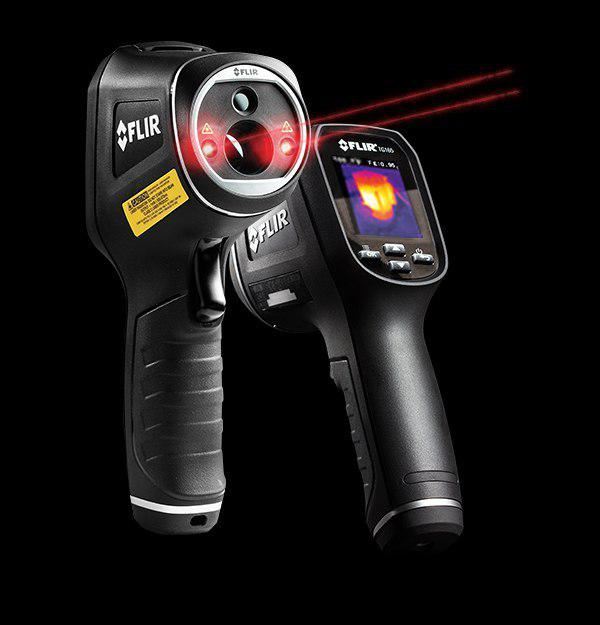

The FLIR TG167 Spot Thermal Cameras bridge the gap between single spot infrared thermometers and FLIR's legendary thermal cameras. Equipped with FLIR's exclusive Lepton® micro thermal sensor, these cameras let you see the heat so you know exactly where to target the measurement spot.
- Detector Type: Focal plane array , uncooled microbolometer
- IR Resolution:80 × 60 pixels
- Laser:Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger
- Memory Expansion:32 GB SD card maximum
- Memory Type:Micro SD card
- Spectral Range:8–14 µm
- Tripod Mounting:1/4 in.-20 on handle bottom
- IMAGING & OPTICAL
- Camera size (L x W x H):186 mm x 55 mm x 94 mm
- Camera weight incl battery:0.312 kg
- Color palettes:Hot Iron, Rainbow, Grayscale
- Display:2.0 in. TFT LCD
- Field of view (FOV):25° x 19.6°
- Gallery : 8549
- Image Frequency: 9Hz
- Minimum Focus Distance:0.1 m
- Minimum Measurement Distance:26 cm
- MEASUREMENT & ANALYSIS
- Accuracy:±1.5% or 1.5°C
- Object Temperature Range: –25 to +380°C
- Thermal Sensitivity/NETD< 150 mK
- POWER
- Battery operating time>5 hours of continuous scanning with lasers
- Battery type:Rechargeable Li ion battery
- Battery voltage:3.7 V
-
