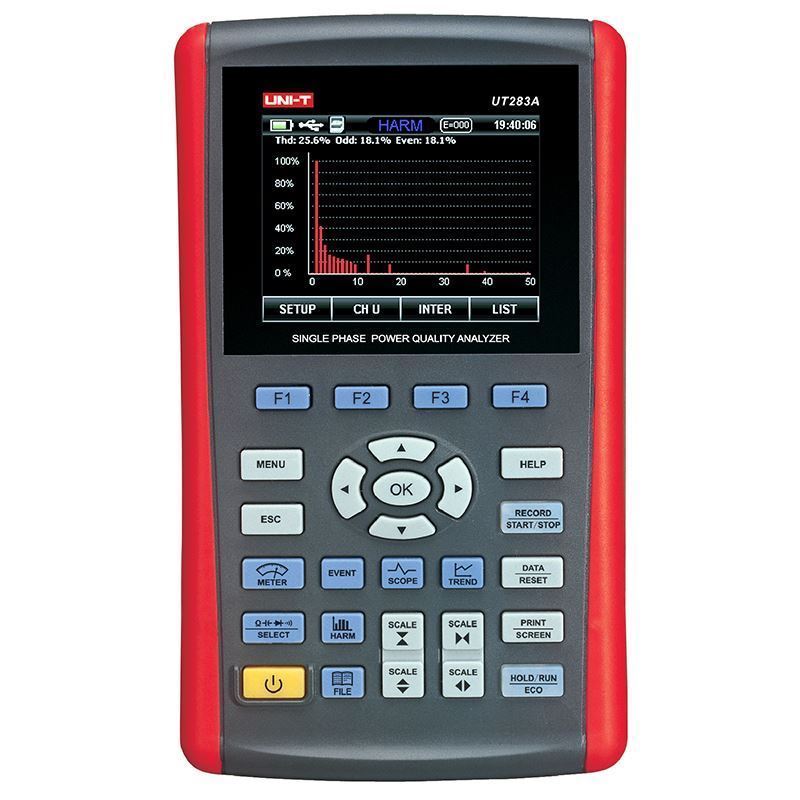

UT283A Single Phase Power Quality Analyzer
UT283A is an integrated device of analyzing and measuring power quality. It can not only measure basic electrical parameters, harmonics and inter harmonics, but also capture and record various power faults of voltage, current and flicker. What’s more, it can also have auxiliary functions of resistance, capacitance, diode measurements. It is used in power quality measurement, event recording and problem analysis of power,communication, medical treatment, energy saving and environmental protection, manufacturing industries and college teaching.
Features
1. Trend/event capture
2. Harmonics/inrush current measurement
3. File management through USB interface
4. Flick measure (PST/PLT values)
5. User-friendly interface
6. Multimeter functions
7. Scope functions including waveform display
8. 3.5-inch 64k TFT color LCD display, 320×240 pixel WVGA
9. THD (Total Harmonic Distortion) function
10. Long-term monitoring
|
Specifications
|
Range
|
Accuracy
|
|
Model
|
|
UT283A
|
|
Voltage (V)
|
10V~1000V AC/DC
|
±0.5% Udin
|
|
AC Current (A)
|
AC 10A/100A/1000A
|
±0.5% f.s.
|
|
Frequency (Hz)
|
40~70Hz
|
±50mHz
|
|
Power (W)
|
>
|
±1 %S
|
|
Power Factor
|
0~1.0
|
±0.02
|
|
Energy (Wh)
|
0～9999MWh
|
±1.5 %rdg
|
|
Crest Factor
|
1.0 to 10.0
|
±5 %
|
|
Voltage Harmonics or Inter Harmonics
|
Um≥3% Udin (1~51th, step 0.5th)
|
±5% Urms
|
|
Um≤3%Udin (1~51th, step 0.5th)
|
±0.15% Udin
|
|
Current Harmonics or Inter Harmonics
|
Im≥10% I f.s (1~51th, step 0.5th)
|
±5% Irms
|
|
Im≤10%I f.s (1~51th, step 0.5th)
|
±0.5%f.s.
|
|
Power Harmonics
|
(1~51th, step 1th)
|
Calculated based on voltage and current amplitude and phase accuracy
|
|
Transients
|
±6000V Peak, Fsample=2MHz
|
±5%Rdg.±5%Fs
|
|
Dips Swell & Interrupt
|
0~1000V AC
|
Udin±1 %
|
|
AC Inrush Current (A)
|
AC 10A/100A/1000A
|
±1%f.s
|
|
Resistance (Ω)
|
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
|
±(1.0%+3)
|
|
Capacitance (F)
|
60nF/600nF/6μF/60μF/600μF
|
±(4%+20)
|
|
Temperature (°C)
|
-40°C~1000°C
|
±(2.5%+3)
|
|
Humidity (°F)
|
-40°F~1832°F
|
±(2.5%+4)
|
