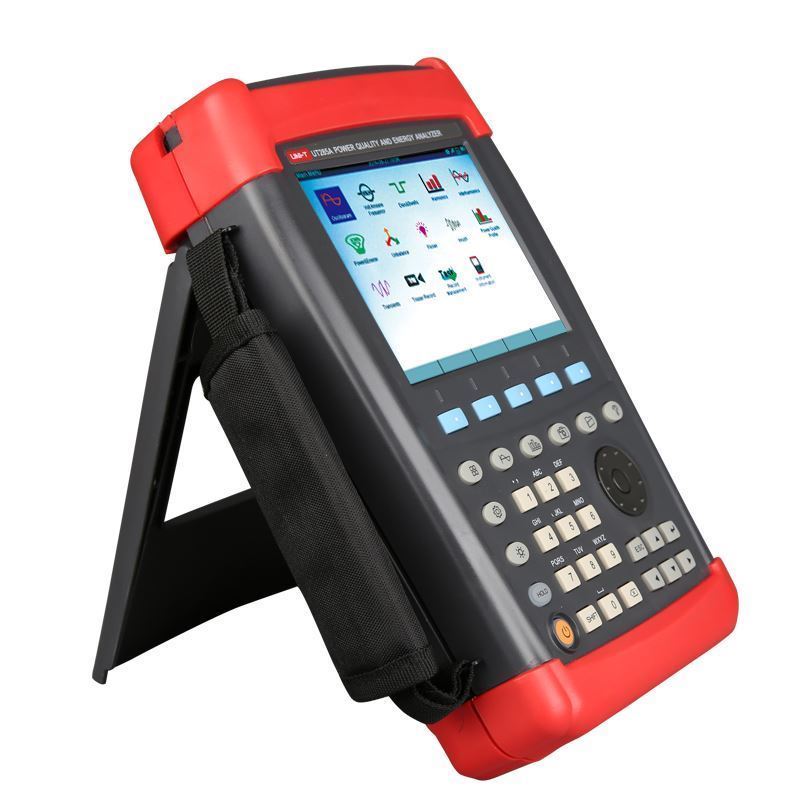

UT285A Three Phase Power Quality Analyzer
UT285A is a new product specially designed for power quality analysis. It adopts latest microprocessor technology and digital signal processing technology, which can provide safer, more convenient, and more accurate measurement as well as troubleshoot power supply network. With portable and humanization design, user can approach series of parameters of characterization of power quality, including voltage deviation, frequency deviation, harmonics and inter harmonics, unbalance, swell and sag, flicker as well as transient and surge signals. These data can help users to locate and eliminate existing or potential problems and access the power quality.
Features
1. TFT color LCD display with 640×480 resolution
2. Visual waveform display
3. VAH mode
4. Harmonics measurement mode
5. Power mode
6. Unbalance mode
7. Flicker measurement
8. Power quality summary
9. Transient mode
10. Swell and sag mode
11. Trigger parameter view mode
12. True RMS voltage/current
13. ±0.1% Voltage and current accuracy
14. Inrush current
|
Specifications
|
|
Model
|
UT285A
|
| |
Range
|
Accuracy
|
Resolution
|
|
AC Voltage
|
0.1～1000V
|
0.10%
|
0.1V
|
|
AC Current
|
3000A Flexible Current Probe
|
1%(10~100%In)
|
0.01A
|
|
Power, Electric Energy
|
9000kW
|
1%
|
0.1 W
|
|
Power Frequency
|
45~65Hz
|
0.01Hz
|
0.001Hz
|
|
Phase Angle
|
0~359.99°
|
±0.1°
|
0.01°
|
|
Harmonics
|
0~50
|
A Level
|
0.01V
|
|
Inter Harmonics
|
0~50
|
A Level
|
0.01V
|
|
Voltage Unbalance Factor
|
0~50%
|
0.20%
|
0.01%
|
|
Current Unbalance Factor
|
0~50%
|
1%
|
0.01%
|
|
Flickering
|
0.00~20.00
|
5%
|
0.01
|
|
Swell and Sag Interrupt
|
0.0~200%
|
0.1V
|
0.01V
|
