ترمومتر غیرتماسی UT305A

Temperature Range:-50°C~1050°C accuracy:±1.8°C or ±1.8% Distance to Spot Size:50:1
دسترسی: در انبار
تولید کننده: یونیتی
$ 408/7

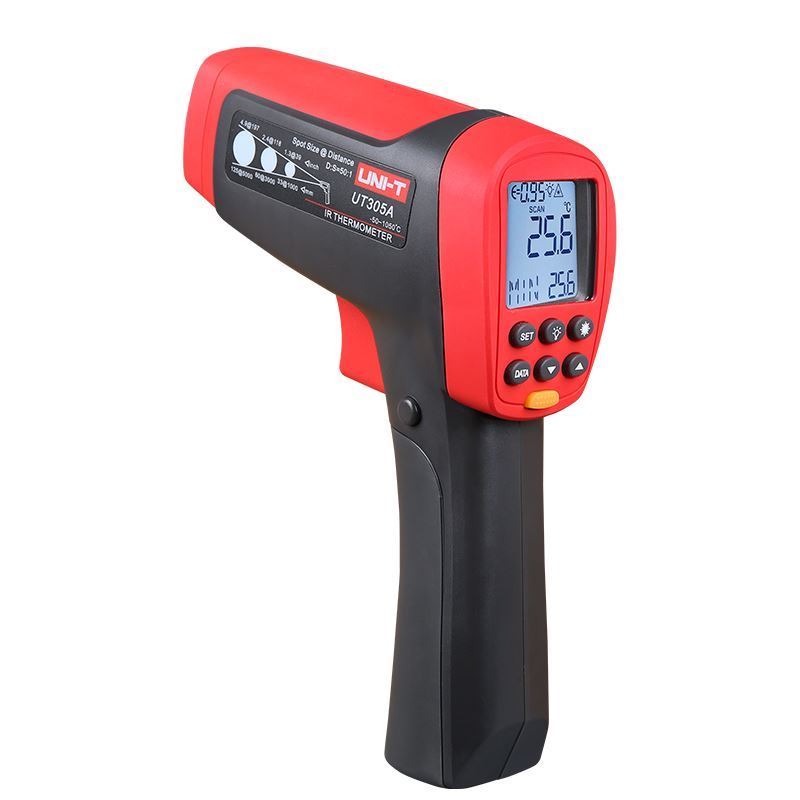

UT305A Infrared Thermometer

UT305 series infrared thermometers can measure temperature by laser or contact with k-type temperature probe. UT305 has a 50:1 D:S ratio, so it can measure long range temperature points of interest with great accuracy. UT305 also has 99 sets of data storage and USB data transmission. They are ideal tools for industrial quality inspection such as HVAC and electronics manufacturing.

Main features

1. K type temperature probe

2. 99 sets of data storage, USB interface, PC software

3. MAX/MIN/AVG/DIF modes

4. High/Low temperature limit setting with audible alarm

5. Adjustablemissivity 0.1~1.0

6. USB, battery, or power adapter

7. Tripod mount and continuous measurement mode

8. ℃/℉ selectable; auto power off

9. Adjustable LCD backlight

10. Optional (on/off) laser pointer

11. Low battery indication; data hold



SpecificationsRange
ModelUT305A
Temperature Range-50°C~1050°C
-58°F~1922°F
Accuracy±1.8°C or ±1.8%
Repeatability±0.5°C or ±0.5%
Resolution0.1 (When<10°C:0.2)
Distance to Spot Size50:1
Response Time250ms (95% of reading)
Emissivity0.10~1.0 Adjustable
Laser TypeClass 2 (Ⅱ)
Laser Power<1mW
Laser Wavelength630nm ~670nm
Spectral Response8μm~14μm
Features
°C/°F Selection√
Laser Switch√
Display Hold (s)8 seconds
Data Hold√
Auto Power Off√
Low Battery Indication√
MAX Mode√
MIN Mode√
DIFF Mode√
AVG Mode√
Data Logging99
USB Interface√
High Alarm√
Lower Alarm√
LCD Backlight√
Electricity Cut-off Memory√
Tripod Mount√
T-C Thermocouple Measurement√
General Characteristics
PowerUSB or 9V Battery (6F22) or Power Adaptor
LCD Size33mm X 38mm
Product ColorRed and grey
Product Net Weight320g
Product Size183mm X 147mm X 57mm
Standard AccessoriesBattery, USB Interface Cable, PC Software CD
Standard Individual PackingGift Box, Tool Box, English Manual
Standard Quantity Per Carton5pcs
Standard Carton Measurement480mm X 372mm X 315mm (0.056 CBM Per Standard Carton)
Standard Carton Gross Weight11kg

UT305A Infrared Thermometer

UT305 series infrared thermometers can measure temperature by laser or contact with k-type temperature probe. UT305 has a 50:1 D:S ratio, so it can measure long range temperature points of interest with great accuracy. UT305 also has 99 sets of data storage and USB data transmission. They are ideal tools for industrial quality inspection such as HVAC and electronics manufacturing.

Main features

1. K type temperature probe

2. 99 sets of data storage, USB interface, PC software

3. MAX/MIN/AVG/DIF modes

4. High/Low temperature limit setting with audible alarm

5. Adjustablemissivity 0.1~1.0

6. USB, battery, or power adapter

7. Tripod mount and continuous measurement mode

8. ℃/℉ selectable; auto power off

9. Adjustable LCD backlight

10. Optional (on/off) laser pointer

11. Low battery indication; data hold



SpecificationsRange
ModelUT305A
Temperature Range-50°C~1050°C
-58°F~1922°F
Accuracy±1.8°C or ±1.8%
Repeatability±0.5°C or ±0.5%
Resolution0.1 (When<10°C:0.2)
Distance to Spot Size50:1
Response Time250ms (95% of reading)
Emissivity0.10~1.0 Adjustable
Laser TypeClass 2 (Ⅱ)
Laser Power<1mW
Laser Wavelength630nm ~670nm
Spectral Response8μm~14μm
Features
°C/°F Selection√
Laser Switch√
Display Hold (s)8 seconds
Data Hold√
Auto Power Off√
Low Battery Indication√
MAX Mode√
MIN Mode√
DIFF Mode√
AVG Mode√
Data Logging99
USB Interface√
High Alarm√
Lower Alarm√
LCD Backlight√
Electricity Cut-off Memory√
Tripod Mount√
T-C Thermocouple Measurement√
General Characteristics
PowerUSB or 9V Battery (6F22) or Power Adaptor
LCD Size33mm X 38mm
Product ColorRed and grey
Product Net Weight320g
Product Size183mm X 147mm X 57mm
Standard AccessoriesBattery, USB Interface Cable, PC Software CD
Standard Individual PackingGift Box, Tool Box, English Manual
Standard Quantity Per Carton5pcs
Standard Carton Measurement480mm X 372mm X 315mm (0.056 CBM Per Standard Carton)
Standard Carton Gross Weight11kg
مشخصات محصول
Attribute nameAttribute value
تولید کنندهUNI-T
کشور سازندهتایوان
نوع دستگاهقابل حمل
