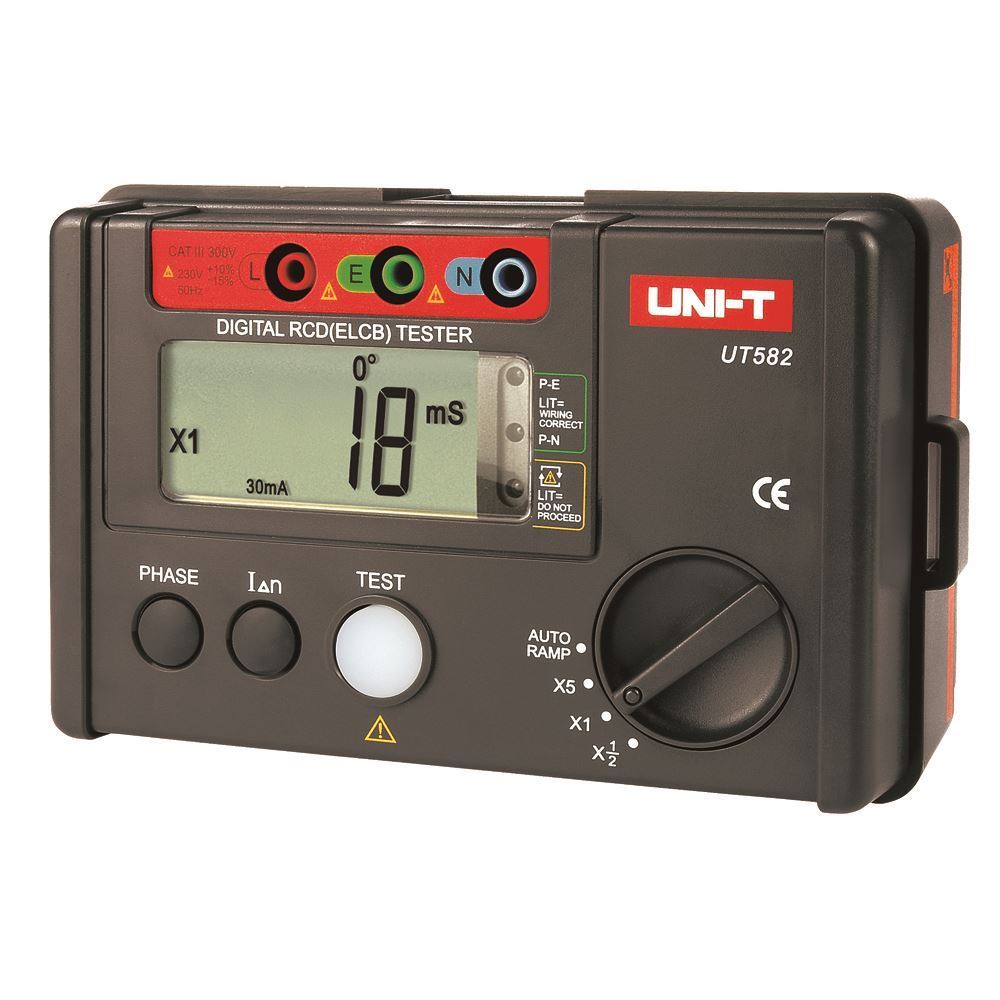

UT582 Digital RCD (ELCB) Tester
UNI-T’s UT582 is a 1000-count digital RCD (ELCB) tester with phase switch, connections check, AUTO RAMP, disconnect buzzer, Over-range display and more.
Features
1. Lock measurement
2. 1000-count LCD display of all measurement indicators
3. Lead sequence check with 3 LED indication lights
4. Phase angle selection (0°and 180°), can detect the fastest trigger time
5. AUTO RAMP measurement, trip current and time real-time display
6. Fuse protection; data hold, over range indication, double insulation
|
Specifications
|
|
Range
|
Accuracy
|
|
Model
|
|
|
UT582
|
|
RCD Measurement
|
Range Select
|
Rated Operating Current
|
Trip Time
|
|
|
X 1/2
|
10mA/20mA/30mA/100mA/300mA/500mA
|
1000ms
|
√
|
|
X 1
|
10mA/20mA/30mA/100mA/300mA
|
1000ms
|
√
|
|
500mA
|
300ms
|
√
|
|
X 5
|
10mA/20mA/30mA
|
300ms
|
√
|
|
AUTO RAMP
|
10mA/20mA/30mA/100mA/300mA/500mA
|
300ms
|
√
|
|
Trip Current Accuracy
|
|
±(2%+8)
|
|
Trip Time Accuracy
|
|
±(0.6%+4)
|
|
Trip Time Resolution
|
1ms
|
√
|
|
Operational Voltage (Freq.)
|
195V～253V（50Hz）
|
√
|
|
Features
|
|
Display Count
|
|
1000
|
|
Data Hold
|
|
√
|
|
Phase Switch
|
0° and 180°
|
√
|
|
Connections Check Function
|
Visible indication
|
√
|
|
AUTO RAMP Function
|
Test the trip time and trip current
|
√
|
|
Disconnect Buzzer
|
|
√
|
|
Over-range Display
|
OL
|
√
|
|
Fused
|
|
√
|
|
Mis-Operation Buzzer
|
|
√
|
|
Power Off Buzzer
|
|
√
|
|
Full Icon Display
|
|
√
|
|
General Characteristics
|
|
Power
|
No battery is required.
|
|
LCD Size
|
71mm X 34mm
|
|
Product Color
|
Red and grey
|
|
Product Weight
|
400g
|
|
Product Size
|
160mm X 100mm X 71mm
|
|
Standard Accessories
|
Test leads, carrying bag
|
|
Standard Individual Packing
|
Gift box, user manual
|
|
Standard Quantity Per Carton
|
20pcs
|
|
Standard Carton Measurement
|
440mm X 430mm X 335mm
|
|
Standard Carton Gross Weight
|
14kg
|
