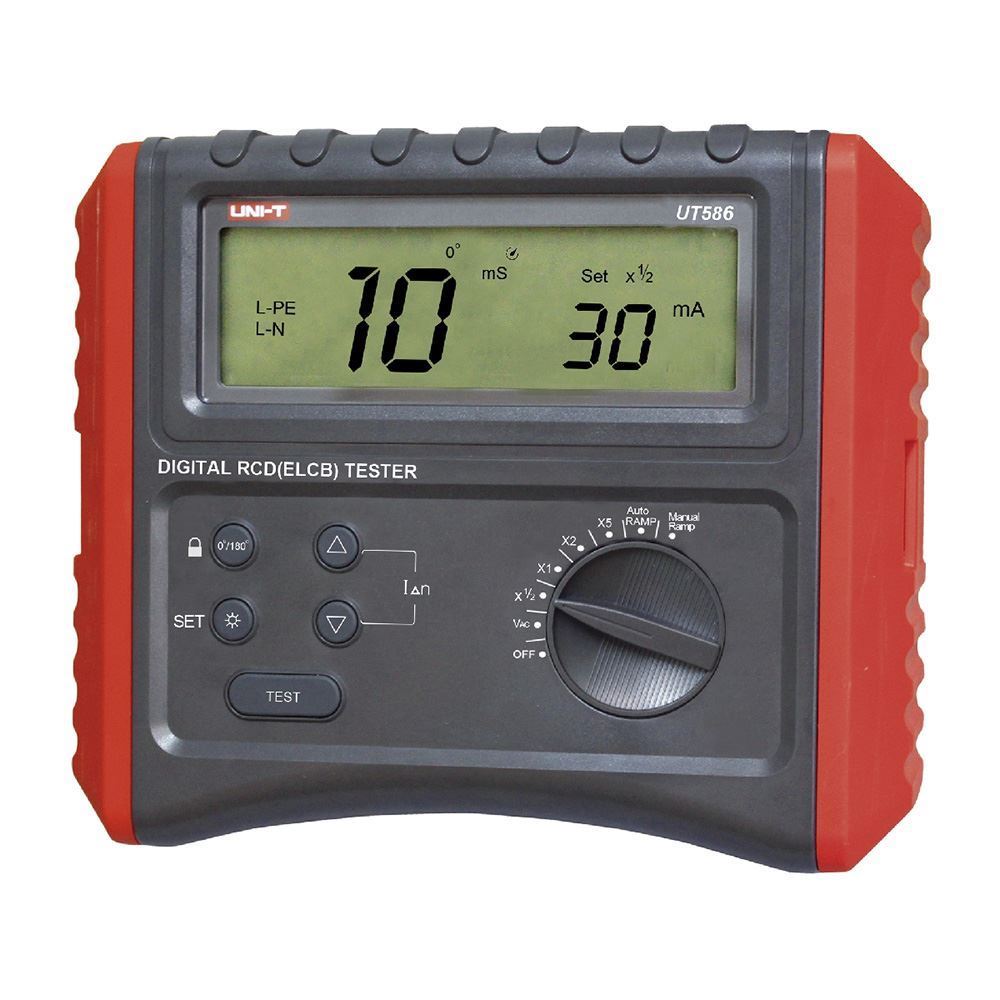

UT586 Digital RCD Tester
UNI-T’s UT586 Digital RCD Tester features ACV, Contact voltage automatic and over-temperature detection, 1A trigger test etc. It is flexible and economic.
Features
1. Lock measurement; automatically begin measurement after powering on
2. Test lead connection check
3. Phase angle selection (0°and 180°), can detect the fastest trigger time
4. AUTO RAMP measurement, trip current and time real-time display
5. MANUAL RAMP measurement (20%~110% step, 5% step length)
6. 1A trigger test
7. Fuse protection; data hold, over range indication, double insulation
| Specifications |
Range |
Accuracy |
| Model |
|
UT586 |
| RCD Measurement |
Range Selection |
Rated Operation Current |
Trip Time |
|
| X 1/2 |
10mA/20mA/30mA/100mA/200mA/300mA/500mA/1000mA |
2000ms |
√ |
| X 1 |
10mA/20mA/30mA/100mA/200mA/300mA |
1000ms |
√ |
| 500mA/1000mA |
200ms |
√ |
| X 2 |
10mA/20mA/30mA/100mA/200mA/300mA/500mA |
200ms |
√ |
| X 5 |
10mA/20mA/30mA/100mA/200mA |
200ms |
√ |
| AUTO RAMP |
10mA/20mA/30mA/100mA/200mA/300mA/500mA/1000mA |
300ms |
√ |
| MANUAL RAMP |
10mA/20mA/30mA/100mA/200mA/300mA/500mA/1000mA |
300ms |
√ |
| Trip Current Accuracy |
|
±10% |
| Trip Time Accuracy |
|
±(0.6%+4) |
| Trip Time Resolution |
|
1ms |
| Operational Voltage |
230V (50Hz) |
±10% |
| AC Voltage (V) (Freq.) |
60V～400V (50～60Hz) |
±(3%+5) |
| Features |
| Auto Power Off |
|
√ |
| Low Battery Indication |
|
√ |
| Data Hold |
|
√ |
| LCD Backlight |
|
√ |
| Contact Voltage Automatic Detection |
|
√ |
| Over-Temperature Detection |
|
√ |
| Lock Test Function |
|
√ |
| Connections Check Function |
Visible indication |
√ |
| Fuse Security |
|
√ |
| General Characteristics |
| Power |
1.5V Batteries (5#) X 8 |
| LCD Size |
125mm X 37mm |
| Product Color |
Red and grey |
| Product Weight |
1000g |
| Product Size |
210mm X 175mm X 90mm |
| Standard Accessories |
Batteries, test leads, tool box |
| Standard Individual Packing |
Gift box, user manual |
| Standard Quantity Per Carton |
4pcs |
| Standard Carton Measurement |
510mm X 330mm X 330mm |
| Standard Carton Gross Weight |
15kg |
