دوربین حرارتی UTi160B

temperature range : -20°C to 300°C
Infrared Spectral Bandwidth: 8~14u
Accuracy:±2°C or ±2%
دسترسی: موجود نیست
تولید کننده: یونیتی
ریال

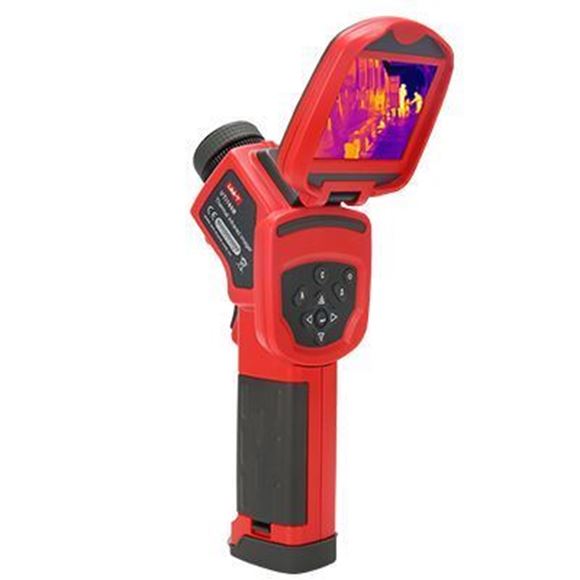

Thermal Imager UTi160B

UNI-T's UTi160B thermal imaging camera has a resolution of 160 x 120 pixels and a temperature range of -20°C to 300°C.

Features:

Point-and-Detect, Imaging Clearly: “Direct to Target” design permits simultaneous view on imageand temperature data during aiming at objects. It delivers clear and crisp images without missing instant details or defects, such as frame drop or trailing, so as to find out all problems.

Applicable industries: electric power, construction,electronics, smelting, energy, railway, automobile, petrochemical.

Specifications



Model

UTi160B

Sensor Type

Uncooled Focal Plane Arrays

Resolution

160*120 pixels

Field of View /Minimum Focus Distance

20°×15°/0.1m

Spatial Resolution (IFOV)

2.2mrad

Visible Light Resolution

No

Image Mode

Infrared

Focus

Manual

Infrared Spectral Bandwidth

8~14um

NETD

≤0.08℃@30℃

Temperature Range

-20℃~300℃

Accuracy

±2°C or ±2% (whichever is greater)

Features

Display Type

3.5"TFT LCD, Rotatable

Palettes

Iron, Iron-Invert, Rainbow, Feather, Grey, Grey Inverted

Image Adjustment

Auto/Manual

Image Format

*·TIR

Video Output

Support; PAL (50Hz) or NTSC (60Hz) (With Optional Base)

Measurement Mode

Movable Spot, Area (MAX,MIN)

Parameters Setting

Emissivity, Distance, Temperature, Relative Humidity

Temperature Calibration

High/Low Temperature Alarm

Laser Pointer

Image Capture

Image Storage

2GB SD Card (Support up to 16GB)

Temperature Units

℃/℉

Flashlight

No

Support Languages

English / Simplified Chinese

Power Mode

Standard/ Power Saving/ Auto Power Off

Analyzing Software

Professional Version. Analysis any temperature point and creates report in WORD format.

Water Proof Rating

IP54

Impact /Vibration

25G/2G

General characteristics

Power

Li-ion 1250mAh

Product Color

Red and grey

Product Net Weight

500g

Product Size

170mm X 80mm X 160mm

Standard Accessories

Batteries, Power Charger, SD Card (2G), Card Reader, Camera Cover, Software CD

Standard Individual Packing

Gift box, Toolbox, User Manual

Standard Quantity Per Carton

5pcs

Standard Carton Measurement

545mm × 380mm × 325mm (0.067 CBM Per Standard Carton)

Standard Carton Gross Weight

11.6kg

Optional Accessories

Power Adapter, 16G SD card, Vehicular Power Cord, 3.8°/ 6.4°/ 12°/ 38° lens, Tailer-made Temperature Range (600℃, 1000℃, 1500℃ available

Thermal Imager UTi160B

UNI-T's UTi160B thermal imaging camera has a resolution of 160 x 120 pixels and a temperature range of -20°C to 300°C.

Features:

Point-and-Detect, Imaging Clearly: “Direct to Target” design permits simultaneous view on imageand temperature data during aiming at objects. It delivers clear and crisp images without missing instant details or defects, such as frame drop or trailing, so as to find out all problems.

Applicable industries: electric power, construction,electronics, smelting, energy, railway, automobile, petrochemical.

Specifications



Model

UTi160B

Sensor Type

Uncooled Focal Plane Arrays

Resolution

160*120 pixels

Field of View /Minimum Focus Distance

20°×15°/0.1m

Spatial Resolution (IFOV)

2.2mrad

Visible Light Resolution

No

Image Mode

Infrared

Focus

Manual

Infrared Spectral Bandwidth

8~14um

NETD

≤0.08℃@30℃

Temperature Range

-20℃~300℃

Accuracy

±2°C or ±2% (whichever is greater)

Features

Display Type

3.5"TFT LCD, Rotatable

Palettes

Iron, Iron-Invert, Rainbow, Feather, Grey, Grey Inverted

Image Adjustment

Auto/Manual

Image Format

*·TIR

Video Output

Support; PAL (50Hz) or NTSC (60Hz) (With Optional Base)

Measurement Mode

Movable Spot, Area (MAX,MIN)

Parameters Setting

Emissivity, Distance, Temperature, Relative Humidity

Temperature Calibration

High/Low Temperature Alarm

Laser Pointer

Image Capture

Image Storage

2GB SD Card (Support up to 16GB)

Temperature Units

℃/℉

Flashlight

No

Support Languages

English / Simplified Chinese

Power Mode

Standard/ Power Saving/ Auto Power Off

Analyzing Software

Professional Version. Analysis any temperature point and creates report in WORD format.

Water Proof Rating

IP54

Impact /Vibration

25G/2G

General characteristics

Power

Li-ion 1250mAh

Product Color

Red and grey

Product Net Weight

500g

Product Size

170mm X 80mm X 160mm

Standard Accessories

Batteries, Power Charger, SD Card (2G), Card Reader, Camera Cover, Software CD

Standard Individual Packing

Gift box, Toolbox, User Manual

Standard Quantity Per Carton

5pcs

Standard Carton Measurement

545mm × 380mm × 325mm (0.067 CBM Per Standard Carton)

Standard Carton Gross Weight

11.6kg

Optional Accessories

Power Adapter, 16G SD card, Vehicular Power Cord, 3.8°/ 6.4°/ 12°/ 38° lens, Tailer-made Temperature Range (600℃, 1000℃, 1500℃ available

مشخصات محصول
Attribute name Attribute value
تولید کننده UNI-T
کشور سازنده تایوان
نوع دستگاه قابل حمل
