Specifications
|
|
|
Model
|

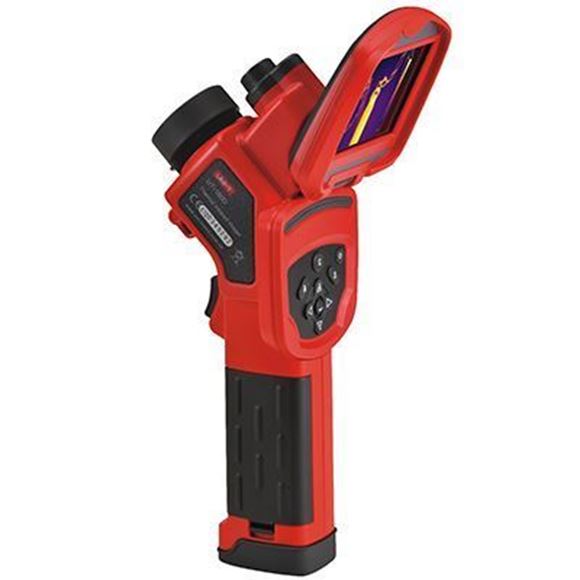

UTi160D
|
|
Sensor Type
|
Uncooled Focal Plane Arrays
|
|
Resolution
|
160*120 pixels
|
|
Field of View /Minimum Focus Distance
|
20°×15°/0.1m
|
|
Spatial Resolution (IFOV)
|
2.2mrad
|
|
Visible Light Resolution
|
640×480 Full Color
|
|
Image Mode
|
Infrared/Visible Light/Fusion/PIP
|
|
Focus
|
Manual
|
|
Infrared Spectral Bandwidth
|
8~14um
|
|
NETD
|
≤0.08℃@30℃
|
|
Temperature Range
|
-20℃~400℃
|
|
Accuracy
|
±2°C or ±2% (whichever is greater)
|
|
Features
|
|
Display Type
|
3.5"TFT LCD, Rotatable
|
|
Palettes
|
Iron, Iron-Invert, Rainbow, Feather, Grey, Grey Inverted
|
|
Image Adjustment
|
Auto/Manual
|
|
Image Format
|
*·TIR, *.CCD
|
|
Video Output
|
Support; PAL (50Hz) or NTSC (60Hz) (With Optional Base)
|
|
Measurement Mode
|
4 Movable Spots, Area (MAX, MIN) isothermality analysis
|
|
Parameters Setting
|
Emissivity, Distance, Temperature, Relative Humidity
|
|
Temperature Calibration
|
√
|
|
High/Low Temperature Alarm
|
√
|
|
Laser Pointer
|
√
|
|
Image Capture
|
√
|
|
Image Storage
|
2GB SD Card (Support up to 16GB)
|
|
Temperature Units
|
℃/℉
|
|
Flashlight
|
Yes
|
|
Support Languages
|
English / Simplified Chinese
|
|
Power Mode
|
Standard/Power Saving/Auto Power Off
|
|
Analyzing Software
|
Professional Version. Analysis any temperature point and creates report in WORD format.
|
|
Water Proof Rating
|
IP54
|
|
Impact/Vibration
|
25G/2G
|
|
General characteristics
|
|
Power
|
Li-ion 1250mAh
|
|
Product Color
|
Red and grey
|
|
Product Net Weight
|
500g
|
|
Product Size
|
170mm × 80mm × 160mm
|
|
Standard Accessories
|
Batteries, Power Charger, SD Card (2G), Card Reader, Camera Cover, Software CD
|
|
Standard Individual Packing
|
Gift box, Toolbox, User Manual
|
|
Standard Quantity Per Carton
|
5pcs
|
|
Standard Carton Measurement
|
545mm × 380mm × 325mm (0.067 CBM Per Standard Carton)
|
|
Standard Carton Gross Weight
|
11.6kg
|
|
Optional Accessories
|
Power Adapter, 16G SD card, Vehicular Power Cord, 3.8° / 6.4° / 12°/ 38° Lens, Tailered-made Temperature Range (600℃, 1000℃, 1500℃ Available)
|
