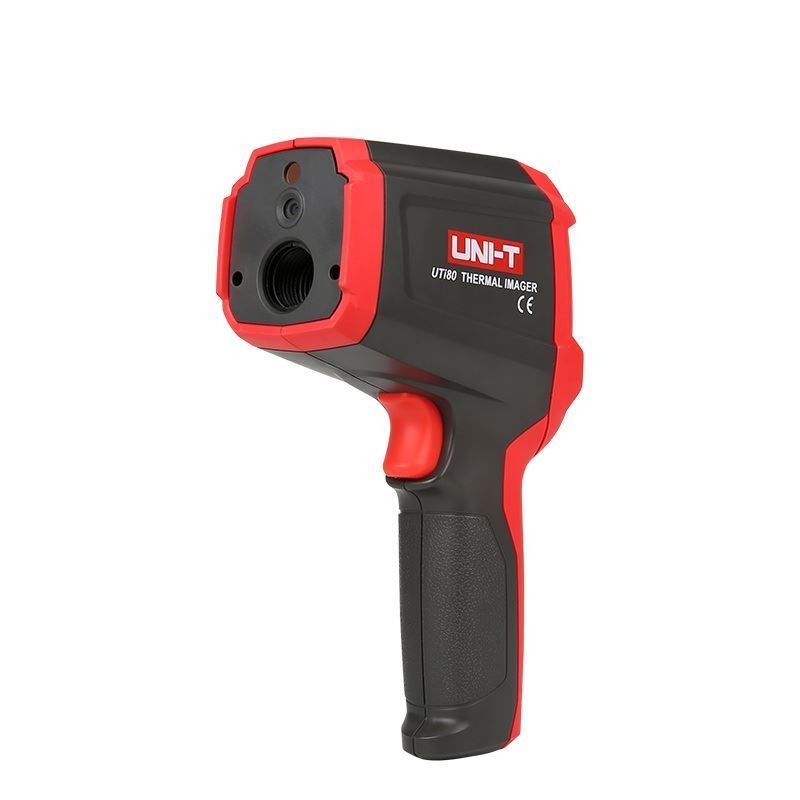

UTi80 Thermal Imager
Traditional infrared thermometers can only measure single temperature points. UTi80 thermal imager can detect temperature variations of an area of interest through a 2.4-inch LCD display. UTi80’s dual laser can quickly lock in measurement area and display target temperature. The standard package also includes an 8GB Micro SD card for image and temperature data storage. UTi80’s image blending feature is able to combine infrared and normal camera images together, allowing in-depth display for areas of interest.
Main Features
1. 2-megapixel camera
2. 4-inch TFT LCD Display
3. Dual laser
4. D:S ratio, 20:1
5. Adjustable emissivity 0.1~0.99
6. Temperature testing range: -30°C ~ 400°C
7. 80×60 pixel resolution, 51° Field of View
8. Merging visible and infrared image display
9. Chargeable Li-ion battery (charge through micro USB)
Industrial applications: Thermal imaging, automotive, monitoring
Other applications: Firefighting, radiology, R&D, HVAC, lighting, motor, energy saving, construction, health care, and more.
| Specifications |
UTi80 |
| Temperature range |
-30℃~400℃ |
| Basic accuracy |
-30-0℃: ±3.5℃, 0℃~100℃: ±2℃, 101℃~400℃: ±2% |
| Emissivity |
0.1-0.99 adjustable |
| D:S ratio |
20:01 |
| Measuring resolution |
0.1℃/℉ |
| Response time |
150ms |
| Thermal Imaging Technology |
| Thermal imaging resolution |
4800 pixels (80 x 60) |
| Pixel size |
17μm |
| Image display |
thermal imaging, thermal blending, digital camera |
| Palettes |
iron red, rainbow, grey |
| Blending setup |
0% (thermal imaging only), 25%, 50%, 100% (visible light only） |
| Infrared spectral bandwidth |
8~14μm |
| FOV |
50° horizontal |
| IFOV |
11 mrad |
| Thermal imaging sensitivity |
150mk |
| Frame rate |
≦9Hz |
| Image format |
BMP |
| Features |
| Visible light camera |
2 megapixels |
| Device size (L x W x H) |
205mm x 124mm x 65mm |
| Monitor |
2.4 & rdquo; TFT LCD |
| Display resolution |
320*240 pixels |
| Laser indicator |
Dual laser |
| Battery |
3.7V/2600mAh |
| Auto power off |
Yes |
| Battery continuous working time |
3~4hrs |
| Certification |
CE |
| SD card |
8GB μSD card |
| Storage temperature |
-20℃~50℃, -4℉~122℉ |
| Working temperature |
-10℃~45℃, 14℉~113℉ |
| Drop proof |
1m (3.28 feet) |
| Standard accessories |
manual, USB cable, 8GB micro TF card |
| Altitude |
≤40000 feet |
