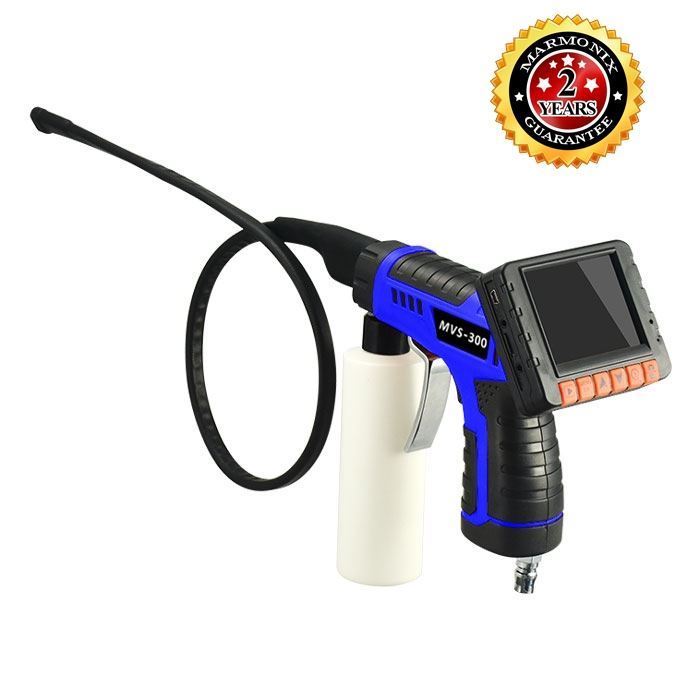

Atomizing Video Borescope MVS-300
MVS-300 is a new type of video borescope that has the feature of spraying liquids to the tight spots that you want to monitor.
This special function makes the device an ideal tool for inspecting the car cooling systems.
MVS-300 is widely used in mechanics, construction, excavation, machinery, etc.
- Spray and clean everywhere
- Detachable probe and screen
- Easy to operate
- Video output
- Durable body
- Video & Image
| Parameter |
Values |
| Image sensor |
VGA CMOS sensor |
| Display |
3.5” TFT LCD QVGA 320 x 240 16.7M colors |
| Effective pixel (cam) |
720(H)*625(V)(P) |
| Focus distance |
20mm-70mm |
| Resolution |
640*480 |
| Angle of view |
60 Degree FOV (D) |
| Diameter of lens |
9mm |
| Probe diameter |
14mm |
| Probe length |
80cm |
| LED illumination |
4 LEDs (adjustable brightness in 6 levels) |
| Signal Transmission |
2.4G Wireless Video & wired transmission, screen and handle integration |
| Video & Photo Format |
AVI & JPG/BMP/JPEG |
| Working voltage & current |
5VDC & 600mA |
| Memory |
Capacity up to 32GB SD card |
| Bottle capacity |
250mL |
| Probe IP |
67 |
| Working air pressure |
4-6Kg/cm² |
| Screen Battery |
Built-in Li-battery 1200MAH 3.7V |
| Handle Battery |
18650 3.7V Battery |
| Camera power supply |
3.3V |
| Power supply |
AC 110-220V/0.5A , 5VDC/2A |
| Gross weight |
Approximately 3.2kg/set |
