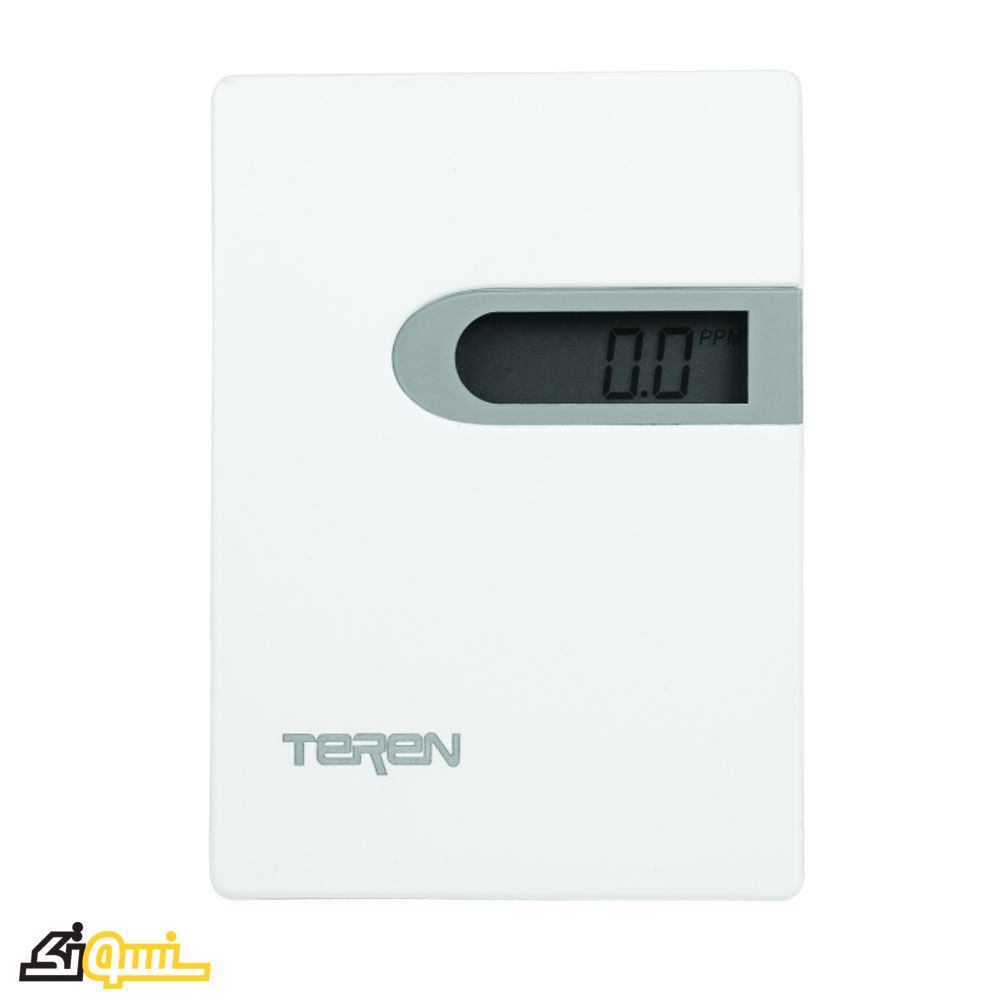

CDTHW CO2/ Temperature/ Humidity Transmitter

Measuring CO2 range: 0~2000ppm
Temperature Range:0~50°C
Availability: Out of stock
Manufacturer: TEREN
ریال

CDTH series carbon dioxide ( CO2 ) / temperature / humidity transmitters are designed for monitoring & controlling indoor air quality, temperature and humidity in one unit. CDTHW CO2/ Temperature/ Humidity Transmitter

CDTHW Transmitter Features:

Carbon dioxide (CO2 )
Sensor:  NDIR sensor, with ABC algorithm*
Sampling Method:  diffusion
Accuracy:  (40+3%MV) ppm
Response time:  <10s (30cc/min, low airflow)
Drift:  <±10ppm/year
Range:  0~2000ppm (measure range 400~2000ppm)
Output:  4~20mA, 0~10V, RS485/Modbus
Temperature
Sensor:  Digital, RTD or thermistor, see models
Range:  0~50°C
Accuracy:  see accuracy table
Output:  4~20mA, 0~10V, RS485/Modbus or RTD / thermistor
Relative Humidity
Sensor: Digital polymer
Range:  0~100%RH
Accuracy:  see accuracy table
Hysteresis:  <±1%RH

CDTH series carbon dioxide ( CO2 ) / temperature / humidity transmitters are designed for monitoring & controlling indoor air quality, temperature and humidity in one unit. CDTHW CO2/ Temperature/ Humidity Transmitter

CDTHW Transmitter Features:

Carbon dioxide (CO2 )
Sensor:  NDIR sensor, with ABC algorithm*
Sampling Method:  diffusion
Accuracy:  (40+3%MV) ppm
Response time:  <10s (30cc/min, low airflow)
Drift:  <±10ppm/year
Range:  0~2000ppm (measure range 400~2000ppm)
Output:  4~20mA, 0~10V, RS485/Modbus
Temperature
Sensor:  Digital, RTD or thermistor, see models
Range:  0~50°C
Accuracy:  see accuracy table
Output:  4~20mA, 0~10V, RS485/Modbus or RTD / thermistor
Relative Humidity
Sensor: Digital polymer
Range:  0~100%RH
Accuracy:  see accuracy table
Hysteresis:  <±1%RH
Products specifications
Attribute name Attribute value
Producer TEREN
Made in China
device type Transmitter
Sensor Type CO2
Sensor Type Temperature & Humidity
Measurement range CO2 0~2000ppm
Temperature range 0~50°C
Humidity Measure Range 0~100%RH
Powered by 16-28VAC/16-35VDC
درجه حفاظت(Ip) IP30
