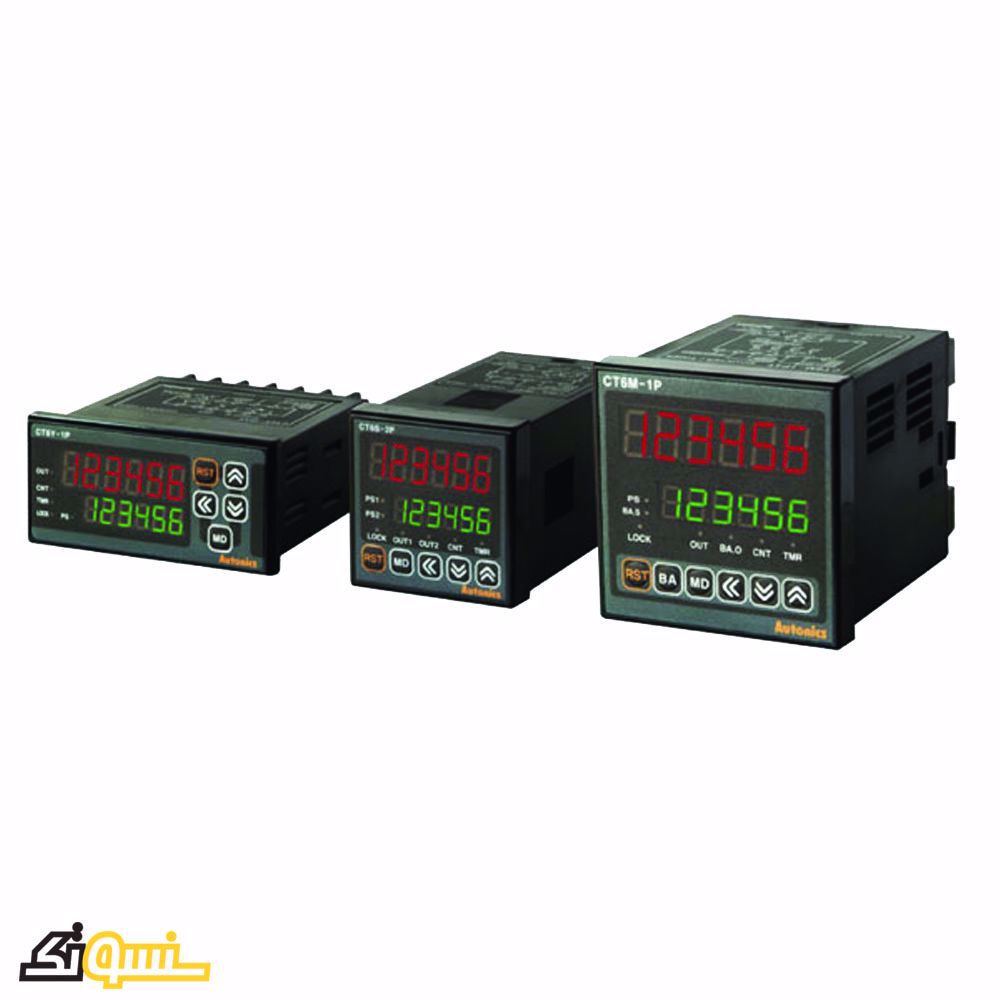

CT series digital counter/timer

Power supply:AC 90~250V
Power Consumption<= 6W
Relay Output:250VAC 3A or 30VDC 5A
Availability: Out of stock
Manufacturer: autonics
ریال

CT series digital counter/timer price is available in sensotec website.

CT series Features:

power supply AC 90~250V
Power Consumption <= 6W

Relay Output

250VAC 3A or 30VDC 5A

Output power supply for sensor

12VDC +/- 10% 50 mA
Ambient Ambient temperature 0 ~50 oC; Ambient humidity 35~85%RH
Data reserve time 10 years
Input signal Square : 5V<=H<=30V  0<= L <= 2V
Input impedance >= 10 KΩ
Counter speed 30 CPS / 1000 CPS / 2000 CPS / 5000 CPS
Counting Range -19999 ~ 999999
Output Time 0.1~99999.9s
Impulse range in timer mode 0.01s~999.9h (4 digits)
0.01s~99999.9h (6 digits)
Pause range in timer mode 0.1~99999.9s (6 digits)
0.1~999.9s (4  digits)

CT series digital counter/timer price is available in sensotec website.

CT series Features:

power supply AC 90~250V
Power Consumption <= 6W

Relay Output

250VAC 3A or 30VDC 5A

Output power supply for sensor

12VDC +/- 10% 50 mA
Ambient Ambient temperature 0 ~50 oC; Ambient humidity 35~85%RH
Data reserve time 10 years
Input signal Square : 5V<=H<=30V  0<= L <= 2V
Input impedance >= 10 KΩ
Counter speed 30 CPS / 1000 CPS / 2000 CPS / 5000 CPS
Counting Range -19999 ~ 999999
Output Time 0.1~99999.9s
Impulse range in timer mode 0.01s~999.9h (4 digits)
0.01s~99999.9h (6 digits)
Pause range in timer mode 0.1~99999.9s (6 digits)
0.1~999.9s (4  digits)
Products specifications
Attribute name Attribute value
Producer autonics
Made in South Korea
device type Portable
Power <= 6W
Input impedance >= 10KΩ
Powered by AC 90~250V
