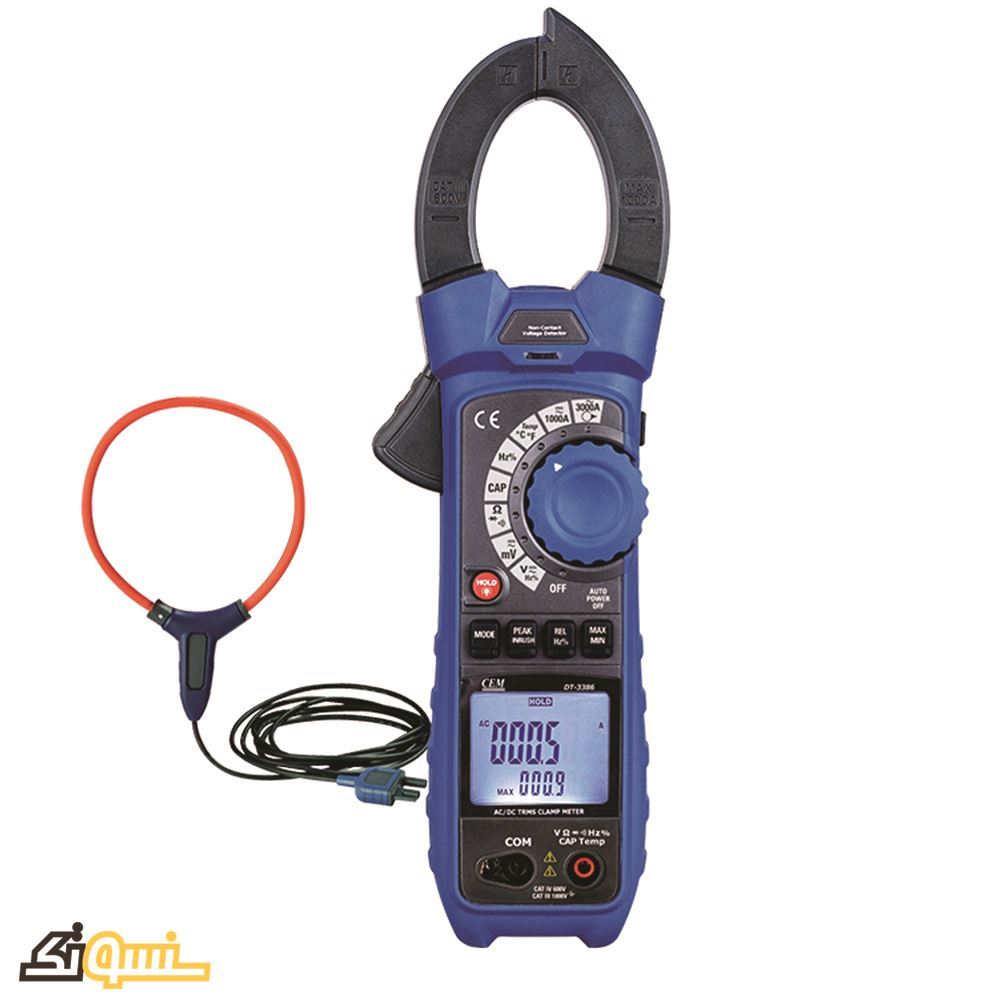

DT-3386 Clamp Meter with Flexible clamp

Voltage AC/DC:1000V
Current DC/AC:1000A
Resistance up to 50MΩ
Temperature:1000ºC/ 1832ºF
Capacitance:5mF
Availability: Out of stock
Manufacturer: CEM
ریال

The 3385 series clamp meters offer all needed features for measurement, design for perfectly handhold and tight place testing. A large backlit display (on most models) is easy to see and a handy Display Hold keeps measurements on the display. Flexible current probe expands the measurement range to 2500ACA.

Features

AC/DC Current measurement

50000 LCD display counts with backlight

3000A ACA Flexible clamp

AC True RMS

Flashlight

Data Hold & Peak Hold

Max /Min

REL (Zero) Function

Auto Power Off

Low battery indication

1.9” (48mm) Jaw opening

NCV Detection & flashlight

Inrush Current

Size(HxWxD): 230mm x 76mm x 40mm

Weight: 315g





The 3385 series clamp meters offer all needed features for measurement, design for perfectly handhold and tight place testing. A large backlit display (on most models) is easy to see and a handy Display Hold keeps measurements on the display. Flexible current probe expands the measurement range to 2500ACA.

Features

AC/DC Current measurement

50000 LCD display counts with backlight

3000A ACA Flexible clamp

AC True RMS

Flashlight

Data Hold & Peak Hold

Max /Min

REL (Zero) Function

Auto Power Off

Low battery indication

1.9” (48mm) Jaw opening

NCV Detection & flashlight

Inrush Current

Size(HxWxD): 230mm x 76mm x 40mm

Weight: 315g





Products specifications
Attribute name Attribute value
Producer CEM
Made in Hong Kong
device type Portable
قطر خارجی 48mm Jaw opening
DC voltage 1000V
AC voltage 1000V
DC Current 1000A
AC Current 1000A
Range of resistance measurements 50MΩ
Temperature range 1000ºC/ 1832ºF
Frequency range measurement 10MHz
Capacitor Measuring Range 5mF
AC Current ACA flexible clamp 3000A
Dimensions 230mm x 76mm x 40mm
Weight 315g
