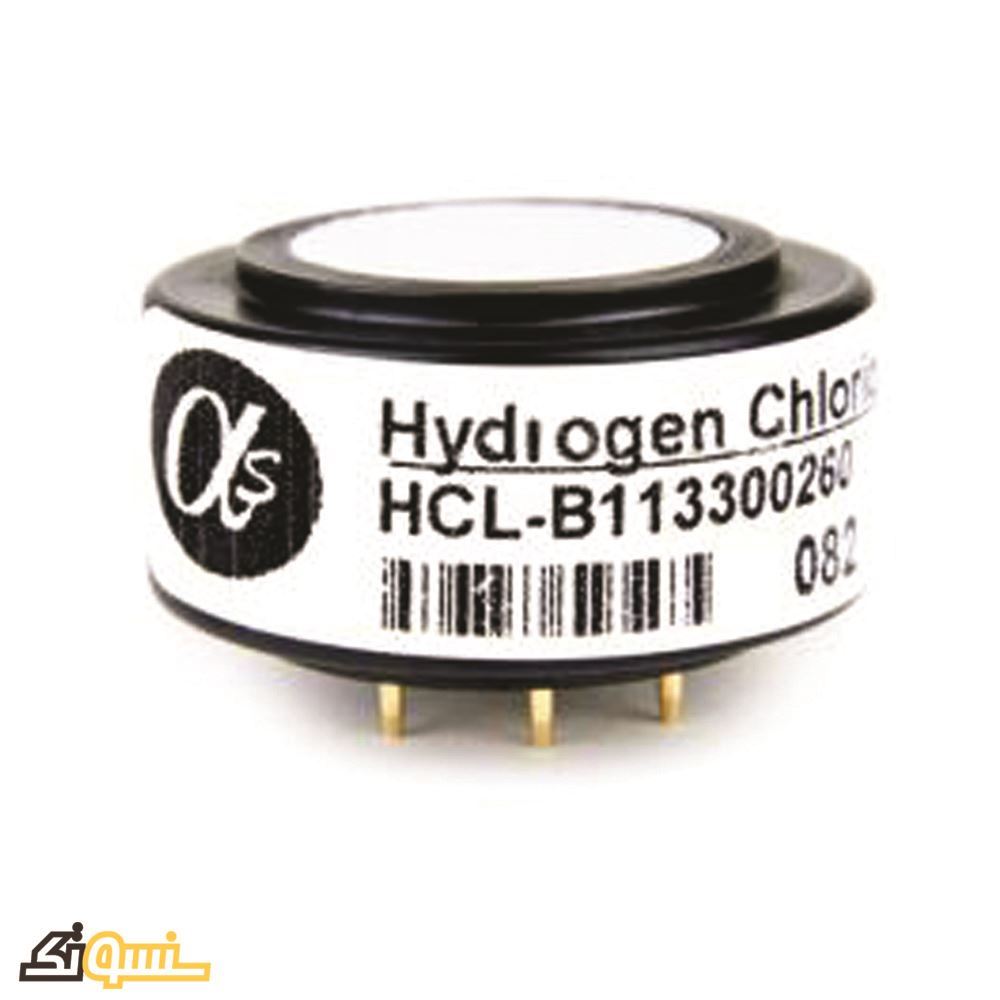

HCL Sensor HCL-B1

Range: 100ppm HCl limit of performance warranty
Sensitivity: 150 to 250 nA/ppm in 25ppm HCl
Response time t90: < 200 (s) from zero to 25ppm HCl
Resolution: < 0.1 RMS noise (ppm equivalent)
Availability: Out of stock
ریال

Alphasense is expanding its line of electrochemical toxic gas sensors to address industry-specific requirements, including emissions monitoring, process safety, environmental monitoring and VOCs.The HCL sensor also detects Hydrogen Bromide (HBr). HCL-B1 Hydrogen Chloride Sensor price is available in sensotec website.

Features:

Range: 100ppm HCl limit of performance warranty
Sensitivity: 150 to 250 nA/ppm in 25ppm HCl
Response time t90: < 200 (s) from zero to 25ppm HCl

HCL-B1 Hydrogen Chloride Sensor HCL Sensor PERFORMANCE
Sensitivity nA/ppm in 25ppm HCl 150 to 250
Response time t90 (s) from zero to 25ppm HCl < 200
Zero current ppm equivalent in zero air 0 to 3
Resolution RMS noise (ppm equivalent) < 0.1
Range ppm HCl limit of performance warranty 100
Linearity ppm error at full scale, linear at zero, 40ppm HCl 0 to 6
Overgas limit maximum ppm for stable response to gas pulse 200

Alphasense is expanding its line of electrochemical toxic gas sensors to address industry-specific requirements, including emissions monitoring, process safety, environmental monitoring and VOCs.The HCL sensor also detects Hydrogen Bromide (HBr). HCL-B1 Hydrogen Chloride Sensor price is available in sensotec website.

Features:

Range: 100ppm HCl limit of performance warranty
Sensitivity: 150 to 250 nA/ppm in 25ppm HCl
Response time t90: < 200 (s) from zero to 25ppm HCl

HCL-B1 Hydrogen Chloride Sensor HCL Sensor PERFORMANCE
Sensitivity nA/ppm in 25ppm HCl 150 to 250
Response time t90 (s) from zero to 25ppm HCl < 200
Zero current ppm equivalent in zero air 0 to 3
Resolution RMS noise (ppm equivalent) < 0.1
Range ppm HCl limit of performance warranty 100
Linearity ppm error at full scale, linear at zero, 40ppm HCl 0 to 6
Overgas limit maximum ppm for stable response to gas pulse 200
Products specifications
Attribute name Attribute value
Producer alphasense
Made in England
device type Sensor
Sensor Type HCL
Gas Measurement Range 100ppm HCl limit of performance warranty
Response time < 200 (s) from zero to 25ppm HCl
Working temperature -30 to +50°C
Working humidity 15 to 90 % rh continuous
Weight < 13 g
