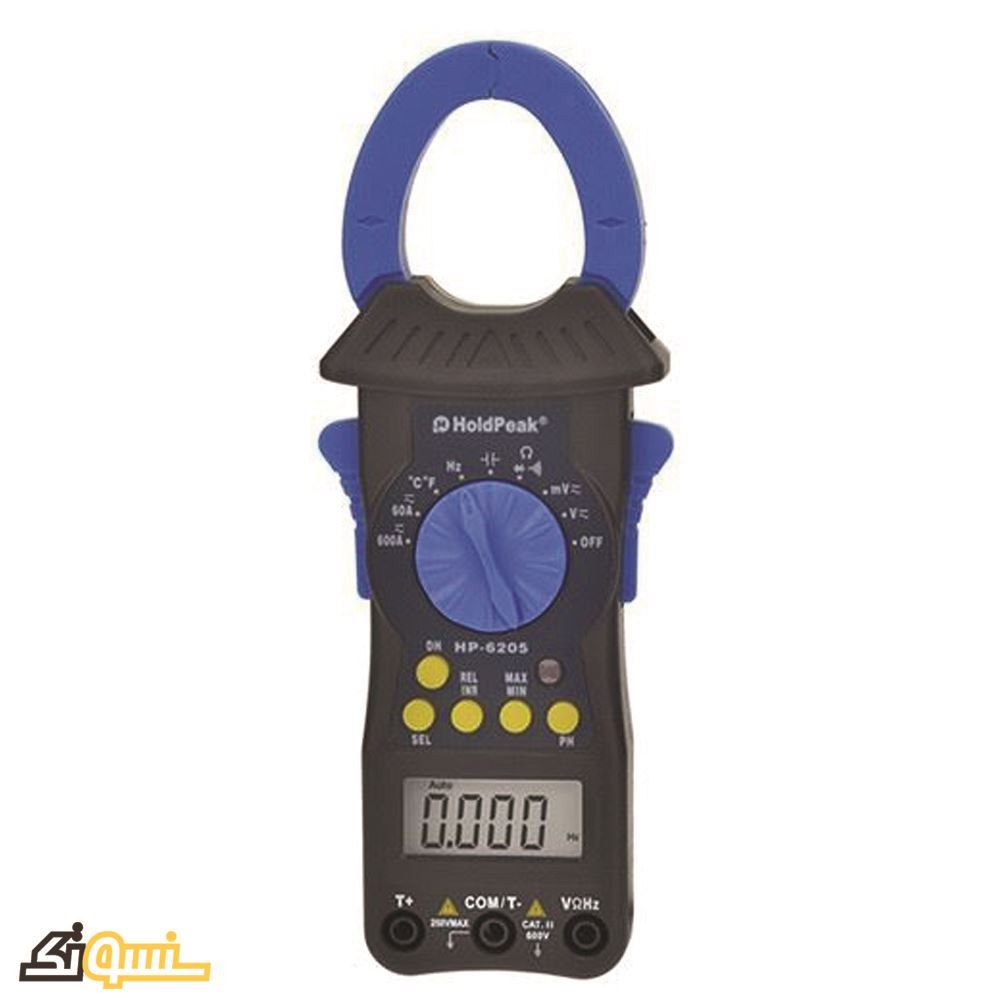

HP-6205 Clamp Meter

DC/AC Voltage:600V
DC/AC Current:60A~400A
Resistance :600Ω~60MΩ
Capacitance : 9.99nF~99.9mF
Temperature : -20℃~1000℃
Frequency:10Hz~10MHz
Availability: Out of stock
Manufacturer: HoldPeak
ریال

The auto range & auto power off clamp multimeter is characterized at doubleopen jaw , portable and stable performance. Using 6000 counts digit LCD monitor with character 12.5mm high. With overall circuitry design centering on large-scaleIC A/D converters in conjunction and over-load protection circuit, the meters giveexcellent performance and  exquisite making as a handy utility instrument.The meters can be used to measure DC & AC voltage, DC & AC current,resistance, capacitor, frequency, temperature, positive diode voltage fall and audible  continuity.

Basic function                     Range
DC Voltage                         600V
AC Voltage                         600V
DC Current                      60A~400A
AC Current                      60A~400A
Resistance                      600Ω~60MΩ
Capacitance                   9.99nF~99.9mF
Temperature                   -20℃~1000℃
Frequency                       10Hz~10MHz
Duty Cycle                         1%~99%

Express function

Display 6000
Range Select                   AUTO
Diode Test                          √
Continuity Buzzer               √
Data Hold                           √
Auto Back-Light                 √
Auto Power Off                  √
Relative Value                   √
Ture RMS                         √
Inrush Current Test           √
℃/℉                                   √

SIZE:

Battery Type      9V(6F22)x1
Dimension        225x97x40mm
Weight              450g
Ctn Size            478x330x330mm
Q'TY / Ctn         45
GW/NW            13/12Kg

The auto range & auto power off clamp multimeter is characterized at doubleopen jaw , portable and stable performance. Using 6000 counts digit LCD monitor with character 12.5mm high. With overall circuitry design centering on large-scaleIC A/D converters in conjunction and over-load protection circuit, the meters giveexcellent performance and  exquisite making as a handy utility instrument.The meters can be used to measure DC & AC voltage, DC & AC current,resistance, capacitor, frequency, temperature, positive diode voltage fall and audible  continuity.

Basic function                     Range
DC Voltage                         600V
AC Voltage                         600V
DC Current                      60A~400A
AC Current                      60A~400A
Resistance                      600Ω~60MΩ
Capacitance                   9.99nF~99.9mF
Temperature                   -20℃~1000℃
Frequency                       10Hz~10MHz
Duty Cycle                         1%~99%

Express function

Display 6000
Range Select                   AUTO
Diode Test                          √
Continuity Buzzer               √
Data Hold                           √
Auto Back-Light                 √
Auto Power Off                  √
Relative Value                   √
Ture RMS                         √
Inrush Current Test           √
℃/℉                                   √

SIZE:

Battery Type      9V(6F22)x1
Dimension        225x97x40mm
Weight              450g
Ctn Size            478x330x330mm
Q'TY / Ctn         45
GW/NW            13/12Kg

Products specifications
Attribute name Attribute value
Made in China
Producer HoldPeak
device type Portable
Display screen Max LCD display: 6000 counts digit.
قطر خارجی Clamp opening size: 38mm.
Powered by 1.5V×3 “AAA” R03P battery
Working temperature 0℃ to 40℃
Storage temperature -10℃ to 50℃
DC voltage 600V
AC voltage 600V
DC Current 60A~400A
AC Current 60A~400A
Range of resistance measurements 600Ω~60MΩ
Capacitor Measuring Range 9.99nF~99.9mF
Frequency range measurement 10Hz~10MHz
Temperature range -20℃~1000℃
Dimensions 225*97*40 mm
Weight 450g
