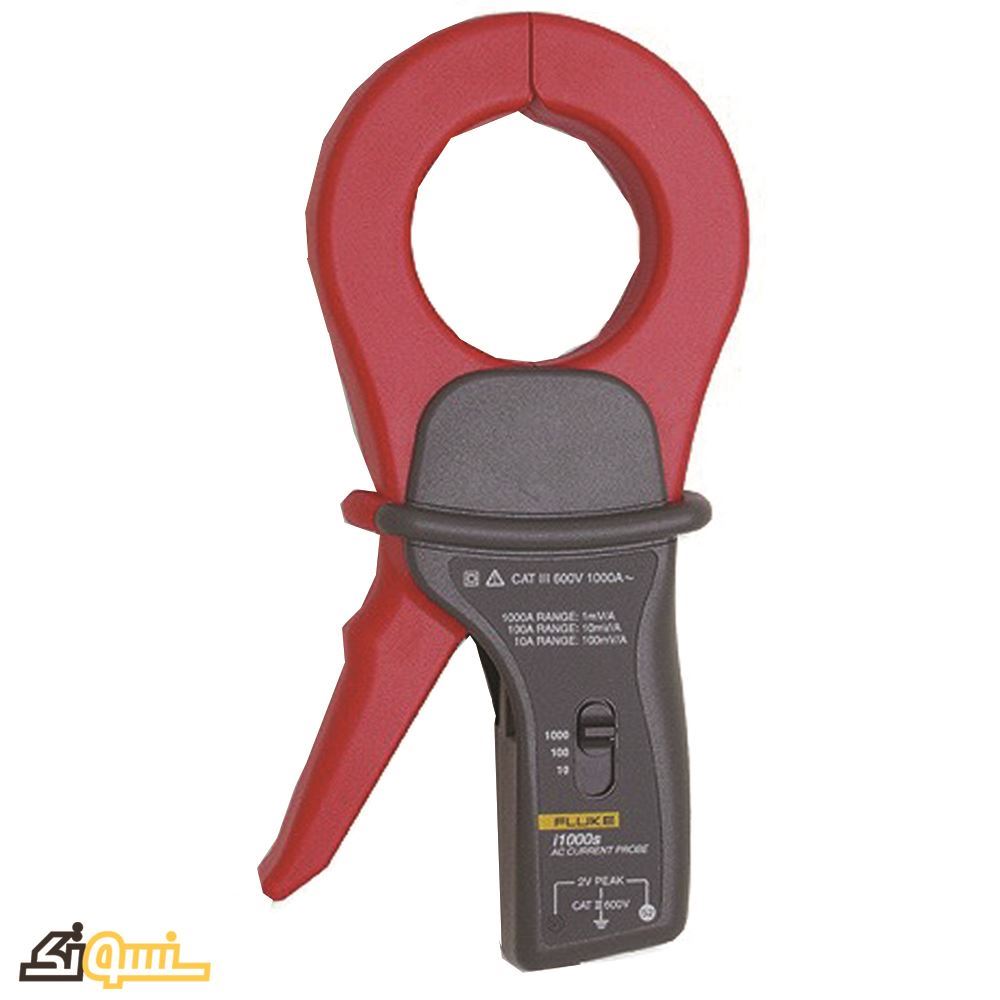

Fluke I1000S AC Current Clamp

Current range: 0.1A to 1000A AC
Frequency range: 10 Hz to 100 kHz
Availability: Out of stock
Manufacturer: Fluke
ریال

The Fluke i1000s is ideal for measuring distorted current waveforms and harmonics. it is a clamp-on ac current probe designed to expand oscilloscope applications in industrial and power environments.

Features:

Safety rating(s): CAT III 600V

passive filter to eliminate noise

Connects directly to oscilloscopes

Current range: 0.1A to 1000A AC switchable

Frequency range: 10 Hz to 100 kHz



The Fluke i1000s is ideal for measuring distorted current waveforms and harmonics. it is a clamp-on ac current probe designed to expand oscilloscope applications in industrial and power environments.

Features:

Safety rating(s): CAT III 600V

passive filter to eliminate noise

Connects directly to oscilloscopes

Current range: 0.1A to 1000A AC switchable

Frequency range: 10 Hz to 100 kHz



Products specifications
Attribute name Attribute value
Producer Fluke
Made in United States of America
device type Portable
AC Current from 100 mA to 1000 A
Frequency range measurement 5 Hz to 100 kHz
درجه حفاظت(Ip) CAT III, 600 V CAT IV, 300V
AC voltage max:600V
قطر خارجی Maximum conductor diameter:54 mm
