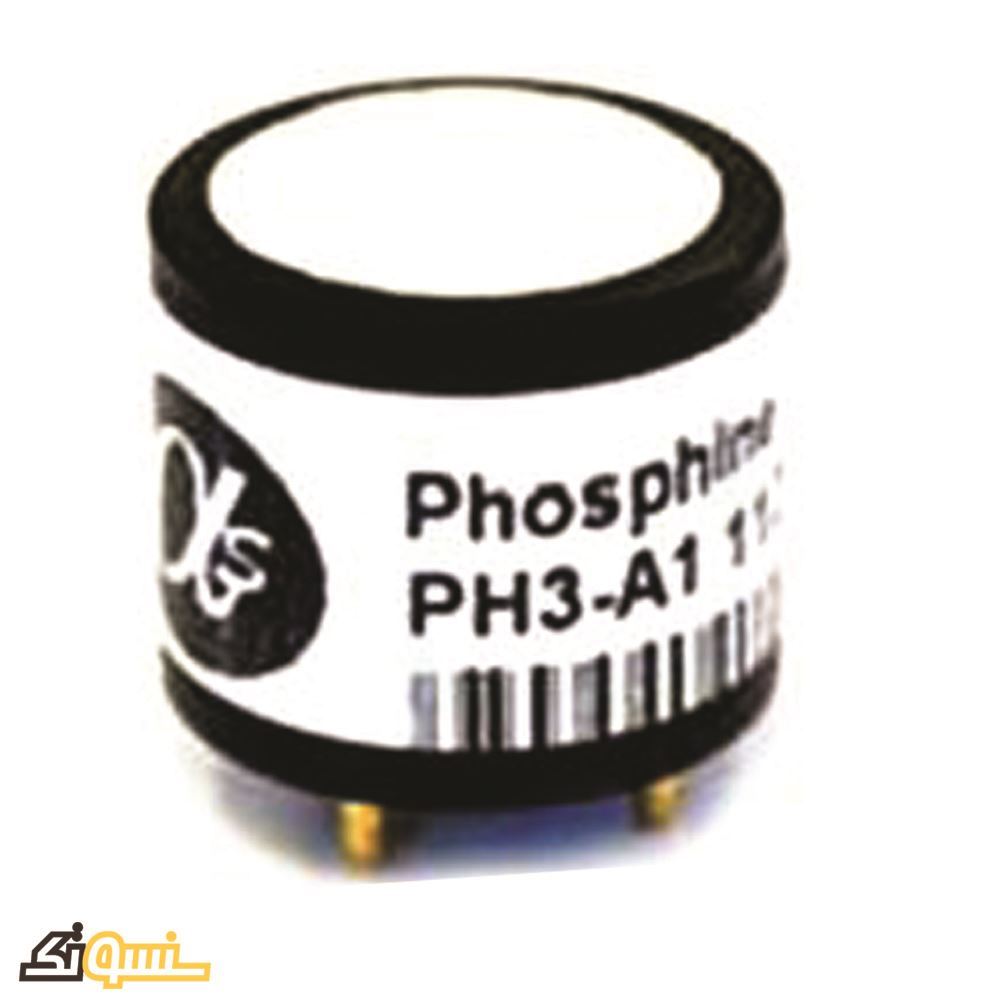

PH3 Sensor PH3-A1

Range: 10 ppm PH3 limit of performance warranty
Sensitivity: 550 to 900 nA/ppm in 11ppm PH3
Response time t90: < 25 (s) from zero to 5ppm PH3
Availability: Out of stock
Manufacturer: alphasense
ریال

Alphasense is expanding its line of electrochemical toxic gas sensors to address industry-specific requirements, including emissions monitoring, process safety, environmental monitoring and VOCs.Our Phosphine sensors cover all hydrides: Silane (SiH4), Diborane (B2H6), Germane (GeH4) and Phosphine (PH3) for the semiconductor industry.PH3-A1 Phosphine Sensor price is available in sensotec website.

Features:

Range: 10 ppm PH3 limit of performance warranty
Sensitivity: 550 to 900 nA/ppm in 11ppm PH3
Response time t90: < 25 (s) from zero to 5ppm PH3

Alphasense is expanding its line of electrochemical toxic gas sensors to address industry-specific requirements, including emissions monitoring, process safety, environmental monitoring and VOCs.Our Phosphine sensors cover all hydrides: Silane (SiH4), Diborane (B2H6), Germane (GeH4) and Phosphine (PH3) for the semiconductor industry.PH3-A1 Phosphine Sensor price is available in sensotec website.

Features:

Range: 10 ppm PH3 limit of performance warranty
Sensitivity: 550 to 900 nA/ppm in 11ppm PH3
Response time t90: < 25 (s) from zero to 5ppm PH3

Products specifications
Attribute name Attribute value
Producer alphasense
Made in England
device type Sensor
Sensor Type PH3
Gas Measurement Range 10 ppm PH3 limit of performance warranty
Response time < 25 (s) from zero to 5ppm PH3
Working temperature -30 to 50°C
Working humidity 20 to 90 % rh continuous
Weight < 6g
