PROVA 23 Power Harmonics

Active (W, KW, HP), reactive (VAR, KVAR) and apparent (VA, KVA) power
Power factor (PF), phase angle (Φ), and energy
Measurement of standby power consumption for IT products
Non-interrupted AC current harmonic analysis

Availability: Out of stock

Be the first to review this product

Qty:

Old price: 63,500,000 ریال

Price: ریال

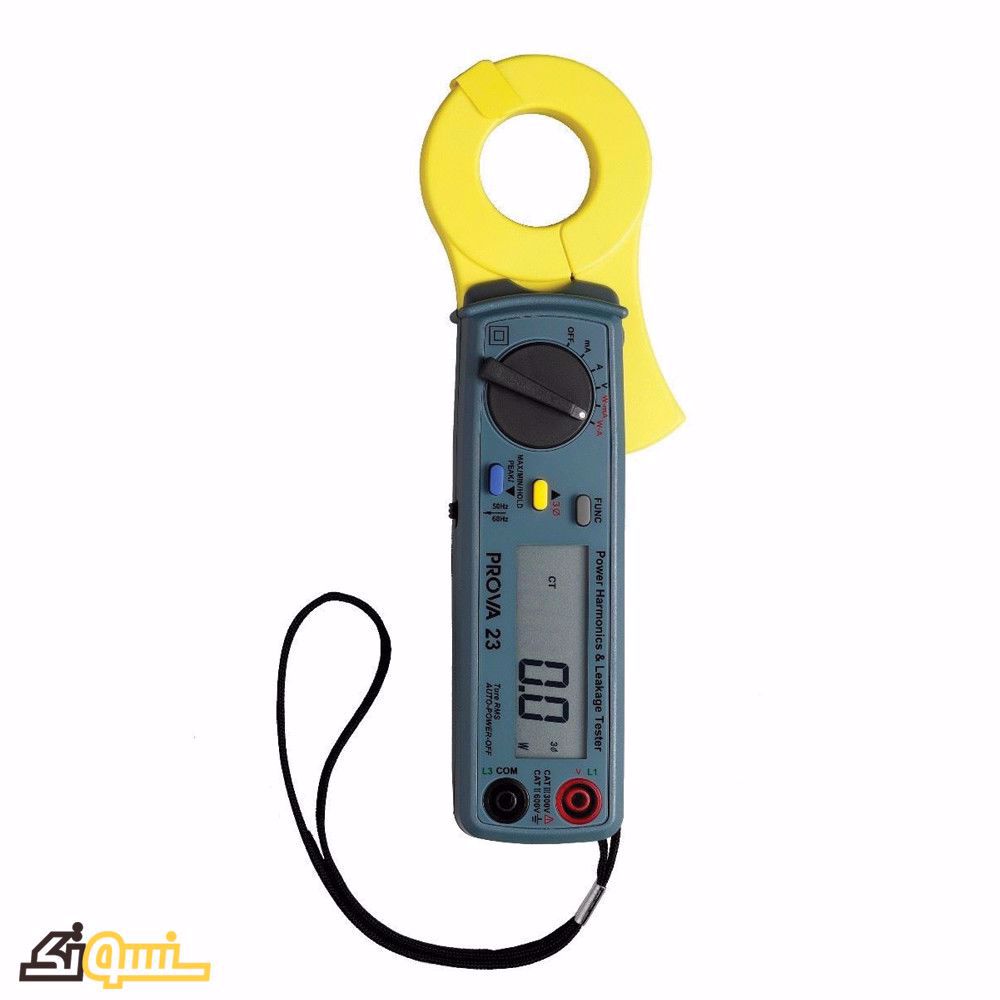

Model 23 Power Harmonics and Leakage Tester

Conductor Size	30mm (approx.)
Battery Type	1.5V SUM-3 x 2
Display	4+2+2 digits LCD
Power Consumption	5mA (approx.)
Auto-Power-Off	30 minutes
No. Of Samples/Period	512 (V & A), 256 (W)
LCD update rate	2 times / sec.
Weight	200g (battery included)
Operating Temperature	-10 ° C to 50° C
Operating Humidity	< 85% relative
Storage Temperature	-20° C to 60° C
Storage Humidity	< 75% relative
Dimension	210 (L) x 62 (W) x 35.6mm (H), 8.3" (L) x 2.5" (W) x 1.4" (H)
Accessories	test leads, Carrying bag x 1, Users manual x 1, Batteries 1.5V x 2
Option	alligator clips

Model 23 Power Harmonics and Leakage Tester

Conductor Size	30mm (approx.)
Battery Type	1.5V SUM-3 x 2
Display	4+2+2 digits LCD
Power Consumption	5mA (approx.)
Auto-Power-Off	30 minutes
No. Of Samples/Period	512 (V & A), 256 (W)
LCD update rate	2 times / sec.
Weight	200g (battery included)
Operating Temperature	-10 ° C to 50° C
Operating Humidity	< 85% relative
Storage Temperature	-20° C to 60° C
Storage Humidity	< 75% relative
Dimension	210 (L) x 62 (W) x 35.6mm (H), 8.3" (L) x 2.5" (W) x 1.4" (H)
Accessories	test leads, Carrying bag x 1, Users manual x 1, Batteries 1.5V x 2
Option	alligator clips

Products specifications

Attribute name	Attribute value
Made in	Taiwan
Producer	TES
device type	Portable
DC Current	100~0.30A
AC voltage	0.1V~600V
Power measurements	0.001~9999kw
Dimensions	2106235.6mm
Weight	200gr
