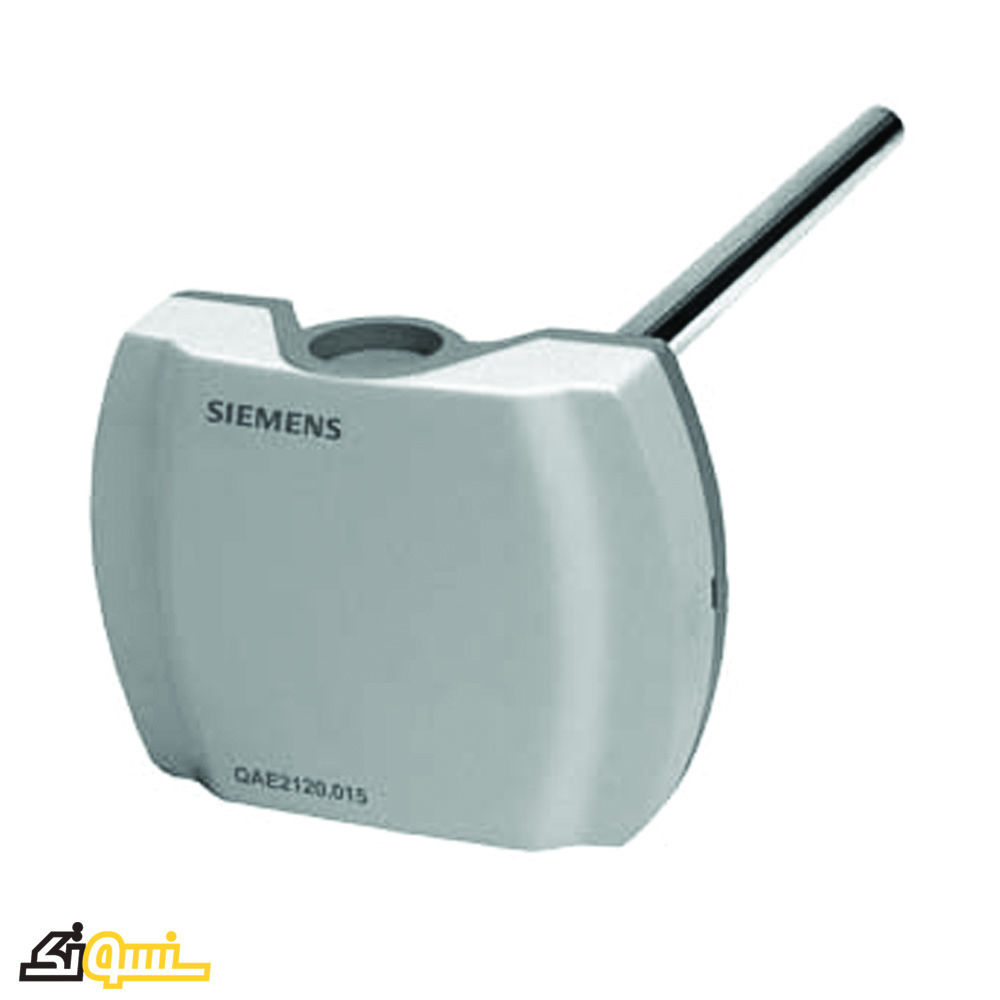

QAE21... temperature sensor

QAE21... different models:
QAE2110.010,QAE2110.015,QAE2111.010,QAE2111.015
QAE2112.010,QAE2112.015,AE2120.010,QAE2120.015
QAE2121.010,QAE2121.015,QAE2122.013
QAE2130.010,QAE2130.015,QAE2140.010
Availability: Out of stock
Manufacturer: Siemens
ریال

QAE21 Passive sensors for acquiring the water temperature in pipes and tanks. The QAE21… immersion temperature sensors are for use in ventilation and air conditioning plants.

QAE Features:

Measuring range

-30...+125 °C for NTC-Type

-30...+130 °C other types

Time constant

With protection pocket: approx. 30 s

Without protection pocket: approx. 8 s

controlling or limiting the flow temperature

limiting the return temperature

controlling the d.h.w. temperature



QAE21 Passive sensors for acquiring the water temperature in pipes and tanks. The QAE21… immersion temperature sensors are for use in ventilation and air conditioning plants.

QAE Features:

Measuring range

-30...+125 °C for NTC-Type

-30...+130 °C other types

Time constant

With protection pocket: approx. 30 s

Without protection pocket: approx. 8 s

controlling or limiting the flow temperature

limiting the return temperature

controlling the d.h.w. temperature



Products specifications
Attribute name Attribute value
Producer SIEMENS
Made in آلمان
device type Sensor
Sensor Type Temperature
Temperature range -30C...+125C
درجه حفاظت(Ip) IP54
