QSM2100

acquire the PM2.5 and PM10 concentration
Measuring range:0…500 μg/m3
Unit to unit variability:±15% of reading
Measure relative humidity and temperature
Availability: Out of stock
Manufacturer: Siemens
ریال

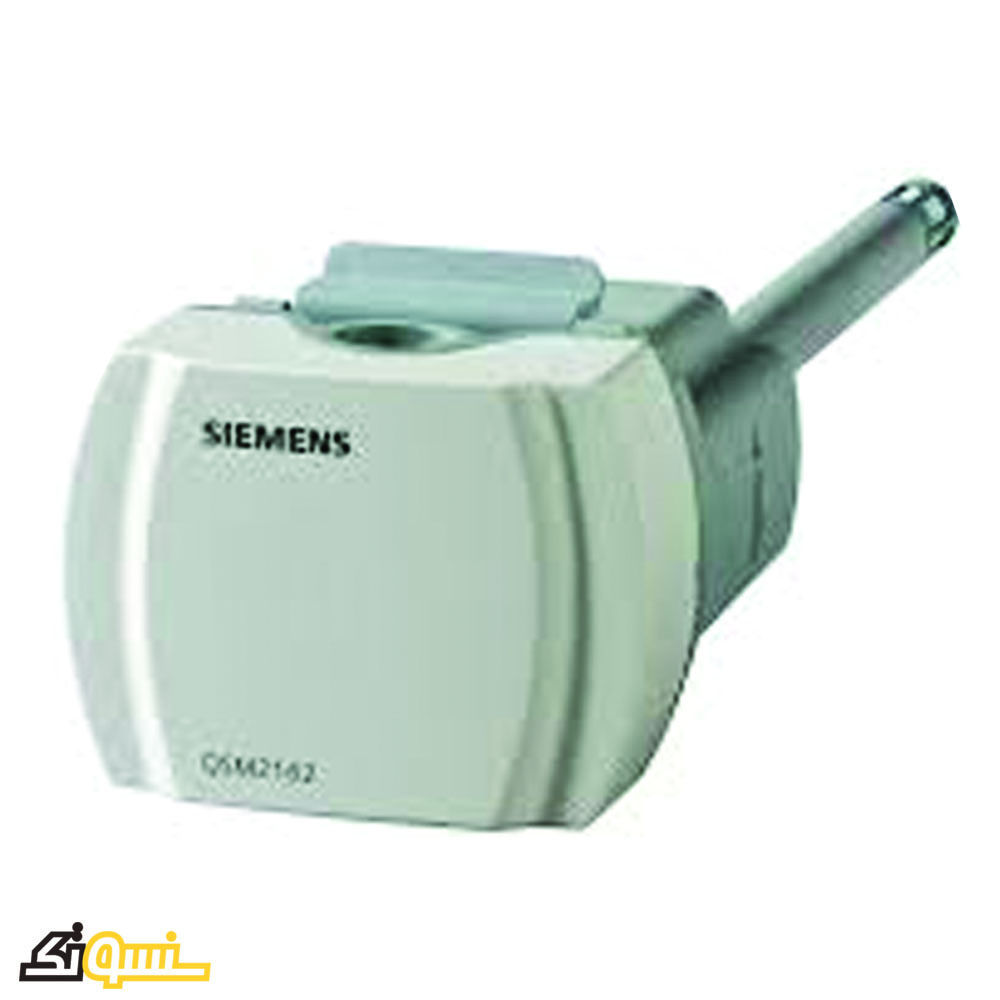

Fine Dust Room Sensors QSM2162 acquire the PM2.5 and PM10 concentration in the room. The QSM 2162 fine dust room sensor is designed to measure and transmit indoor concentrations of PM2.5 and PM10.

QSM2162 Fine dust duct sensor Features:

Temperature Measuring range 0…50 °C/-35…35 °C

Humidity Measuring range:0-100%RH

Measuring range:0…500 μg/m3

Unit to unit variability:±15% of reading

Operating voltage AC 24 V or DC 15…35 V

Signal outputs DC 0...10 V or DC 0...5 V or 4...20 mA adjustable

Range of use -5…45 °C / 5…95 % r.h. (non-condensing)

2.4-inch color LCD screen for PM2.5 & PM10 values

Micro USB DC 5V for display

3 selectable Air Quality Index classes

Fine Dust Room Sensors QSM2162 acquire the PM2.5 and PM10 concentration in the room. The QSM 2162 fine dust room sensor is designed to measure and transmit indoor concentrations of PM2.5 and PM10.

QSM2162 Fine dust duct sensor Features:

Temperature Measuring range 0…50 °C/-35…35 °C

Humidity Measuring range:0-100%RH

Measuring range:0…500 μg/m3

Unit to unit variability:±15% of reading

Operating voltage AC 24 V or DC 15…35 V

Signal outputs DC 0...10 V or DC 0...5 V or 4...20 mA adjustable

Range of use -5…45 °C / 5…95 % r.h. (non-condensing)

2.4-inch color LCD screen for PM2.5 & PM10 values

Micro USB DC 5V for display

3 selectable Air Quality Index classes

Products specifications
Attribute name Attribute value
Producer SIEMENS
Made in Germany
device type Sensor
Sensor Type Dust and Particles
Sensor Type Temperature
Sensor Type Humidity
رنج اندازه گیری ذرات 0~500ug/m3
Temperature range 0-50°C/-35-35 °C
Humidity Measure Range 0-100٪RH
