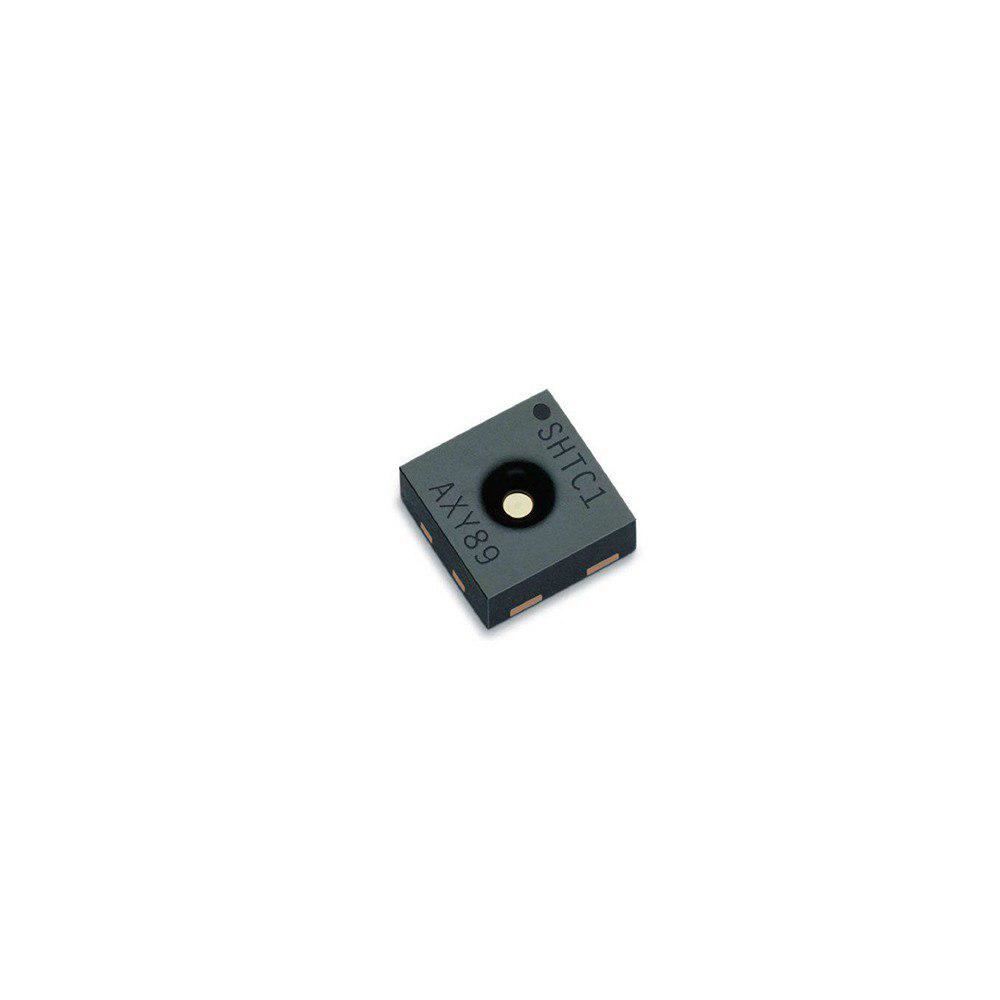

Digital Humidity Sensor SHTC1

Digital Humidity & temprature
item number:3021
Availability: Out of stock
ریال

The SHTC1 is a digital humidity sensor designed especially for high-volume consumer electronics applications. This humidity sensor is strictly designed to overcome conventional limits for size, power consumption, and price-performance ratio, in order to fulfill the current and future requirements of the consumer electronics market.

Sensirion’s CMOSens® technology offers a complete sensor system on a single chip, consisting of a capacitive humidity sensor, a band-gap temperature sensor, analog and digital signal processing, A/D converter, calibration data memory, and a digital communication interface supporting I2C fast mode. The ultra-small, 2 × 2 × 0.75 mm3DFN package enables applications to be placed in even the most limited of spaces. The sensor covers a humidity measurement range of 0 to 100 %RH and a temperature measurement range of –30°C to 100°C with a typical accuracy of ±3 %RH and ±0.3°C.

The operating voltage of 1.8 V and an energy budget below 1 µJ per measurement make the SHTC1 suitable for mobile or wireless applications running on the lowest power budgets. With the industry-proven quality and reliability of Sensirion’s humidity sensorsand constant accuracy over a large measurement range, the SHTC1 humidity sensor offers an unprecedented price-performance ratio. Tape and reel packaging together with suitability for standard SMD assembly processes make the SHTC1 predestined for high-volume applications.

Interface

I²C

Supply voltage

1.8 V

Power consumption

2µW (at 1 reading per second in low power mode)

Measuring range (RH)

0 - 100% relative humidity

Measuring range (T)

-30 to +100°C (-22 to +212°F)

Response time (RH)

8s (tau63%)



The SHTC1 is a digital humidity sensor designed especially for high-volume consumer electronics applications. This humidity sensor is strictly designed to overcome conventional limits for size, power consumption, and price-performance ratio, in order to fulfill the current and future requirements of the consumer electronics market.

Sensirion’s CMOSens® technology offers a complete sensor system on a single chip, consisting of a capacitive humidity sensor, a band-gap temperature sensor, analog and digital signal processing, A/D converter, calibration data memory, and a digital communication interface supporting I2C fast mode. The ultra-small, 2 × 2 × 0.75 mm3DFN package enables applications to be placed in even the most limited of spaces. The sensor covers a humidity measurement range of 0 to 100 %RH and a temperature measurement range of –30°C to 100°C with a typical accuracy of ±3 %RH and ±0.3°C.

The operating voltage of 1.8 V and an energy budget below 1 µJ per measurement make the SHTC1 suitable for mobile or wireless applications running on the lowest power budgets. With the industry-proven quality and reliability of Sensirion’s humidity sensorsand constant accuracy over a large measurement range, the SHTC1 humidity sensor offers an unprecedented price-performance ratio. Tape and reel packaging together with suitability for standard SMD assembly processes make the SHTC1 predestined for high-volume applications.

Interface

I²C

Supply voltage

1.8 V

Power consumption

2µW (at 1 reading per second in low power mode)

Measuring range (RH)

0 - 100% relative humidity

Measuring range (T)

-30 to +100°C (-22 to +212°F)

Response time (RH)

8s (tau63%)



Products specifications
Attribute name Attribute value
Sensor Type Temperature & Humidity
Temperature Environment Temperature
Humidity Environmental Humidty
Made in Switzerland
Powered by 1.8V
Power 2µW (at 1 reading per second in low power mode)
Response time 8 sec (tau63%)
Storage temperature 10-50 °C
Communication I2c
Dimensions 2 × 2 × 0.75 mm3
