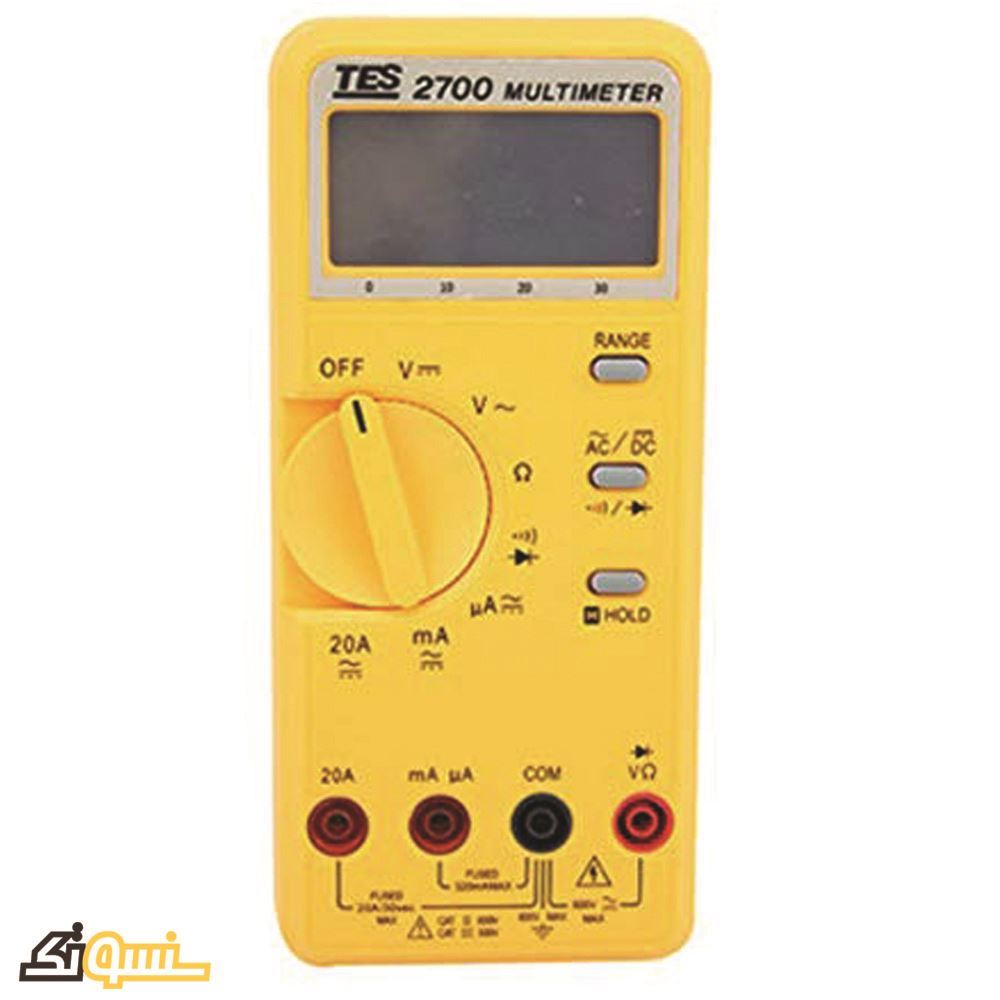

TES-2700 LCR Multimeter

Voltage DC:320m/3.2/32/1000V
Voltage AC:3.2/32/320/750V
Current:µ320 /3.2m/32m/320m/20A
resistance:320/3.2k/32k/320k/3.2M/30MΩ
Availability: Out of stock
Manufacturer: TES
12,800,000 ریال
ریال

MODEL TES-2700

TES-2712 is a compact device which combines the majority of measurable parameters. Wide measurement rages, high level of reliability, complete safety against overload in case of a wrong connection, ergonomic design meet the needs of the most hard-to-please customer.

Features:
Autoranging and Auto-power-off
3200 count LCD with analog bar-graph
Data-hold mode available at ohms.
Overload protection up to 600 Vrms

Specifications:

Voltage (AC/DC) Range: 320m/3.2/32/1000VDC
3.2/32/320/750VAC
Accuracy
DC - 0.5% rdg + 2 dgts
AC - 1.2% rdg + 4 dgts
(40-400Hz)
Input Impedance 10M
Current (AC/DC) Range: 320μ/3.2m/32m/320m/20A
Accuracy
DC - 1% rdg + 2 dgts
AC - 1.5% rdg + 5 dgts
(40-400Hz)
Resistance Range 320/3.2K/32K/320K/3.2M/30M
Accuracy 0.8% rdg + 2 dgts
Diode Test
Resolution 1mV
Accuracy 1% rdg + 2 dgts
Overload Protection 500Vrms
Continuity Beeper
Overload Protection 500Vrms

MODEL TES-2700

TES-2712 is a compact device which combines the majority of measurable parameters. Wide measurement rages, high level of reliability, complete safety against overload in case of a wrong connection, ergonomic design meet the needs of the most hard-to-please customer.

Features:
Autoranging and Auto-power-off
3200 count LCD with analog bar-graph
Data-hold mode available at ohms.
Overload protection up to 600 Vrms

Specifications:

Voltage (AC/DC) Range: 320m/3.2/32/1000VDC
3.2/32/320/750VAC
Accuracy
DC - 0.5% rdg + 2 dgts
AC - 1.2% rdg + 4 dgts
(40-400Hz)
Input Impedance 10M
Current (AC/DC) Range: 320μ/3.2m/32m/320m/20A
Accuracy
DC - 1% rdg + 2 dgts
AC - 1.5% rdg + 5 dgts
(40-400Hz)
Resistance Range 320/3.2K/32K/320K/3.2M/30M
Accuracy 0.8% rdg + 2 dgts
Diode Test
Resolution 1mV
Accuracy 1% rdg + 2 dgts
Overload Protection 500Vrms
Continuity Beeper
Overload Protection 500Vrms

Products specifications
Attribute name Attribute value
Producer TES
Made in Taiwan
device type Portable
Display screen 3200 count LCD with analog bar-graph
Battery 2 pcs of AAA 1.5V battery
Working temperature 0 to 40 C
Storage temperature -10 to 60 C
Working humidity below 80% RH
DC voltage 320m/3.2/32/1000V
AC voltage 3.2/32/320/750V
DC Current 320μ/3.2m/32m/320m/20A
AC Current 320μ/3.2m/32m/320m/20A
Range of resistance measurements 320/3.2K/32K/320K/3.2M/30M
Dimensions 180X82X38 mm
Weight 365g
