If, in your capacity as an HVAC engineer, you carry out fast check measurements in ventilation ducts or in rooms, then our testo 405 thermal anemometer is a must-have. The anemometer features a permanently mounted telescope and enables you to measure air flow, volumetric flow and air temperature. The measuring range for flow is between 0 to 10 m/s, volumetric flows are calculated up to 99,990 m3/h.
The extendible telescope (up to 300 mm) makes the thermal anemometer particularly suitable for flow measurements in ventilation ducts. The illuminated display can be swivelled into various positions, ensuring that the readings can be read off comfortably. The duct bracket (included in the delivery) offers key practical advantages. You can use this to optimally position the telescope in the ventilation duct and obtain precise measurement results.
Since the testo 405 thermal anemometer measures particularly accurately in the range between 0 and 2 m/s, you can also use it to measure the air velocity in rooms. Low air velocities, at draughty windows for example, are quickly located and accurately measured using the anemometer.
Integrated sensor protection: when you are not using the testo 405 thermal anemometer, the rotating protective cap protects the flow sensor from mechanical stress.

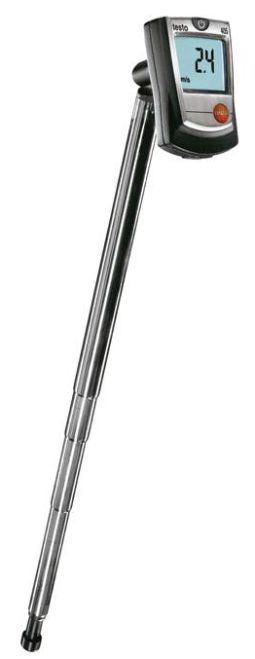

testo 405 thermal anemometer with permanently mounted telescope, including duct bracket, attachment clip and batteries.
| Temperature - NTC |
|---|
|
Measuring range
|
-20 to +50 °C
|
|
Accuracy
|
±0.5 °C
|
|
Resolution
|
0.1 °C
|
| Velocity - Thermal anemometer |
|---|
|
Measuring range
|
0 to 5 m/s (-20 to 0 °C)
0 to 10 m/s (0 to +50 °C)
0 to 99990 m³/h
|
|
Accuracy
|
±(0.1 m/s + 5 % of mv) (0 to 2 m/s)
±(0.3 m/s + 5 % of mv) (Remaining Range)
|
|
Resolution
|
0.01 m/s
|
| General technical data |
|---|
|
Dimensions
|
490 x 37 x 36 mm
|
|
Operating temperature
|
0 to +50 °C
|
|
Battery type
|
3 AAA micro batteries
|
|
Battery life
|
Approx. 20 h
|
|
Display type
|
LCD
|
|
Length probe shaft
|
300 mm
|
|
Diameter probe shaft
|
16 mm
|
|
Diameter probe shaft tip
|
12 mm
|
|
Storage temperature
|
-20 to +70 °C
|
|
Weight
|
115 g (with batteries, without packaging)
|
