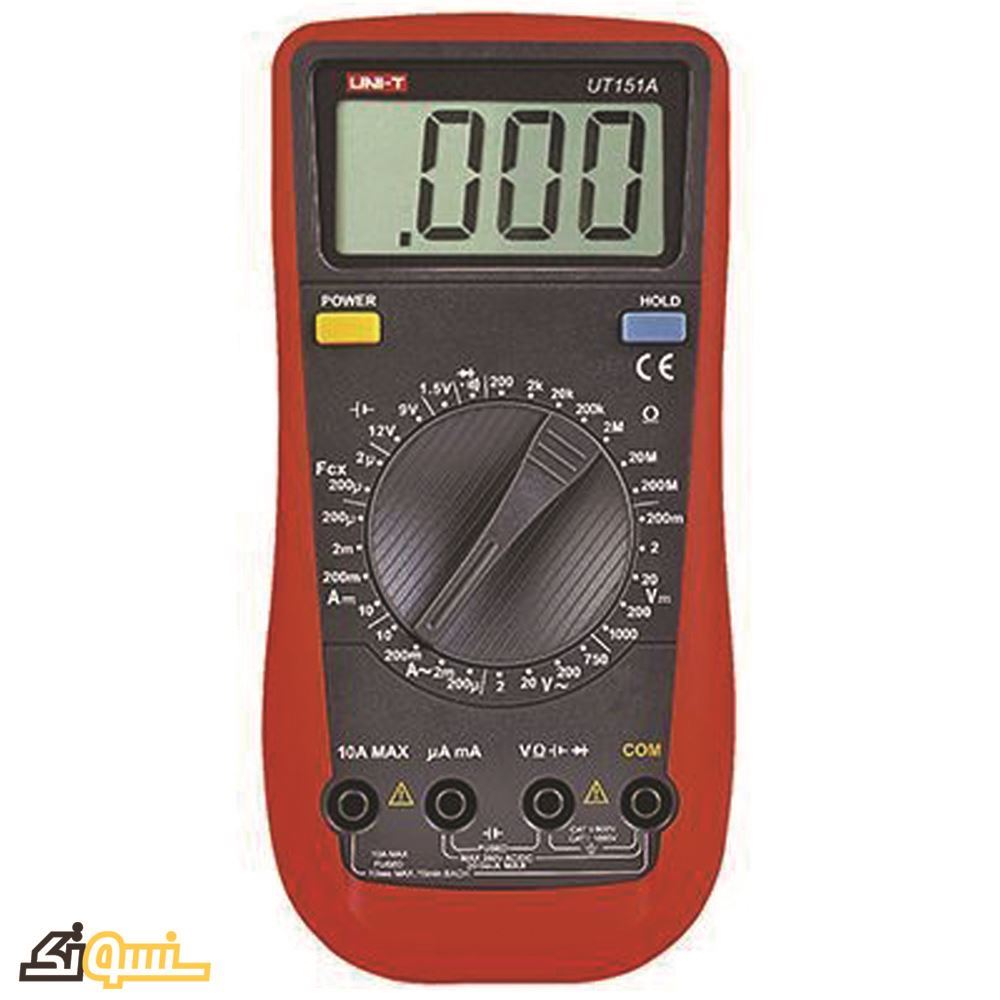

UT151A Modern Digital Multimeter

DC Voltage:200mV/200V/600V
AC Voltage:2V/20V/200V/600V
AC and DC Current:200uA/200mA/10A
Resistanc :200Ω/2kΩ/2MΩ/20MΩ/200MΩ
Capacitance : 2μF/ 200μF
Availability: Out of stock
Manufacturer: Uni-Trend
ریال

UT151A Modern Digital Multimeter

UNI-T's UT151A is a 30 range digital mutimeter featuring 1.5V, 9V and 12V battery voltage measurement. Full range overload protection is provided.

Main Features

1. 30 ranges in function selection

2. Independent capacitance test socket used for measuring plug-in capacitance

3. 1.5V, 9V and 12V battery load test function

4. Data hold

5. Auto power off, low battery indication

6. Complies with CE directives

7. Complies with ETL directives

UT151A Modern Digital Multimeter

UNI-T's UT151A is a 30 range digital mutimeter featuring 1.5V, 9V and 12V battery voltage measurement. Full range overload protection is provided.

Main Features

1. 30 ranges in function selection

2. Independent capacitance test socket used for measuring plug-in capacitance

3. 1.5V, 9V and 12V battery load test function

4. Data hold

5. Auto power off, low battery indication

6. Complies with CE directives

7. Complies with ETL directives

Products specifications
Attribute name Attribute value
Producer UNI-T
Made in China
device type Portable
Display screen LCD Display layout with max 2000
Input impedance for DCV:≥10MΩ
Battery 9V battery (6F22)
DC voltage 200mV/2V/20V/200V/600V
AC voltage 2V/20V/200V/600V
DC Current 200uA/2mA/20mA/200mA/10A
AC Current 200uA/2mA/20mA/200mA/10A
Range of resistance measurements 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ
Capacitor Measuring Range 2μF/ 200μF
Dimensions 186mm X 91mm X39mm
Weight 300g
