UT171B Digital Multimeter

DC/AC voltage:400mV/4V/40V/400V/1000V
AC/DC current:400uA/4000uA/40mA/400mA/4A/10A
resistance:400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
capacitance:4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF
Frequency:10Hz~10MHz
Availability: Out of stock
Manufacturers: Uni-Trend , Uni-Trend
ریال

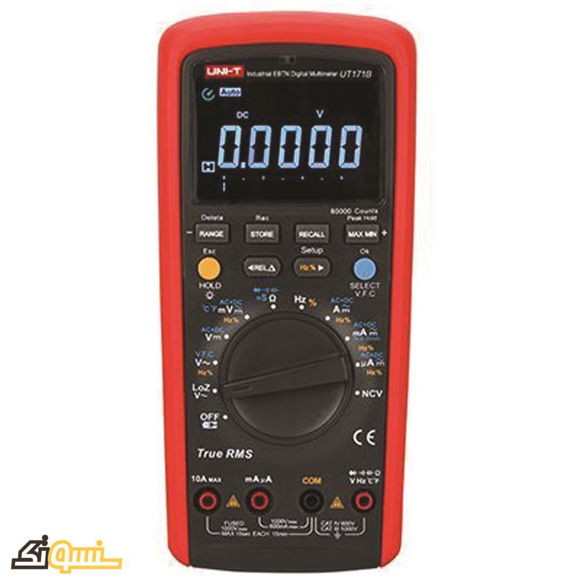

Industrial True RMS Digital Multimeter UT171B

UNI-T’s UT171B is a 60000 count True RMS auto range digital multimeter. Its display type is EBTN LCD which is great for working in dark places.

features

1. 60000 count

2. 4-5 times/s sampling rate

3. 4-20mA loop percentage measurement

4. AC+DC measurement

5. VFC low-pass filtering

6. LoZ low impedance input

7. NCV measurement

8. MAX/MIN/AVG modes

9. Peaks hold

10. Analog bar: more intuitive, faster observation of dynamic signals

11. Li-ion battery; 200h battery life

12. USB/Bluetooth communication

13. 9999 data storage

Industrial True RMS Digital Multimeter UT171B

UNI-T’s UT171B is a 60000 count True RMS auto range digital multimeter. Its display type is EBTN LCD which is great for working in dark places.

features

1. 60000 count

2. 4-5 times/s sampling rate

3. 4-20mA loop percentage measurement

4. AC+DC measurement

5. VFC low-pass filtering

6. LoZ low impedance input

7. NCV measurement

8. MAX/MIN/AVG modes

9. Peaks hold

10. Analog bar: more intuitive, faster observation of dynamic signals

11. Li-ion battery; 200h battery life

12. USB/Bluetooth communication

13. 9999 data storage

Products specifications
Attribute name Attribute value
Producer UNI-T
Made in Taiwan
device type Portable
Display screen LCD Display with max 60000 counts
DC voltage 600mV/6V/60V/600V/1000V
AC voltage 600mV/6V/60V/600V/750V
DC Current 600uA/6000uA/60mA/600mA/6A/10A
AC Current 600uA/6000uA/60mA/600mA/6A/10A
Range of resistance measurements 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ
Capacitor Measuring Range 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF
Frequency range measurement 10Hz~10MHz
Temperature range -40℃~1000℃
Sampling frequency 100KHz
Input impedance for DCV:Around 1GΩ
Battery 7.4V 2000mAh Li-ion Battery
Dimensions 206mm x 95mm x 55mm
Weight 384g
