UT281E Flex Clamp

AC current range:30A/300A/3000A, accuracy:±3%+5 AC current resolution:0.01A/0.1A/1A
Availability: Out of stock
Manufacturers: Uni-Trend , Uni-Trend
$

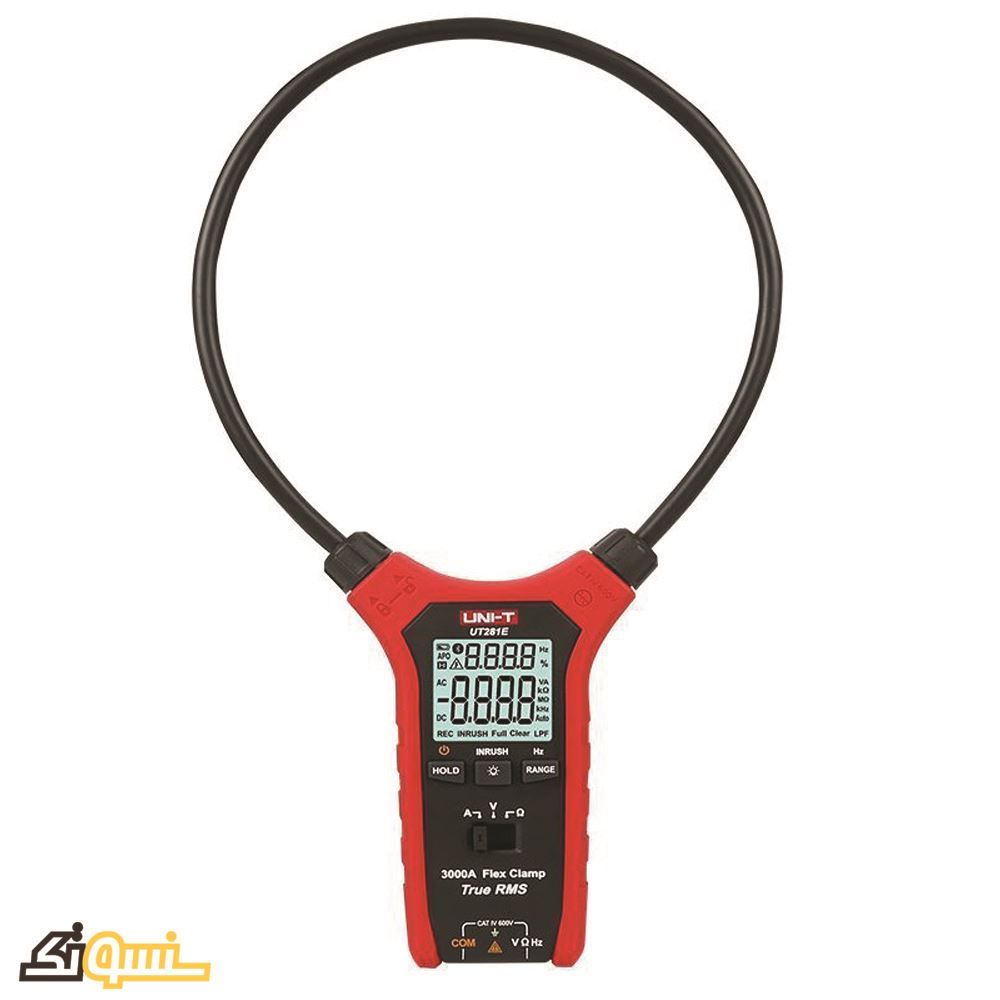

UT281E True RMS Flex Clamp

UT281E can measure large currents in various harsh and hard to reach environments. It is designed with Rogowski flex coil and can test up to 3000A AC current. UT281E can also measure AC voltage up to 600V.

Main features

1. 2m drop proof, ETL/Intertek certified 3rd edition CE

2. Coil diameter: 0.75cm, bending length: 47.5cm

3. 0~6MΩ resistance and 20~40kHz frequency measurements

4. Large LCD display for clear reading

5. True RMS

6. Long press INRUSH key for 2~3s to measure inrush current

7. Data hold, backlight, auto power off

SpecificationsUT281E
AC current range (A)30A/300A/3000A, ±3%+5
AC current resolution (A)0.01A/0.1A/1A
AC current frequency response (Hz)45.00Hz~500.00Hz
AC voltage range (V)0.000V~600.0V, ±1.2%+3
Inrush current (A)80ms, Min 3.0A, display range: 0.5A~3000A
Risistance measurement (Ohm)0.000~6.000MΩ
Frequency measurement (Hz)20~40kHz
Auto/manual rangeManual
Clamp typeFlex jaw with clamp lock mechanism
Sampling rate3 times/s
Auto power offAfter 10-minute inactivity
Max displaydisplay "OL" after 3000 counts in Current test mode
display "OL" after 6000 counts in other modes
Key functionsPower on/off, data hold, backlight, inrush current selection, current range, frequency range
Features
Auto/manual rangeManual
Continuity buzzer
Low voltage displayLower than 3.8V
Data hold
Function selection (SELECT)
True RMS
Auto backlight
Working temperature0℃~50℃
2m drop proof
General Characteristics
PowerAAA 1.5V battery ×3
LCD size32×34mm (1.8 inch)
Product colorRed and grey
Product net weight250g
Product size350×190×55mm
Standard accessoriesBatteries
Standard individual packingGift box, English manual, blister
Standard quantity per carton8pcs
Standard carton measurement197×352×62mm
Standard carton gross weight10.3kg

UT281E True RMS Flex Clamp

UT281E can measure large currents in various harsh and hard to reach environments. It is designed with Rogowski flex coil and can test up to 3000A AC current. UT281E can also measure AC voltage up to 600V.

Main features

1. 2m drop proof, ETL/Intertek certified 3rd edition CE

2. Coil diameter: 0.75cm, bending length: 47.5cm

3. 0~6MΩ resistance and 20~40kHz frequency measurements

4. Large LCD display for clear reading

5. True RMS

6. Long press INRUSH key for 2~3s to measure inrush current

7. Data hold, backlight, auto power off

SpecificationsUT281E
AC current range (A)30A/300A/3000A, ±3%+5
AC current resolution (A)0.01A/0.1A/1A
AC current frequency response (Hz)45.00Hz~500.00Hz
AC voltage range (V)0.000V~600.0V, ±1.2%+3
Inrush current (A)80ms, Min 3.0A, display range: 0.5A~3000A
Risistance measurement (Ohm)0.000~6.000MΩ
Frequency measurement (Hz)20~40kHz
Auto/manual rangeManual
Clamp typeFlex jaw with clamp lock mechanism
Sampling rate3 times/s
Auto power offAfter 10-minute inactivity
Max displaydisplay "OL" after 3000 counts in Current test mode
display "OL" after 6000 counts in other modes
Key functionsPower on/off, data hold, backlight, inrush current selection, current range, frequency range
Features
Auto/manual rangeManual
Continuity buzzer
Low voltage displayLower than 3.8V
Data hold
Function selection (SELECT)
True RMS
Auto backlight
Working temperature0℃~50℃
2m drop proof
General Characteristics
PowerAAA 1.5V battery ×3
LCD size32×34mm (1.8 inch)
Product colorRed and grey
Product net weight250g
Product size350×190×55mm
Standard accessoriesBatteries
Standard individual packingGift box, English manual, blister
Standard quantity per carton8pcs
Standard carton measurement197×352×62mm
Standard carton gross weight10.3kg
Products specifications
Attribute nameAttribute value
ProducerUNI-T
Made inChina
device typePortable
Working temperature0℃~50℃
AC Current30A/300A/3000A, ±3%+5
FrequencyAC current frequency response (Hz) 45.00Hz~500.00Hz
AC voltage0.000V~600.0V, ±1.2%+3
Range of resistance measurements0.000~6.000MΩ
Frequency range measurement20~40kHz
Sampling rate3 times/s
Powered by1.5V AAA battery ×3
Dimensions325mm×180mm×30mm
Weight250g
