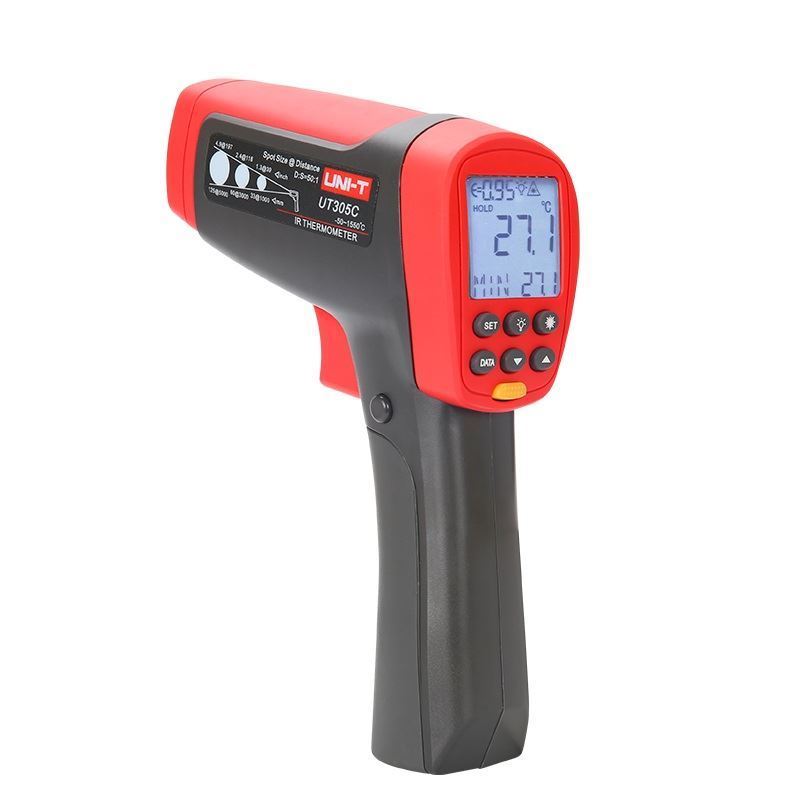

UT305C Infrared Thermometer
UT305 series infrared thermometers can measure temperature by laser or contact with k-type temperature probe. UT305 has a 50:1 D:S ratio, so it can measure long range temperature points of interest with great accuracy. UT305 also has 99 sets of data storage and USB data transmission. They are ideal tools for industrial quality inspection such as HVAC and electronics manufacturing.
Main features
1. K type temperature probe
2. 99 sets of data storage, USB interface, PC software
3. MAX/MIN/AVG/DIF modes
4. High/Low temperature limit setting with audible alarm
5. Adjustablemissivity 0.1~1.0
6. USB, battery, or power adapter
7. Tripod mount and continuous measurement mode
8. ℃/℉ selectable; auto power off
9. Adjustable LCD backlight
10. Optional (on/off) laser pointer
11. Low battery indication; data hold
| Specifications |
Range |
| Model |
UT305C |
| Temperature Range |
-50°C～1550°C |
| -58°F～2822°F |
| Accuracy |
±1.8°C or ±1.8% |
| Repeatability |
±0.5°C or ±0.5% |
| Resolution |
0.1 (When<10°C:0.2) |
| Distance to Spot Size |
50:1 |
| Response Time |
250ms (95% of reading) |
| Emissivity |
0.10～1.0 Adjustable |
| Laser Type |
Class 2 (Ⅱ) |
| Laser Power |
＜1mW |
| Laser Wavelength |
630nm～670nm |
| Spectral Response |
8μm～14μm |
| Features |
| °C/°F Selection |
√ |
| Laser Switch |
√ |
| Display Hold (s) |
8 seconds |
| Data Hold |
√ |
| Auto Power Off |
√ |
| Low Battery Indication |
√ |
| MAX Mode |
√ |
| MIN Mode |
√ |
| DIFF Mode |
√ |
| AVG Mode |
√ |
| Data Logging |
99 |
| USB Interface |
√ |
| High Alarm |
√ |
| Lower Alarm |
√ |
| LCD Backlight |
√ |
| Electricity Cut-off Memory |
√ |
| Tripod Mount |
√ |
| T-C Thermocouple Measurement |
√ |
| General Characteristics |
| Power |
USB or 9V Battery (6F22) or Power Adaptor |
| LCD Size |
33mm X 38mm |
| Product Color |
Red and grey |
| Product Net Weight |
320g |
| Product Size |
183mm X 147mm X 57mm |
| Standard Accessories |
Battery, USB Interface Cable, PC Software CD |
| Standard Individual Packing |
Gift Box, Tool Box, English Manual |
| Standard Quantity Per Carton |
5pcs |
| Standard Carton Measurement |
480mm X 372mm X 315mm (0.056 CBM Per Standard Carton) |
| Standard Carton Gross Weight |
11kg |
