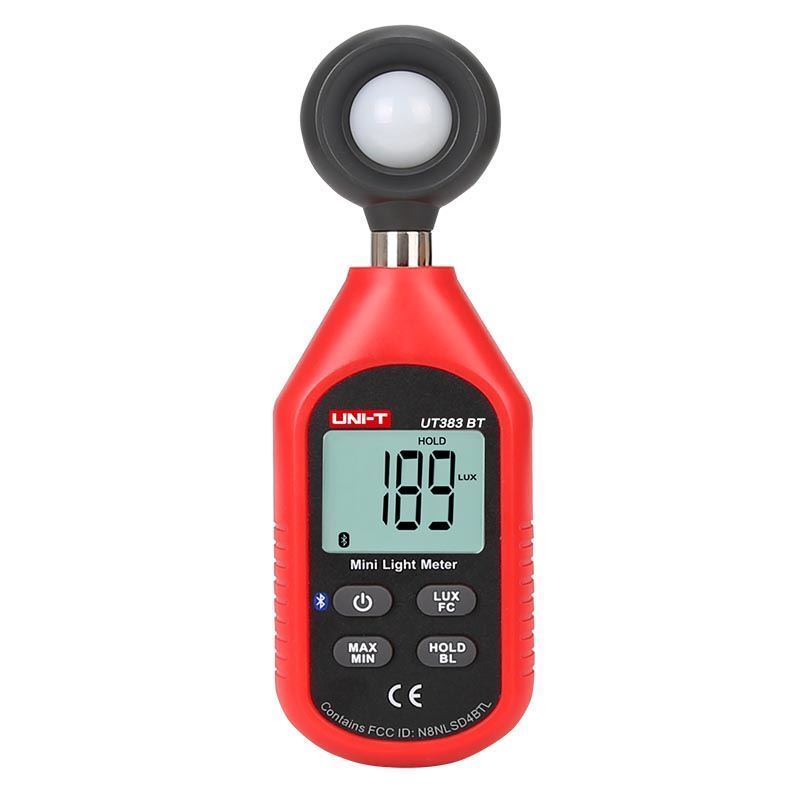

UT383BT Mini Light Meter
UT383BT can effectively measure light intensity and display results in units of Lux or FC on screen. It can transfer measurement data through Bluetooth to UNI-T’s custom mobile APP (iENV) for further analysis, storage, and export. iENV can be downloaded from Google Play, Apple Store or UNI-T’s website by searching ‘iENV’.
Main Features
1. Light weight, user friendly interface
2. Low power consumption
3. MAX/MIN modes, backlight, auto power off
4. Light source calibration to increase accuracy and consistency
| Functions |
Range |
Resolution |
Accuracy |
| Illuminance |
0~9999 Lux |
1 Lux |
±(4%+8) |
| ≥10000 Lux |
10 Lux |
±(5%+10) |
| ≥100000 Lux |
100 Lux |
±(5%+10) |
| Measurement range |
0~199,999 Lux; 0~19,999 Fc |
| Features |
| Sample rate |
|
|
2/s |
| Overload indication |
|
|
OL |
| MAX/MIN |
|
|
Yes |
| Data hold |
|
|
Yes |
| LCD backlight |
|
|
Yes |
| Auto power off |
|
|
5 minutes |
| Low battery indication |
|
|
3.0~3.5V |
| USB interface |
|
|
Yes |
| Tripod mount |
|
|
Yes |
| Full battery duration |
＞12hrs with Bluetooth function on |
| Working environment |
0~40℃ (≤80%RH)
40~50℃ (≤45%RH) |
| Storage environment |
-20~60℃ (≤75%RH) |
| General Characteristics |
| Battery |
1.5V (AAA) x3 |
| Product size |
163mmx55mmx28mm |
| Product weight |
118g |
