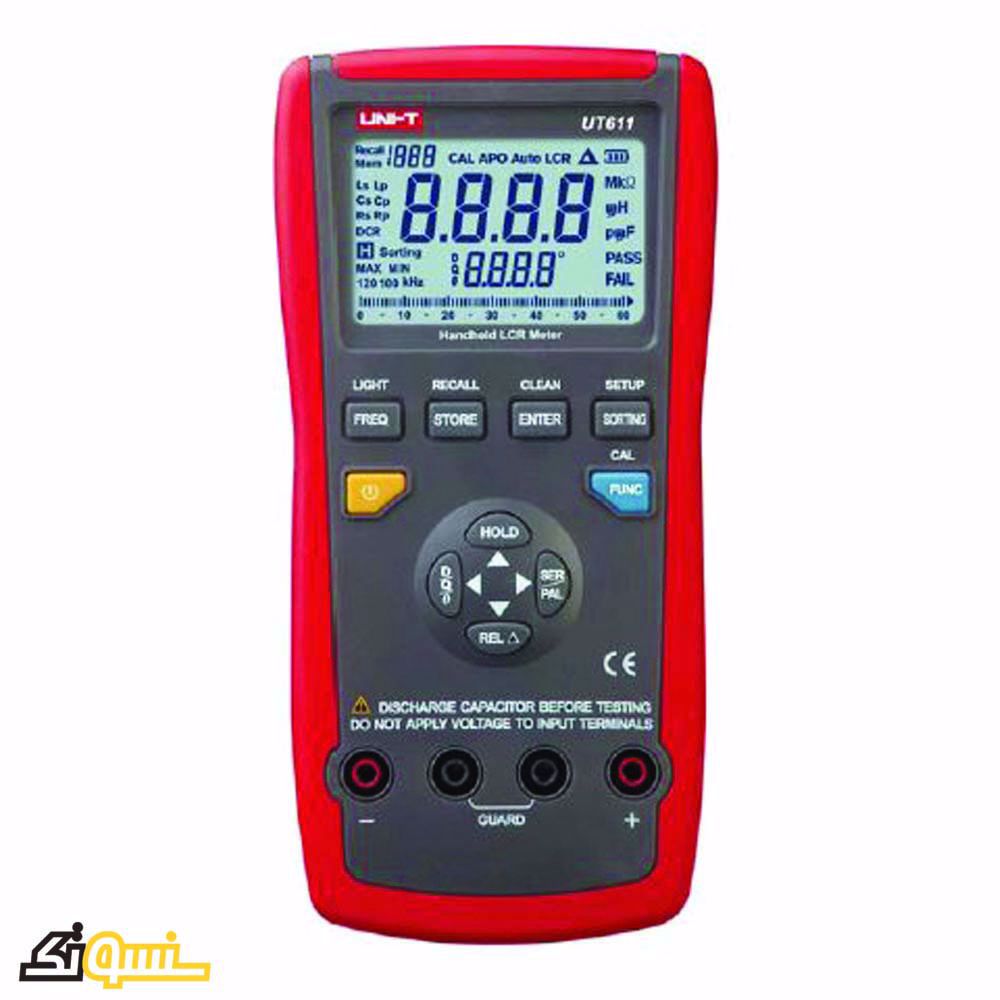

LCR Meter UNI-T UT611

Resistance:60 Ω ~ 20 MΩ
Capacitance:600 pF ~ 10 mF
Inductance:600 μH ~ 200 H
Availability: Out of stock
Manufacturer: Uni-Trend
ریال

UT610 series is a handheld LCR digitalelectric bridge meter with stable performance, safety, reliability and autorange.LCR Meter UNI-T UT611 is professional to measure inductance, capacitance and resistance. It has the features of low power dissipation, high accuracy and fast speed.

UT-611 Features:

Resistance:60 Ω ~ 20 MΩ

Capacitance:600 pF ~ 10 mF

Inductance:600 μH ~ 200 H

Auto Range

Real-Time Display of Test Frequency

Measurement Modes: Series/Parallel

Data Hold

Relative Mode

Data Storage up to 1000 records

Analogue Bar Graph

Comparsion Function

Calibration Function

Output Impedance of 120 Ω

LCD Backlight

Low Battery Indication

UT610 series is a handheld LCR digitalelectric bridge meter with stable performance, safety, reliability and autorange.LCR Meter UNI-T UT611 is professional to measure inductance, capacitance and resistance. It has the features of low power dissipation, high accuracy and fast speed.

UT-611 Features:

Resistance:60 Ω ~ 20 MΩ

Capacitance:600 pF ~ 10 mF

Inductance:600 μH ~ 200 H

Auto Range

Real-Time Display of Test Frequency

Measurement Modes: Series/Parallel

Data Hold

Relative Mode

Data Storage up to 1000 records

Analogue Bar Graph

Comparsion Function

Calibration Function

Output Impedance of 120 Ω

LCD Backlight

Low Battery Indication

Products specifications
Attribute name Attribute value
Producer UNI-T
Made in Taiwan
device type Portable
Range of resistance measurements 60Ω~20 MΩ
Capacitor Measuring Range 600pF~10 mF
The range of inductance measurement 600μH~200 H
Connect to computer USB
Powered by 9V Battery 6F22
Dimensions 96mm×193mm×47mm
Weight 374g
