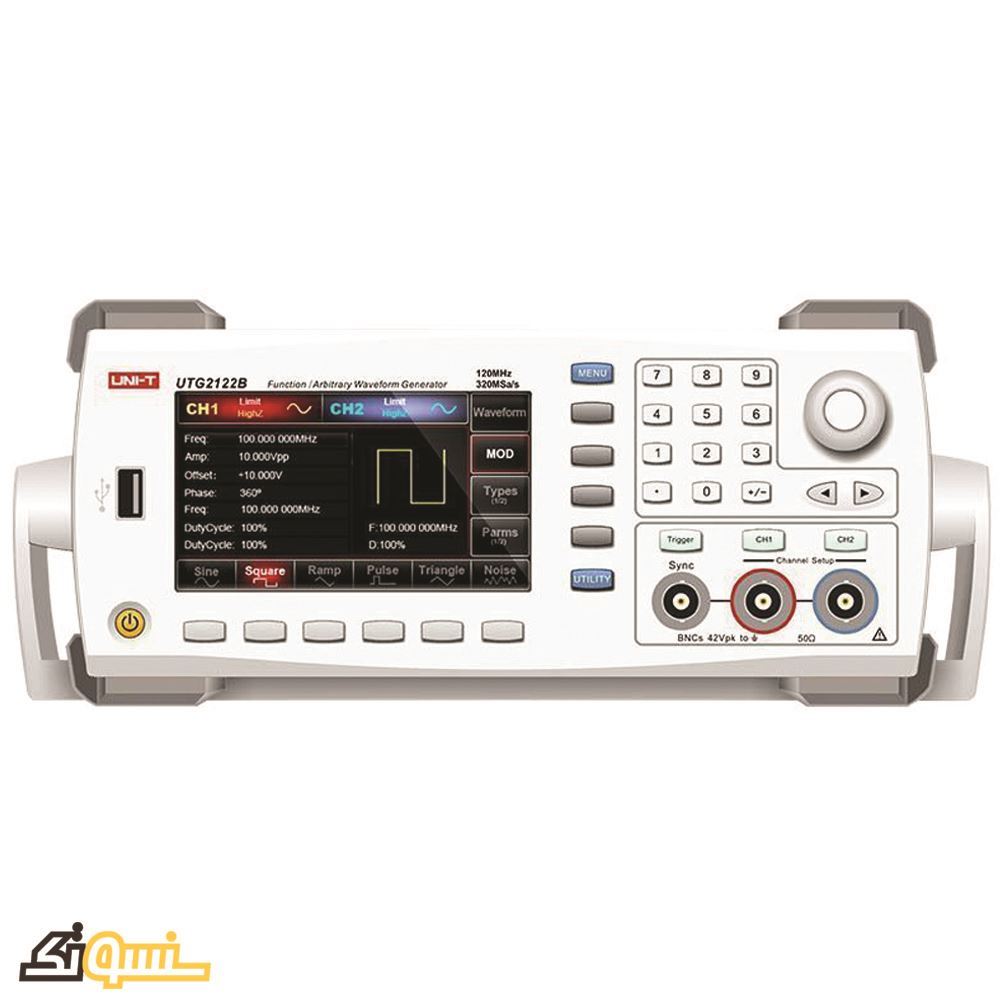

UTG2122B Waveform Generator

30MHz pulse waveform
120MHz sine waveform output
1μHz full-band resolution
320MSa/s sampling rate
2channels (A/B) of equivalent performance
Availability: Out of stock
Manufacturer: Uni-Trend
ریال

UTG2122B Function/Arbitrary Waveform Generator

UTG2122B can produce high precision, stable, pure and low distortion signals; provide high frequency square wave with quick rise and fall edges. Users can improve their working efficiency by using the multifunctional instrument of easy operated interface, competitive specifications and humanized graphical display.UTG2122B price is available in sensotech website.

features

1. Dual channels of equivalent performance, independent output

2. 320MSa/s sampling rate; 16 bits vertical resolution

3. 120MHz sine waveform output, 1μHz full-band resolution

4. 30MHz pulse waveform, adjustable rise/fall time

5. Max arbitrary waveform length of 8k/1M points; 161/48 nonvolatile waveforms storage

6. Modulations available: AM, FM, PM, ASK, FSK, PWM, PSK

7. 4.3-inch high resolution TFT LCD Display

8. USB Host, USB Device, LAN, 10MHz clock source input/output

UTG2122B Function/Arbitrary Waveform Generator

UTG2122B can produce high precision, stable, pure and low distortion signals; provide high frequency square wave with quick rise and fall edges. Users can improve their working efficiency by using the multifunctional instrument of easy operated interface, competitive specifications and humanized graphical display.UTG2122B price is available in sensotech website.

features

1. Dual channels of equivalent performance, independent output

2. 320MSa/s sampling rate; 16 bits vertical resolution

3. 120MHz sine waveform output, 1μHz full-band resolution

4. 30MHz pulse waveform, adjustable rise/fall time

5. Max arbitrary waveform length of 8k/1M points; 161/48 nonvolatile waveforms storage

6. Modulations available: AM, FM, PM, ASK, FSK, PWM, PSK

7. 4.3-inch high resolution TFT LCD Display

8. USB Host, USB Device, LAN, 10MHz clock source input/output

Products specifications
Attribute name Attribute value
Producer UNI-T
Made in Taiwan
device type Fixed and Wall Mount
Display screen 4.3 inches TFT LCD, WVGA (480×277)
Output Digital USB Host, USB Device, LAN, 10MHz clock source input, 10MHz clock source output
Sampling frequency 120MHz sine waveform output, 30MHz pulse waveform
Sampling rate 320MSa/s
Connect to computer USB
Incoming channels 2 channels (A/B) of equivalent performance
Power Less than 50W
Powered by 100 ~ 240VACrms, 50Hz/60Hz; 100 ~ 120Vrms (±10%), 400Hz
Working temperature +10℃ ~ +40℃
Working humidity +35℃ below:≤90% relative humidity +35℃~+40℃:≤60% relative humidity
Dimensions 265mm×110mm×320mm
Weight 3.2kg
