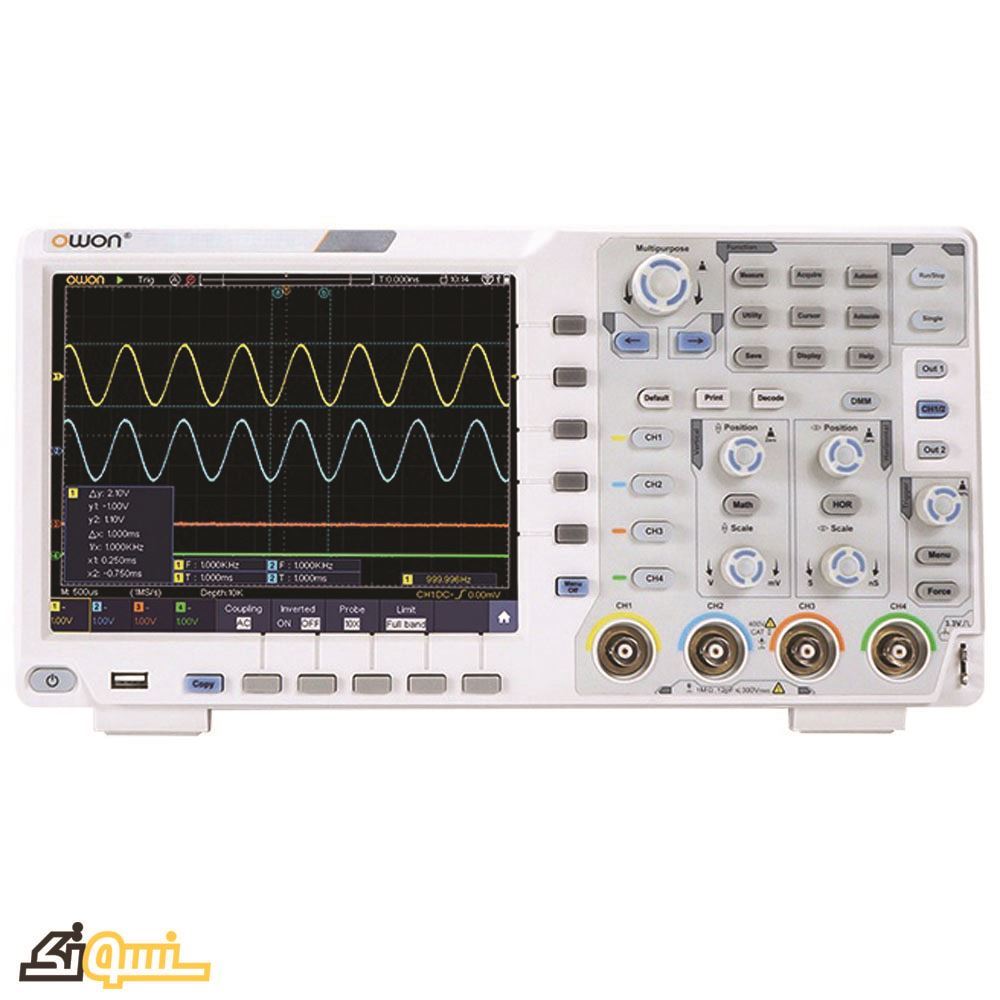

XDS 3104E+ AWG-VGA

Bandwidth :100MHZ Sample rate : 1GS/s Max. Input voltage:300 V (peak)
Availability: Out of stock
Manufacturer: OWON
$

The new digital storage oscilloscope XDS 3104E+ AWG-VGA offers reliably measurement technology at a really good price.OWON XDS3104E Multi-Function Oscilloscope is integrated with advanced trigger functions, Wi-Fi and App support.

Product Features:

100MHz Bandwidth, 1GS/s sample rate

8-bit high resolution ADC

40M record length 45,000 wfms/s waveform refresh rate

Low back ground noise

8 inches 800 x 600 high resolution multi-touch screen, for a better operation experience

SCPI, and LabVIEW supported

Multi- trigger, and serial bus decoding functions - I2C, SPI, RS232, CAN (optional)

Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN

Xvisual - The 3G Oscilloscope Technology Platform from OWON - a powerful n-in-1 on-site measurement station

The new digital storage oscilloscope XDS 3104E+ AWG-VGA offers reliably measurement technology at a really good price.OWON XDS3104E Multi-Function Oscilloscope is integrated with advanced trigger functions, Wi-Fi and App support.

Product Features:

100MHz Bandwidth, 1GS/s sample rate

8-bit high resolution ADC

40M record length 45,000 wfms/s waveform refresh rate

Low back ground noise

8 inches 800 x 600 high resolution multi-touch screen, for a better operation experience

SCPI, and LabVIEW supported

Multi- trigger, and serial bus decoding functions - I2C, SPI, RS232, CAN (optional)

Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN

Xvisual - The 3G Oscilloscope Technology Platform from OWON - a powerful n-in-1 on-site measurement station

Products specifications
Attribute nameAttribute value
ProducerOWON
Made inHong Kong
device typeFixed and Wall Mount
Input Voltage300 V (peak)
Display screen8" color LCD, 800 x 600 pixels display
memmory40 Mpts per channel
Powered by100 V - 240 V AC, 50/60 Hz, CAT II
Output DigitalUSB host, USB device, Trig Out (P/F), LAN, and VGA (optional)
Response time≤5.8 ns
Dimensions340 × 177 × 90 mm
Sampling frequency100MHz
Sampling rate1GS/s
Connect to computerUSB
Incoming channels4 Channels
Battery3.7V, 13200mA
Input impedance1MΩ ± 2%, in parallel with 15pF ± 5pF
