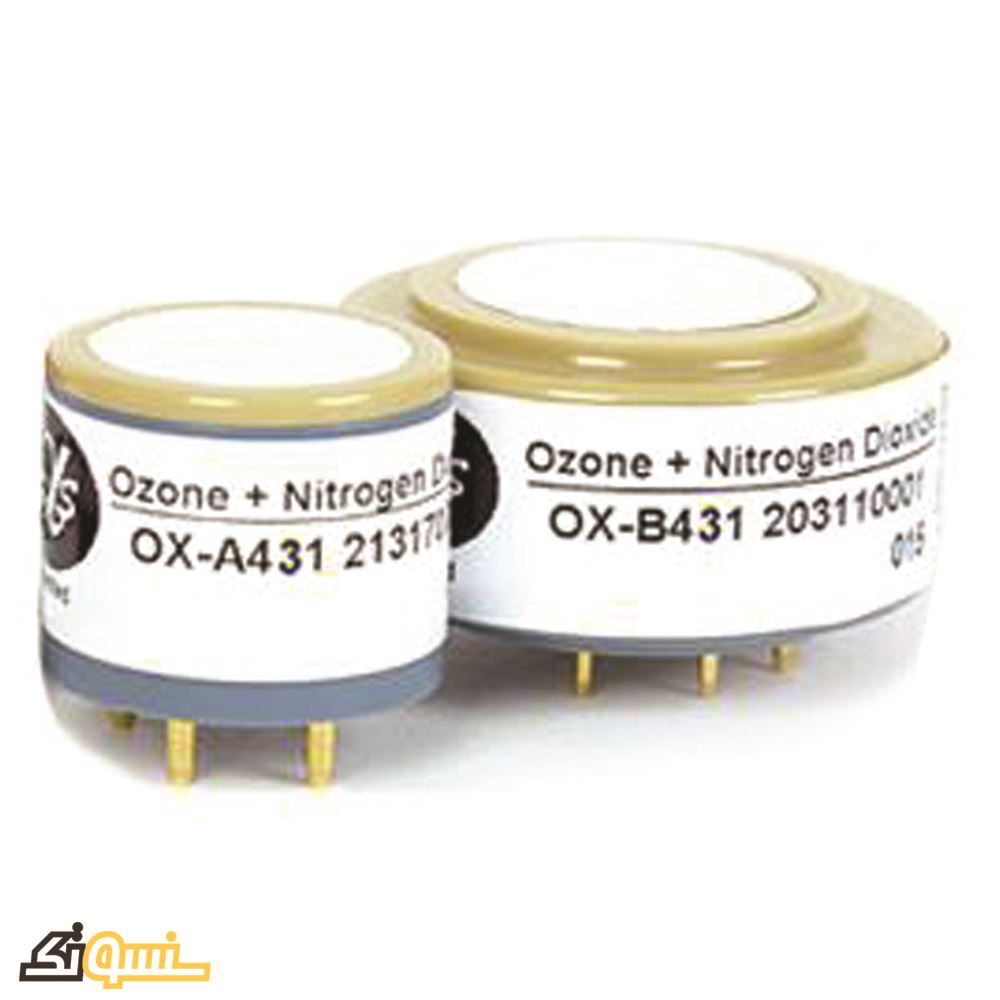

OX-A431 Ozone + Nitrogen Dioxide sensor

Range: 20 ppm O3 limit of performance warranty
Range: 20 ppm NO2 limit of performance warranty
Sensitivity: -200 to -650 nA/ppm at 1ppm O3
Sensitivity: -200 to -550 nA/ppm at 2ppm NO2
Availability: Out of stock
Manufacturer: alphasense
ریال

OX-A431 Oxidising Gas Sensor Ozone + Nitrogen Dioxide:

The OX-A431 detects both ozone and nitrogen dioxide (O3 +NO2). The NO2-A43F measures only nitrogen dioxide, filtering out ozone. Using these sensors together allows you to calculate the O3 concentration by subtracting the corrected NO2-A43F concentration from the corrected OX-A431 concentration.OX-A431 O3 Sensor + NO2 Sensor price is available in sensotec website.

Specifications:

Range: 20 ppm O3 limit of performance warranty
Range: 20 ppm NO2 limit of performance warranty
Sensitivity: -200 to -650 nA/ppm at 1ppm O3
Sensitivity: -200 to -550 nA/ppm at 2ppm NO2
Response time t90: < 45 (s) from zero to 1ppm O3
Response time t90: < 45 (s) from zero to 1ppm NO2
Temperature range: -30 to 40 ℃
Pressure range: 80 to 120 kPa
Humidity range: 15 to 85 % rh continuous

Storage period 6 months

Load resistor:33 to 100 ohm

Weight < 6g

OX-A431 Oxidising Gas Sensor Ozone + Nitrogen Dioxide:

The OX-A431 detects both ozone and nitrogen dioxide (O3 +NO2). The NO2-A43F measures only nitrogen dioxide, filtering out ozone. Using these sensors together allows you to calculate the O3 concentration by subtracting the corrected NO2-A43F concentration from the corrected OX-A431 concentration.OX-A431 O3 Sensor + NO2 Sensor price is available in sensotec website.

Specifications:

Range: 20 ppm O3 limit of performance warranty
Range: 20 ppm NO2 limit of performance warranty
Sensitivity: -200 to -650 nA/ppm at 1ppm O3
Sensitivity: -200 to -550 nA/ppm at 2ppm NO2
Response time t90: < 45 (s) from zero to 1ppm O3
Response time t90: < 45 (s) from zero to 1ppm NO2
Temperature range: -30 to 40 ℃
Pressure range: 80 to 120 kPa
Humidity range: 15 to 85 % rh continuous

Storage period 6 months

Load resistor:33 to 100 ohm

Weight < 6g

Products specifications
Attribute name Attribute value
Producer alphasense
Made in England
device type Sensor
Sensor Type O3
Sensor Type NO2
Gas Measurement Range 20 ppm O3/NO2 limit of performance warranty
Response time < 45 (s) from zero to 1ppm NO2/O3
Working temperature -30 to 40 ℃
Working humidity 15 to 85 % rh
گارانتی two-year
Weight < 6g
