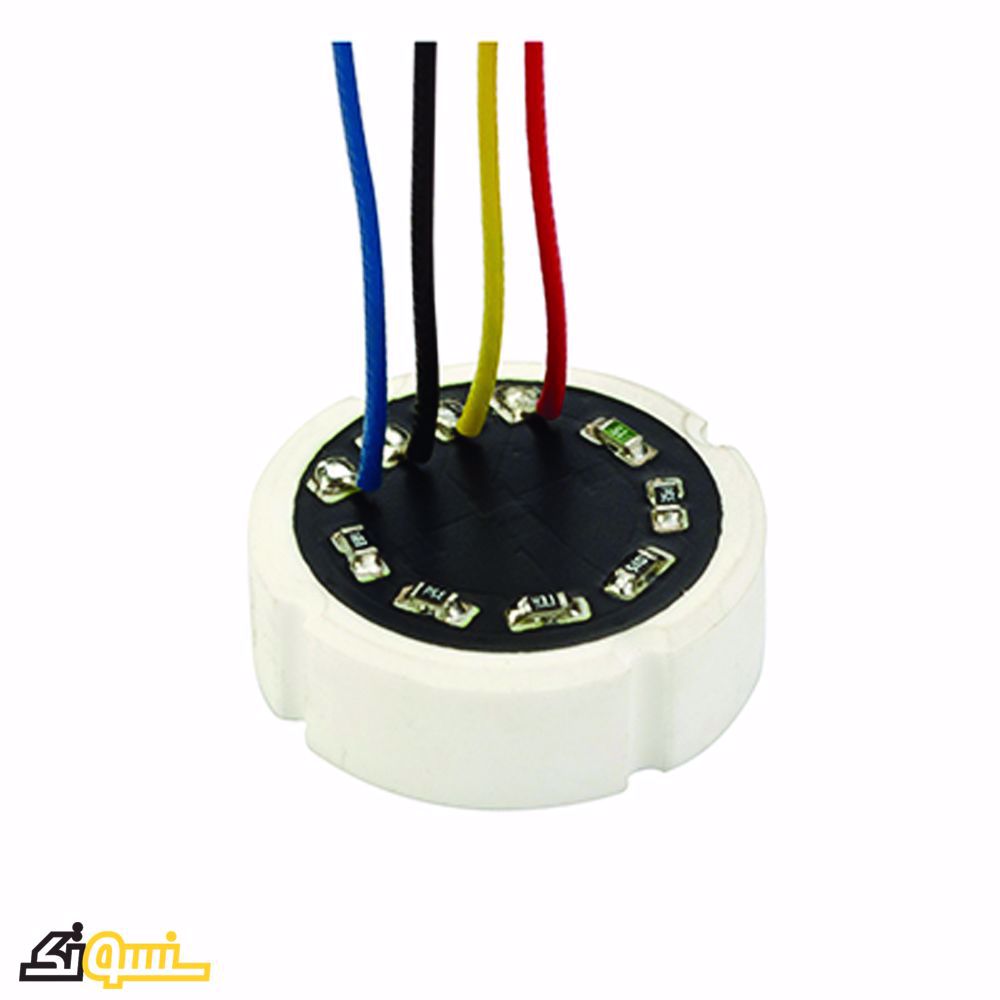

PS100 series pressure sensor

Pressure Range:0...2bar to 400bar
Availability: Out of stock
Manufacturer: sendo
ریال

PS100 series piezoresistive ceramic pressure sensors are based on ceramic.PS100 series ceramic thick film pressure sensor have 18 mm diameter and 6.35 mm thickness, cover the 2~400bar range.

Specifications:

Pressure Ranges:0...2bar to 400bar(gauge only)

Power Supply:3...30Vdc, typically 5Vdc

Output Signals:mV signal

operating temperature up to 125ºC

18 mm diameter and 6.35 mm thickness

PS100 series piezoresistive ceramic pressure sensors are based on ceramic.PS100 series ceramic thick film pressure sensor have 18 mm diameter and 6.35 mm thickness, cover the 2~400bar range.

Specifications:

Pressure Ranges:0...2bar to 400bar(gauge only)

Power Supply:3...30Vdc, typically 5Vdc

Output Signals:mV signal

operating temperature up to 125ºC

18 mm diameter and 6.35 mm thickness

Products specifications
Attribute name Attribute value
Producer sendo
Made in China
device type Sensor
Sensor Type Pressure
Pressure Measurement range 0-400bar
قطر خارجی 18mm
Working temperature up to 125ºC
