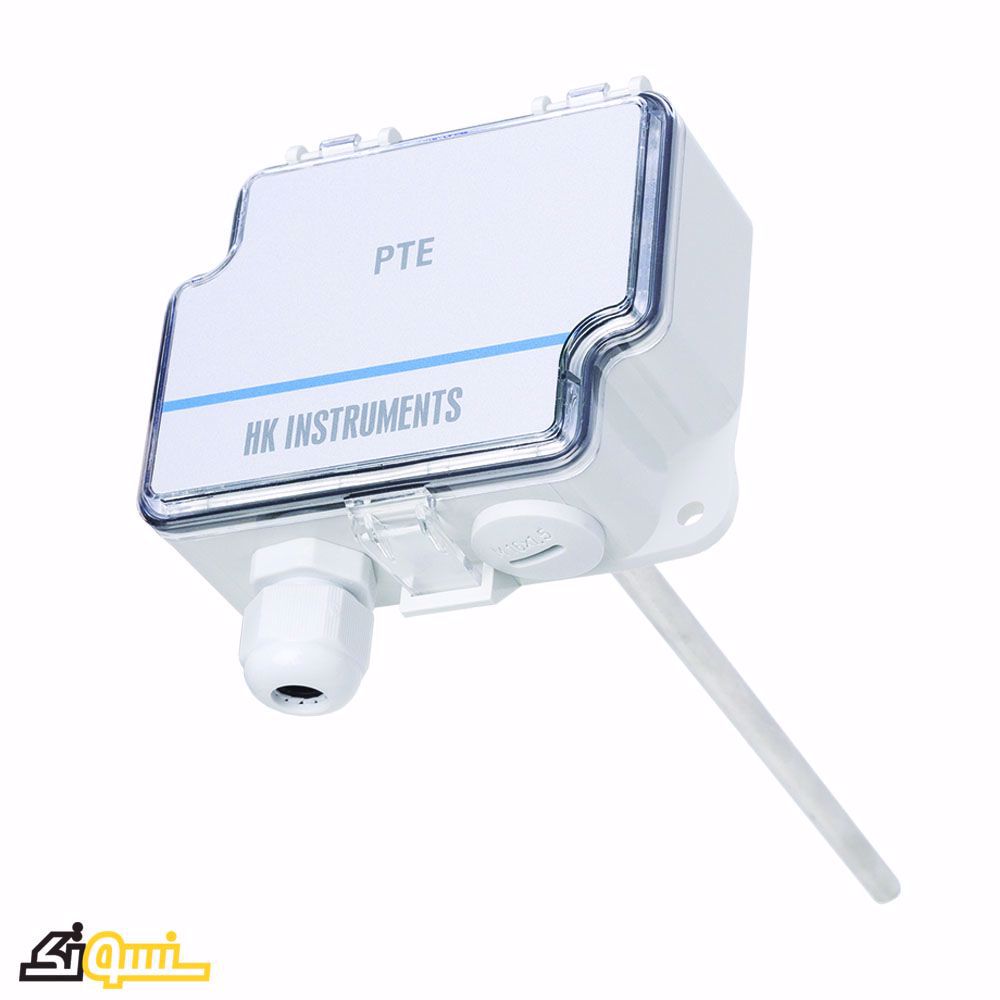

PTE-Duct temperature sensor

Accuracy:
NTC10k ± 0.25 °C
NTC20k ± 0.25 °C
Pt1000 ± 0.3°C
Ni1000 ± 0.4 °C
Availability: Out of stock
Manufacturer: HK INSTRUMENTS
ریال

PTE-Duct is a passive temperature sensor engineered for HVAC applications. PTE-Duct is used to sense air temperature inside a ventilation duct. The temperature sensor is housed inside a stainless steel tube that protects it from the environment and condensation, ensuring long service life.

PTE-Duct is available with the following sensor types:

• NTC10k
• NTC20k
• Pt1000
• Ni1000
• Ni1000-LG

Operating temperature:-50-100 °C

Sensor tube length:190mm

Sensor tube outer diameter:7mm

Protection class:IP54

PTE-Duct is a passive temperature sensor engineered for HVAC applications. PTE-Duct is used to sense air temperature inside a ventilation duct. The temperature sensor is housed inside a stainless steel tube that protects it from the environment and condensation, ensuring long service life.

PTE-Duct is available with the following sensor types:

• NTC10k
• NTC20k
• Pt1000
• Ni1000
• Ni1000-LG

Operating temperature:-50-100 °C

Sensor tube length:190mm

Sensor tube outer diameter:7mm

Protection class:IP54

Products specifications
Attribute name Attribute value
Producer HK INSTRUMENTS
Made in Finland
device type Sensor
Sensor Type Temperature
Working temperature -50-+100 °C
درجه حفاظت(Ip) IP54
