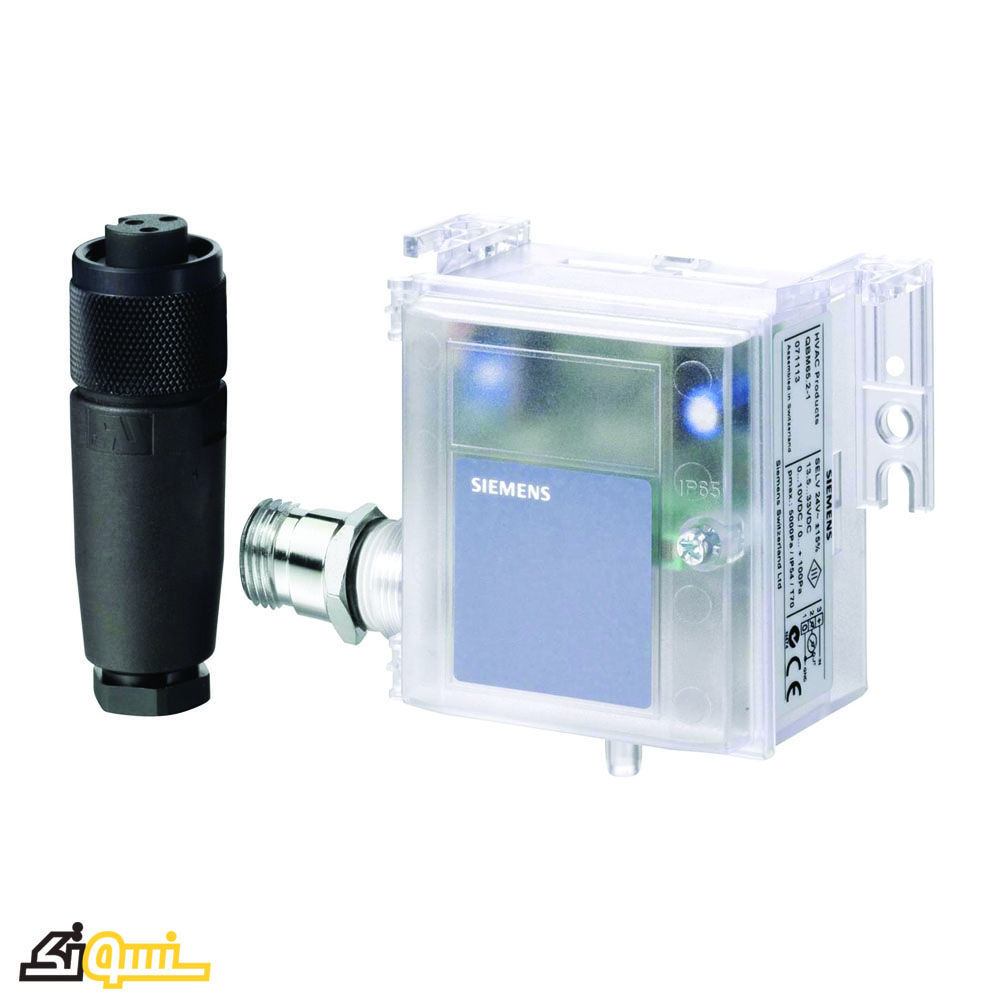

Differential pressure sensor QBM4000

QBM4000 different models:
QBM4000-1,QBM4000-3,QBM4000-10,QBM4000-25
Availability: Out of stock
Manufacturer: Siemens
ریال

Differential pressure sensor QBM4000... for air and non-aggressive gases, with calibration certificate.

QBM4000 Features:

Calibration certificate from the factory
High degree of measuring accuracy
Pressure-linear characteristic curve
Operating voltage AC 24 V / DC 13.5…33 V
Output signal DC 0...10 V
Simple and fast mounting thanks to integrated fixing angle bar in the housing
Calibrated and temperature-compensated measuring signal
Excellent long-term response
Supplied with connection set
Very short reaction time
Display indicates the present differential pressure

Differential pressure sensor QBM4000... for air and non-aggressive gases, with calibration certificate.

QBM4000 Features:

Calibration certificate from the factory
High degree of measuring accuracy
Pressure-linear characteristic curve
Operating voltage AC 24 V / DC 13.5…33 V
Output signal DC 0...10 V
Simple and fast mounting thanks to integrated fixing angle bar in the housing
Calibrated and temperature-compensated measuring signal
Excellent long-term response
Supplied with connection set
Very short reaction time
Display indicates the present differential pressure

Products specifications
Attribute name Attribute value
Producer SIEMENS
Made in آلمان
device type Sensor
Sensor Type Air pressure difference
Pressure Measurement range QBM4000-25:0-2500Pa
